Portable Port Expander

The Point 510/Point 1600 portable port expander is best suited for mobile computing
tasks when a quick and temporary connection to peripheral computer equipment is
needed and the pen tablet alone does not provide the necessary connectivity.
The portable port expander provides the following interfaces for connection to
peripheral computer equipment:
• Serial port A
• Serial port B
• PS/2-style mouse/keyboard port (This port can only be used with a mouse on the
Point 510; on the Point 1600, it can be used either with a mouse or a keyboard).
• Parallel port
• Floppy disk drive port
• Video port
1-2 Getting Started

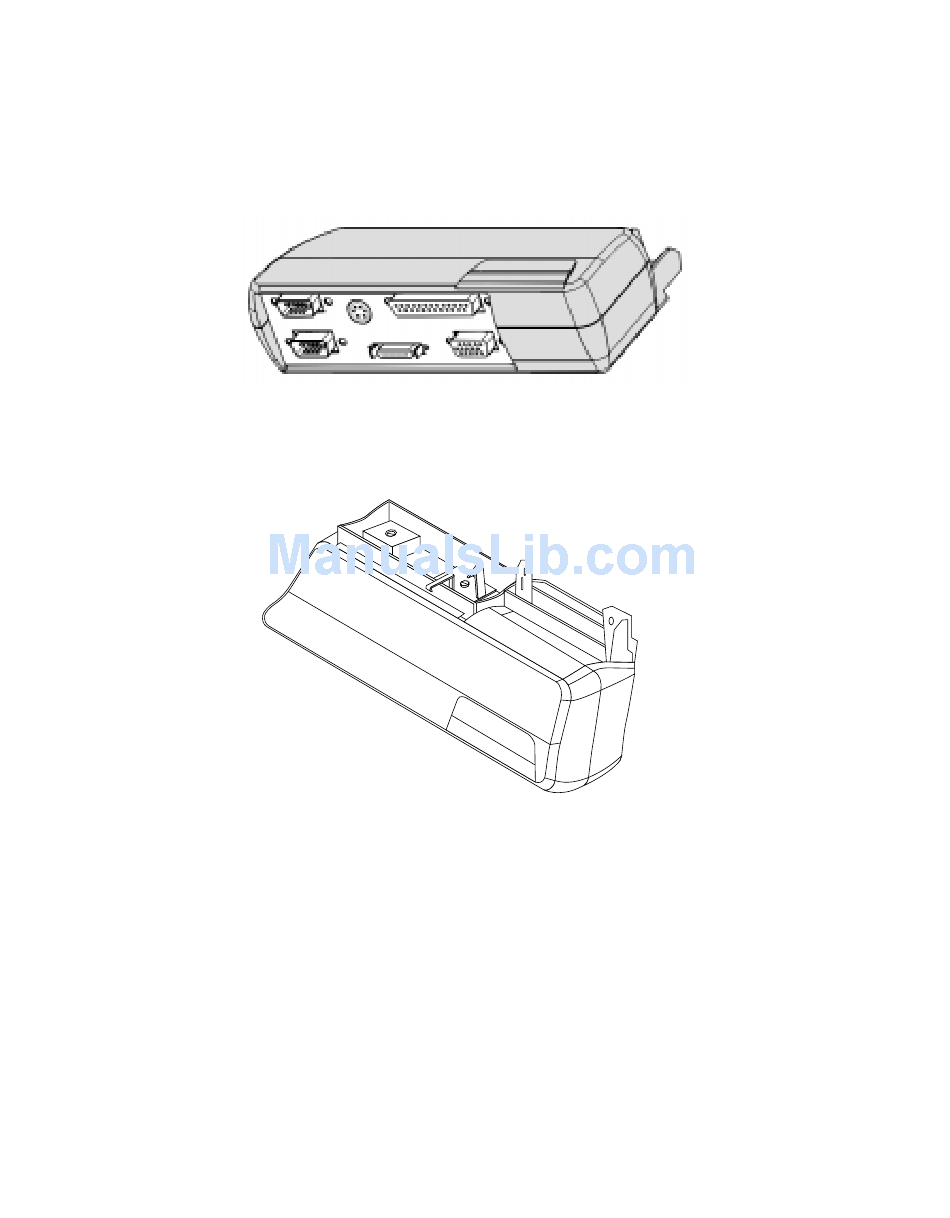

Figure 1-1. Portable Port Expander - Bottom View
Figure 1-2. Portable Port Expander - Top View
