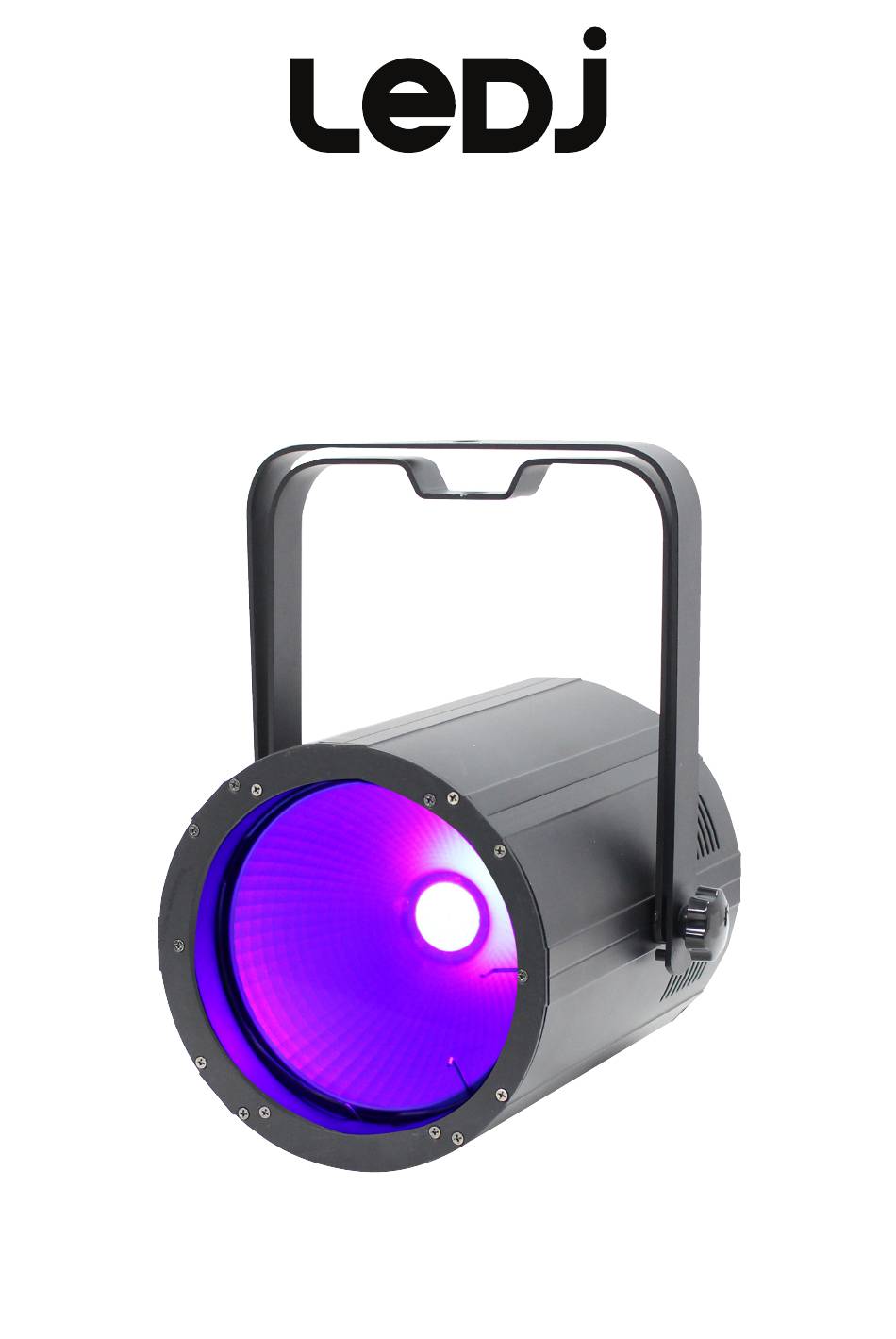

- Page 1 100W UV COB Flood User Manual Order code: LEDJ187...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! IMPORTANT:... - Page 3 • Beam angle: 80° native, 25°, 40° and 50° beam reduction • 4 push button menu with LED lenses supplied display • Ultra violet wavelength: 400nm • PowerCON input/output • 1.1kHz refresh rate • 3-Pin XLR input/output • DMX channels: 1 or 2 selectable • Fan cooled • Static and sound active modes • 0-100% dimming and variable strobe Specifications 100W UV COB Flood Power consumption 105W Power supply 100~240V, 50/60Hz Fuse T2A 250V Dimensions 310 x 257 x 245mm Weight 3.6kg Order code LEDJ187 257mm 245mm www.prolight.co.uk 100W UV COB Flood User Manual...
-
Page 4: Technical Specifications
Technical specifications MENU ENTER DOWN 100W UV COB Flood www.prolight.co.uk DMX INPUT DMX OUTPUT FUSE: T2A 250V POWER INPUT: POWER OUTPUT: 100-240V~50/60Hz 100-240V~50/60Hz In the box: 1 x fixture, 01 - Earth point 1 x 25° beam reduction lens, 02 - Safety eye 07 - PowerCON input 1 x 40° beam reduction lens, 03 - LED display 08 - PowerCON output 1 x 50°... - Page 5 Operating instructions C h 0 1 d. 0 0 1 DMX address/ d. 0 0 1 channel setting d. 5 1 2 C h 0 2 S L A u Slave mode U. 0 0 0 F 5. 0 0 Manual dimming U.
-
Page 6: Master/Slave Mode
Operating instructions DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. d. 0 01 To access the DMX address mode, press the “MENU” button on the rear of the unit to show on the LED display. Now use the “UP” and “DOWN” buttons to set the required DMX address. Press the “ENTER” button to confirm the setting. The DMX channel mode will now be displayed, use the “UP” and “DOWN” buttons on the rear of the unit to select either 1 or 2 DMX channel mode. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. 1 channel mode: Channel Value Function 000-255 Master dimmer (0-100%) 2 channel mode: Channel Value Function 000-255 Master dimmer (0-100%) 000-015 No function 016-255 Strobe (slow-fast) Master/slave mode: To set the master unit, press the “MENU” button on the rear of the master unit then select your desired program (sound active or dimmer modes). To set the other units in slave mode, press the “MENU”... - Page 7 Operating instructions Sound active: SJ-5 To access the sound active mode, press the “MENU” button until the display shows on the LED display. Use the “UP” and “DOWN” buttons to select the required sound sensitivity from SJ-1 SJ-8 . Press the “ENTER” button to confirm the setting. Value: 1 - 8 (1 = low sensitivity, 8 = high sensitivity) To exit out of any of the above options, press the “MENU” button. Display backlight: To access the display backlight setting, press the “MENU” button until the display shows on the doff LED display. Use the “UP” and “DOWN” buttons to select either (display backlight on) ~ (display backlight off). Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Display inverse: To access the display inverse setting, press the “MENU” button until the display shows on the Stnd LED display. Press the “ENTER”...
-
Page 8: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 511. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. -
Page 9: Line Termination
DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interference. It is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL90, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion. -
Page 10: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk 100W UV COB Flood User Manual... - Page 11 www.prolight.co.uk 100W UV COB Flood User Manual...
