Libretto Mini RGBW Zoom
User Manual
Order code: LEDJ605

Advertisement

loading
Need help?

Need help?

Do you have a question about the Libretto Mini RGBW Zoom and is the answer not in the manual?

Questions and answers

Related Manuals for Ledj Libretto Mini RGBW Zoom

Summary of Contents for Ledj Libretto Mini RGBW Zoom

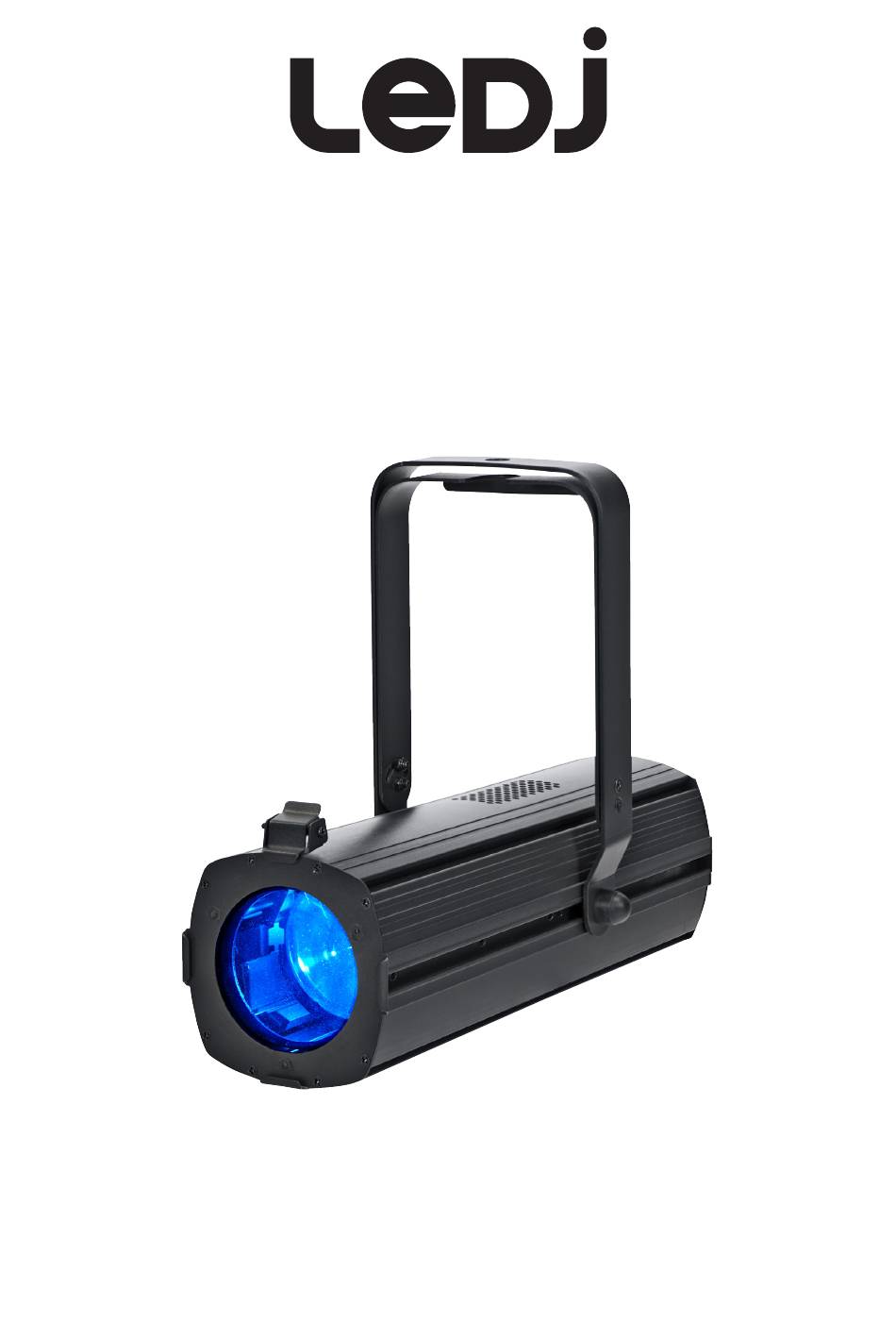

  • Page 1 Libretto Mini RGBW Zoom User Manual Order code: LEDJ605...

  • Page 2: Safety Advice

    Please note: These fixtures are intended for stage lighting and entertainment applications only, and are not intended for extended periods of use, including but not limited to house-light, industrial or architectural applications and should only be operated with short duty cycles. www.prolight.co.uk Libretto Mini RGBW Zoom User Manual...
  • Page 3 3700 Specifications Libretto Mini RGBW Zoom 1212 Power consumption 1776 Power supply 100~240V, 50/60Hz Fuse T1A 250V Dimensions 267 x 164 x 372mm 4° 25° Weight 2.6kg Order code LEDJ605 164mm 372mm 344mm www.prolight.co.uk Libretto Mini RGBW Zoom User Manual...

  • Page 4: Technical Specifications

    09 - Fuse T1A 250V In the box: 1 x fixture & 05 - PowerTwist TR1 Output 10 - Hanging bracket 1 x power cable 06 - 5-Pin DMX input 11 - Rear positioning handle www.prolight.co.uk Libretto Mini RGBW Zoom User Manual...

  • Page 5: Installation

    2. Mount the fixture onto your truss system via the clamp and tighten to ensure secure. 3. Pull the safety cable through the safety cable holes located on the top/rear of the fixture and around the truss. www.prolight.co.uk Libretto Mini RGBW Zoom User Manual...
  • Page 6 The OLED control panel situated on the front of the fixture allows the user to access the menu system to adjust the fixtures settings. When the unit has been powered on the display will show “Libretto Mini RGBW Zoom”. The fixture will then return to its home screen.
  • Page 7 Dimming Speed Setting Halogen 125-255 Green 125-255 White Balance White Balance Setting Blue 125-255 White 125-255 Display Inverse Display Inverse Setting Display Settings Backlight Auto Off Backlight Setting 0-30 (10) Backlight Intensity Display Brightness Setting www.prolight.co.uk Libretto Mini RGBW Zoom User Manual...
  • Page 8 7. Zoom 000-255 Fixture Use Time Fixture Run Time Fixture Information Firmware Version CPU-A V x.x B x.x Fixture Firmware Version Reset Functions Zoom Reset Functions Special Functions Factory Settings Default Factory Settings www.prolight.co.uk Libretto Mini RGBW Zoom User Manual...

  • Page 9: Dmx Channel Modes

    Colour Macro 22 089-092 Colour Macro 23 093-096 Colour Macro 24 097-100 Colour Macro 25 101-104 Colour Macro 26 105-108 Colour Macro 27 109-112 Colour Macro 28 113-116 Colour Macro 29 117-120 Colour Macro 30 www.prolight.co.uk Libretto Mini RGBW Zoom User Manual...
  • Page 10 Colour Macro 56 225-228 Colour Macro 57 229-232 Colour Macro 58 233-236 Colour Macro 59 237-240 Colour Macro 60 241-244 Colour Macro 61 245-248 Colour Macro 62 249-252 Colour Macro 63 253-255 Colour Macro 64 www.prolight.co.uk Libretto Mini RGBW Zoom User Manual...
  • Page 11 Show 2 051-075 Show 3 076-100 Show 4 101-125 Show 5 126-150 Show 6 151-175 Show 7 176-200 Show 8 201-225 Show 9 226-255 Sound 251-255 Show cycle (1-9) 000-255 Show speed (slow-fast) www.prolight.co.uk Libretto Mini RGBW Zoom User Manual...

  • Page 12: Dmx Setup

    Further DMX cables can be purchased from all good sound and lighting suppliers or Prolight Concepts dealers. Please quote: 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Libretto Mini RGBW Zoom User Manual...

  • Page 13: Line Termination

    3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Libretto Mini RGBW Zoom User Manual...

  • Page 14: Power Linking

    SAFETY POWER POWER CONSUMPTION: 66W CONSUMPTION: 66W DMX INPUT DMX INPUT POWER INPUT POWER OUTPUT POWER INPUT POWER OUTPUT 100-240V 100-240V~7A 100-240V 100-240V~7A 50/60Hz 50/60Hz 50/60Hz 50/60Hz ta..40°C ta..40°C DMX OUTPUT DMX OUTPUT www.prolight.co.uk Libretto Mini RGBW Zoom User Manual...

  • Page 15: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Libretto Mini RGBW Zoom User Manual...
