6.
Remove the dummy transducer block from the first mounting block and install it into the second mounting block.

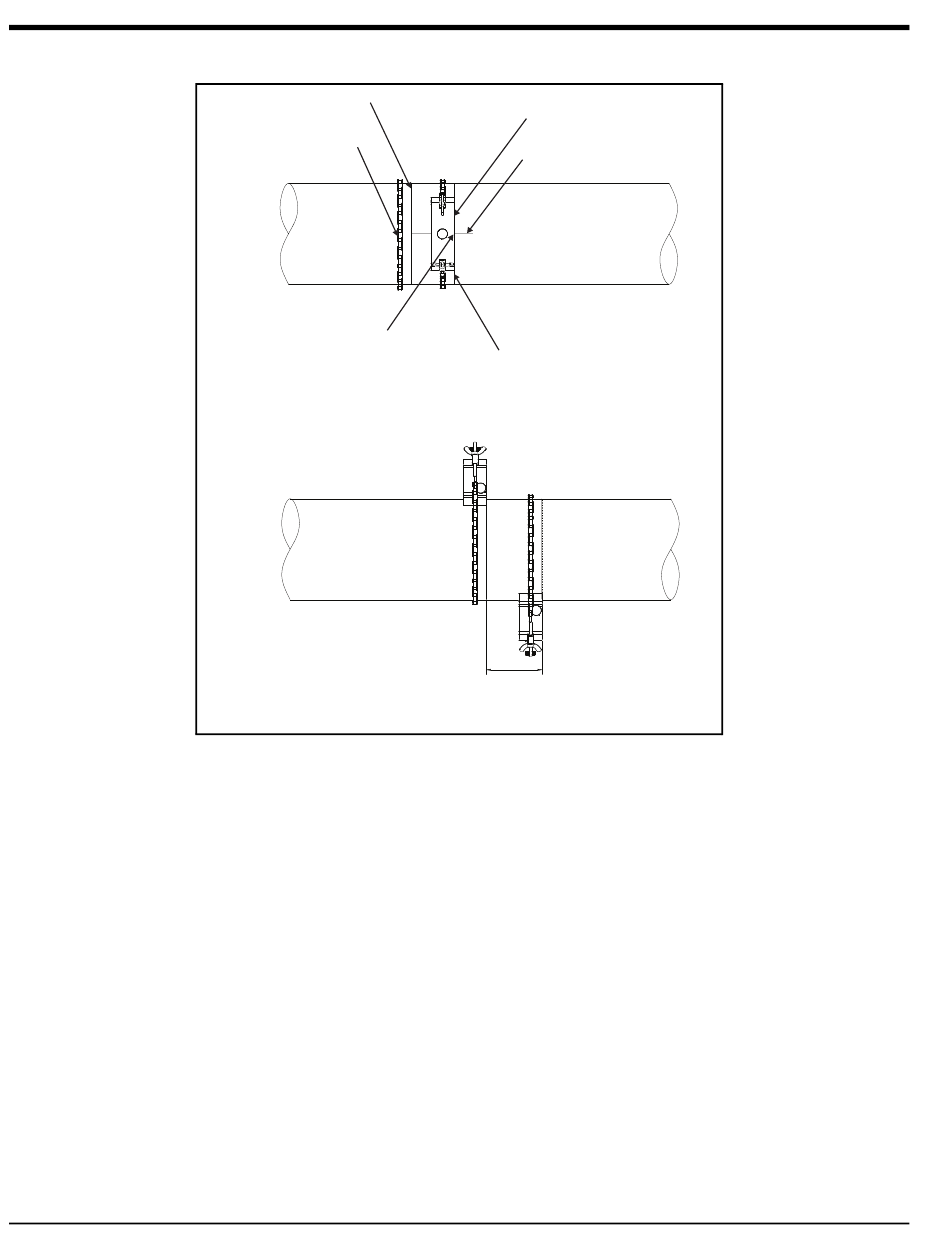

Insert the dummy block into the mounting block so the front edge of the dummy block lines up with the
circumferential line as shown below.
32
First Circumferential Line
Chain from First
Mounting Block
Transducer Spacing Point
Same (Right) Edge of Block
Origin Line
Second Circumferential Line
Side View
(on opposite side of pipe)
Spacing
(right edge to right edge)
Top View
Model C-RL Installation Guide
