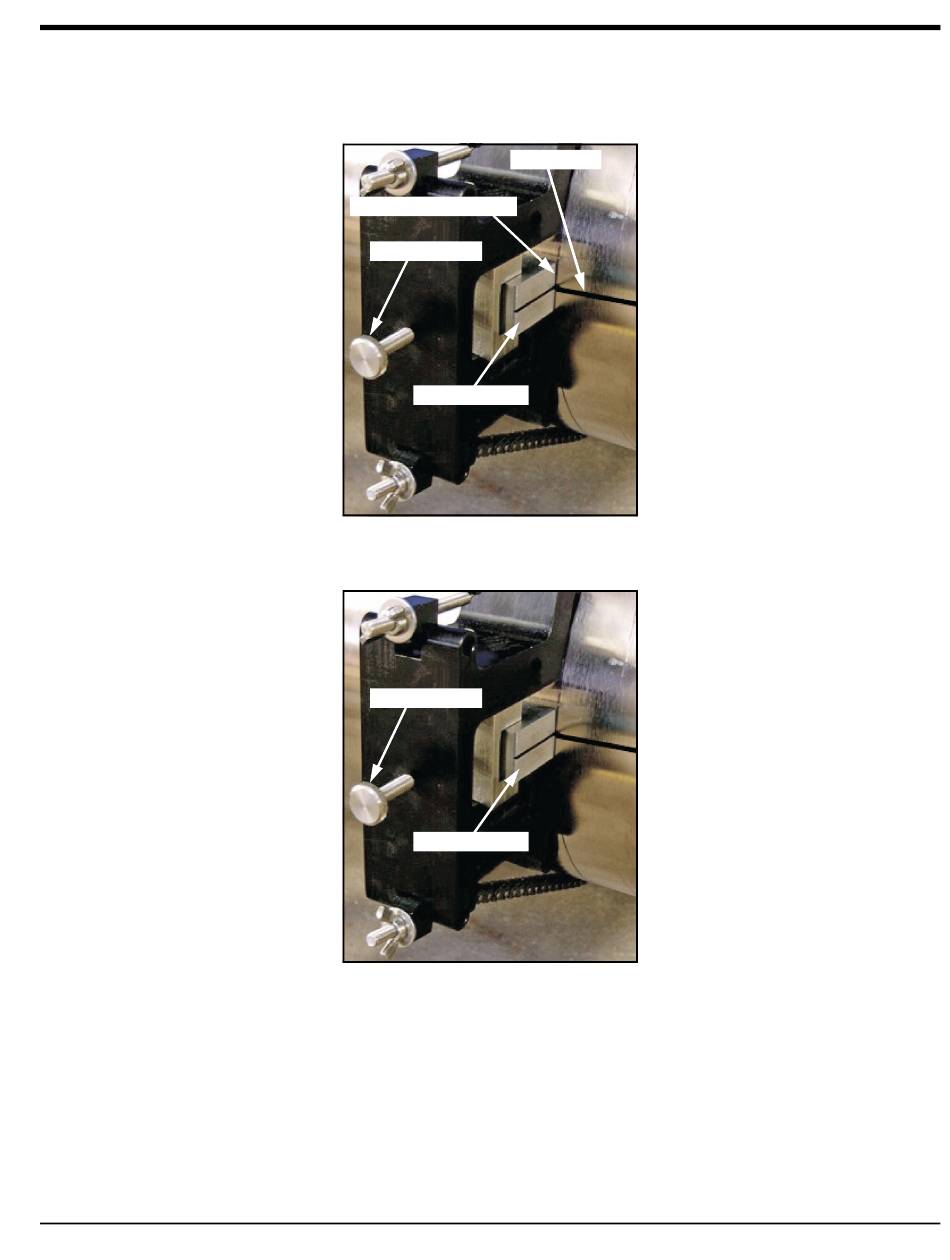

5. A "dummy" transducer block is shipped with the PI fixture to ensure that the mounting blocks are properly aligned
on the pipe. Insert the dummy transducer block into the mounting block so that the front edge of the dummy
transducer block lines up with the circumferential line as shown below.
6. Use the pressure bolt to secure the dummy transducer block in place. Hand-tighten the bolt just enough to hold
the block in place. Do not overtighten the block or the holder will be forced away from the pipe surface.
7. Adjust the mounting block so the indicator line on the dummy transducer block lines up with the origin line on the
pipe. Also, make sure the front edge of the mounting block is still lined up with the circumferential line on the pipe.
After the mounting block is properly aligned, tighten the chain or strap to secure the block in place.
Model C-RL Installation Guide
Origin Line
Circumferential Line
Pressure Bolt
Dummy Block
Pressure Bolt
Dummy Block
