Panametrics C-RL Instruction Manual page 38

4.5.6 Installing the Second Transducer Mounting Block
1.
On the opposite side of the pipe from the first transducer location, mark the transducer spacing point (see
"Obtaining the Transducer Spacing" on page 6 ) on the origin line. To do this, measure from the zero point on the
origin line and mark the transducer spacing point with a crosshair.
2.
Using the layout tape, make a second circumferential line around the entire pipe at the second transducer
spacing mark.
30

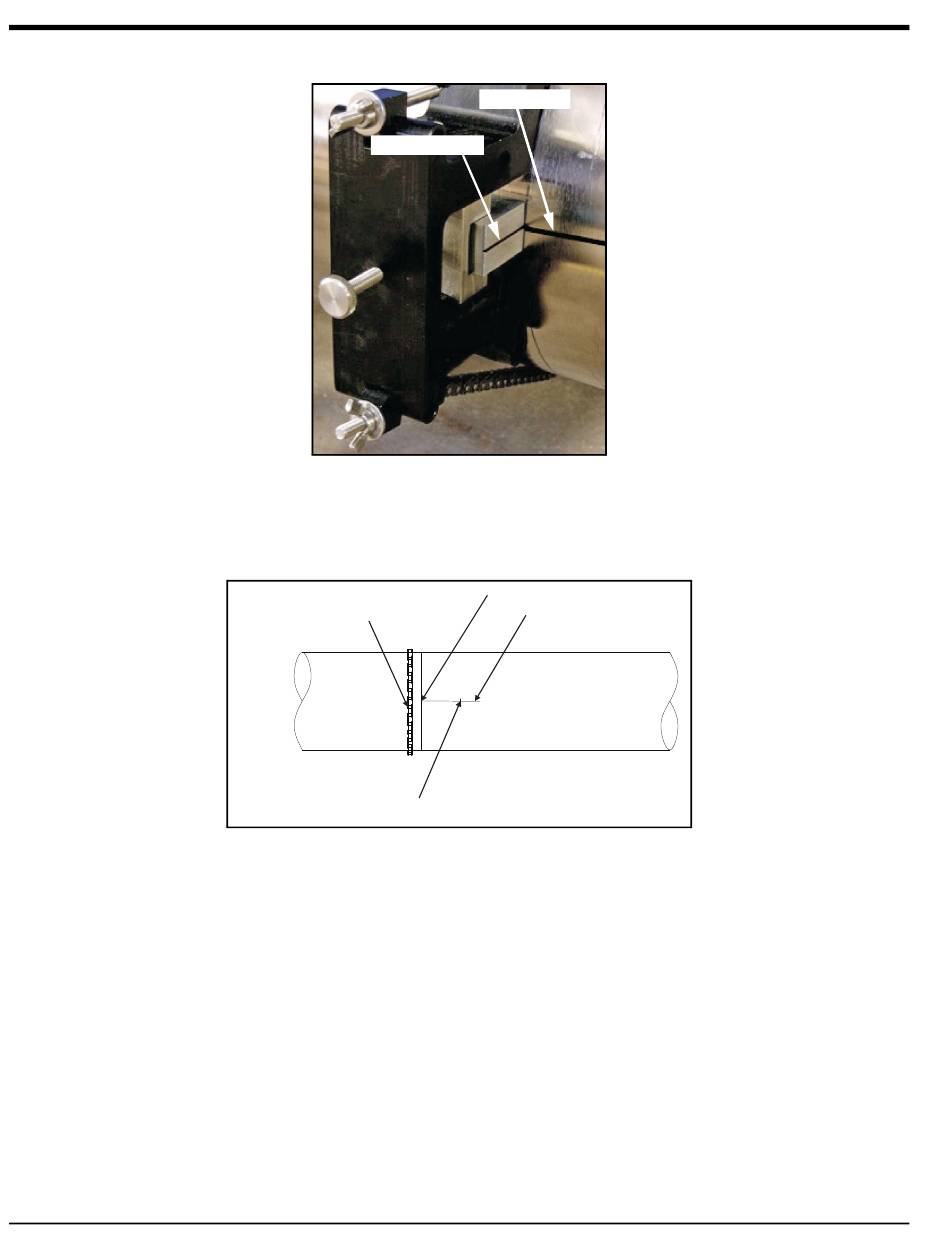

Indicator Line
Chain from First Mounting Block
S = Transducer Spacing Point
Origin Line
Zero Point
Origin Line
Side View
(on opposite side of pipe)
Model C-RL Installation Guide
