3.

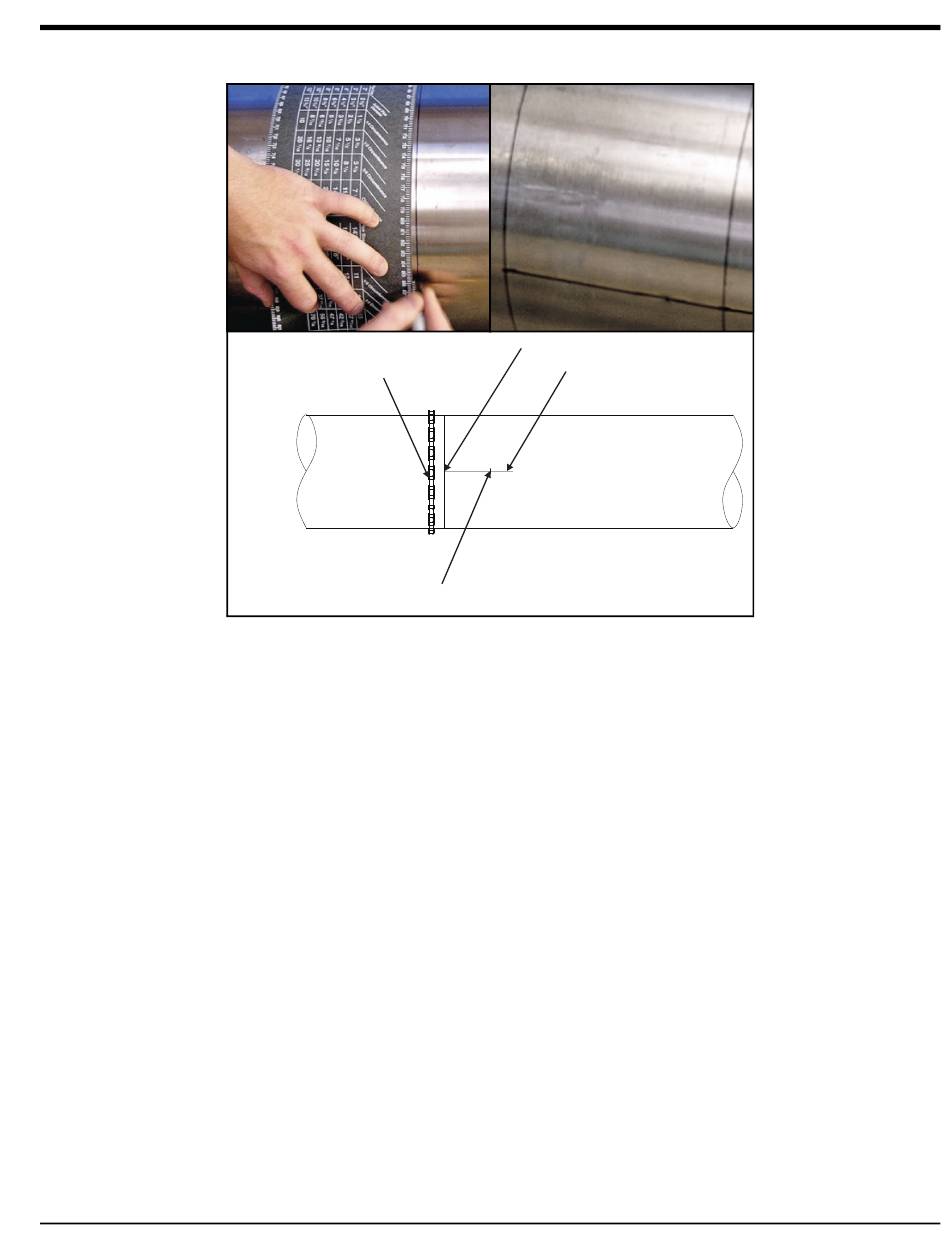

Line up the second mounting block so that it is centered over the origin line and the front edge of the mounting
block lines up with the transducer spacing point as shown below.
IMPORTANT: Make sure you use the same edge on both transducer mounting blocks (either upstream or
downstream from the flow measurement point). If you do not, the transducer spacing will be incorrect.
4. Carefully wrap the chain or strap around the pipe, taking care not to twist it. Then, hook the chain into the
J-hook. If you are using a strap, insert the J-hook into the smaller round holes on the strap.
5. Tighten the chain or strap around the pipe loosely enough so that the mounting block can be moved for minor
adjustments, but not so loose that it will move without being touched.
Model C-RL Installation Guide
Chain from First Mounting Block
S = Transducer Spacing Point
Zero Point
Origin Line
Side View
(on opposite side of pipe)
