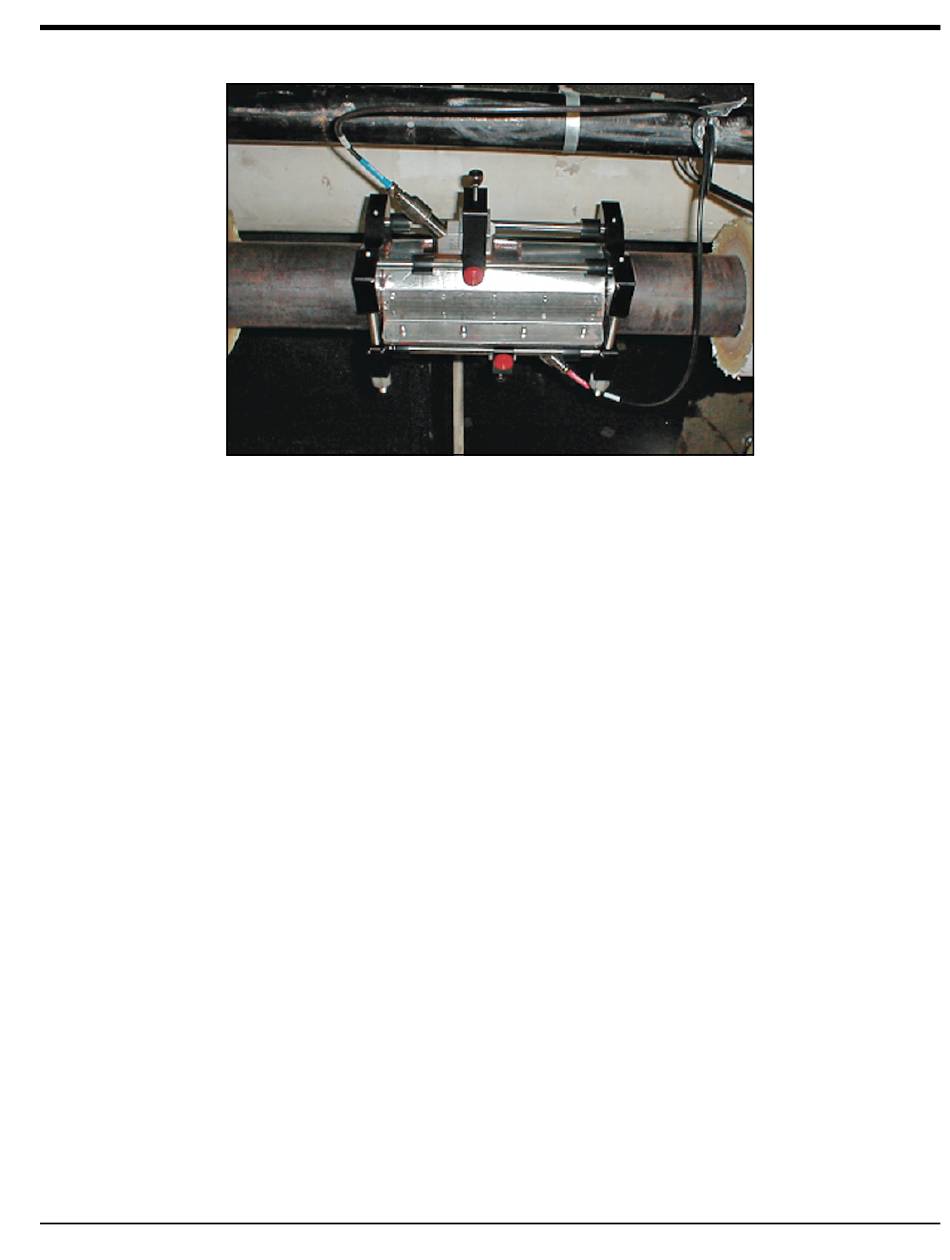

After the fixture has been mounted on the pipe, tighten the four nuts with a 1-in. box wrench. DO NOT use a
cross-tightening pattern.
6.
To mount the transducers, refer to "Mounting the Transducers" on page 20 .
Model C-RL Installation Guide
