3.
Slide the other mounting block to the calculated spacing plus 1 in. (2.5 cm). For example:
a.
Spacing for the first mounting block = 1 in. (2.5 cm)
b.
Spacing as calculated by the flowmeter = 0.5 in. (12.5 mm)
c.
Second mounting block final location = 1 in. + 0.5 in. = 1.5 in. (2.5 cm + 1.25 cm = 3.75 cm)
The overall spacing between blocks should be either left edge to left edge or right edge to right edge.
Note:
If possible, the second block should also be set at least 1 in.(2.5 cm) from the edge of the fixture.
8

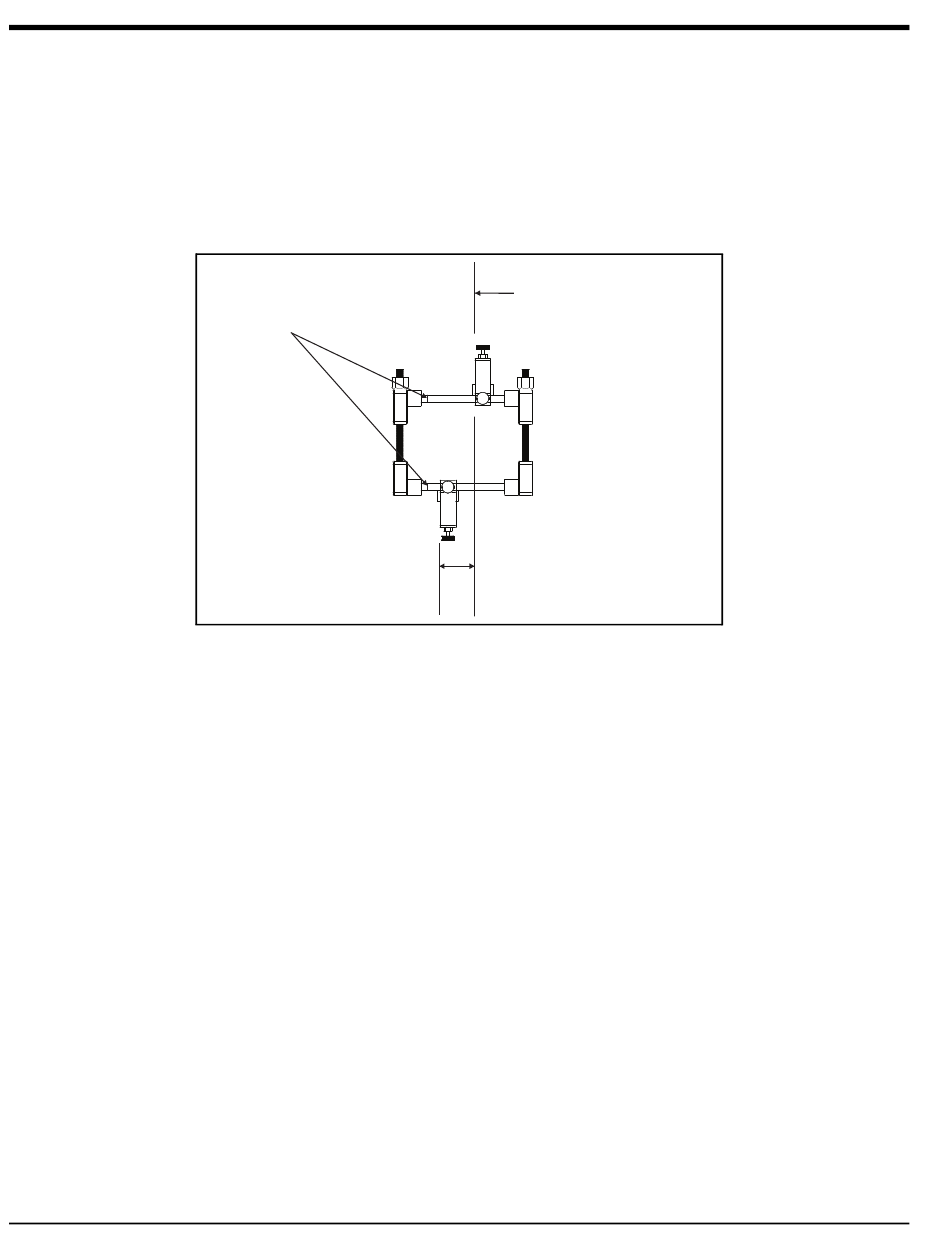

Zero Point on
Measuring Scales
Set second block
using this edge
S
Top View
Model C-RL Installation Guide
