Preface
Preface
This manual describes how to install the PRISM MPX2-DUALDSP Dual Display module and provides basic safety
and operating information. Detailed operating information is available in the user manual. A complete list of PRISM
documentation is provided in this manual. (See page vii, Documentation.)
Product description
The PRISM MPX2-DUALDSP provides a 3RU dual touch display unit for the PRISM family of waveform monitors to create
fully integrated audio, video, and data monitoring suite. The PRISM Dual Display module is 19 inches wide with a shallow
installation depth and comes with two sets of USB/Headphone connectors that can be mounted on each rack ear.

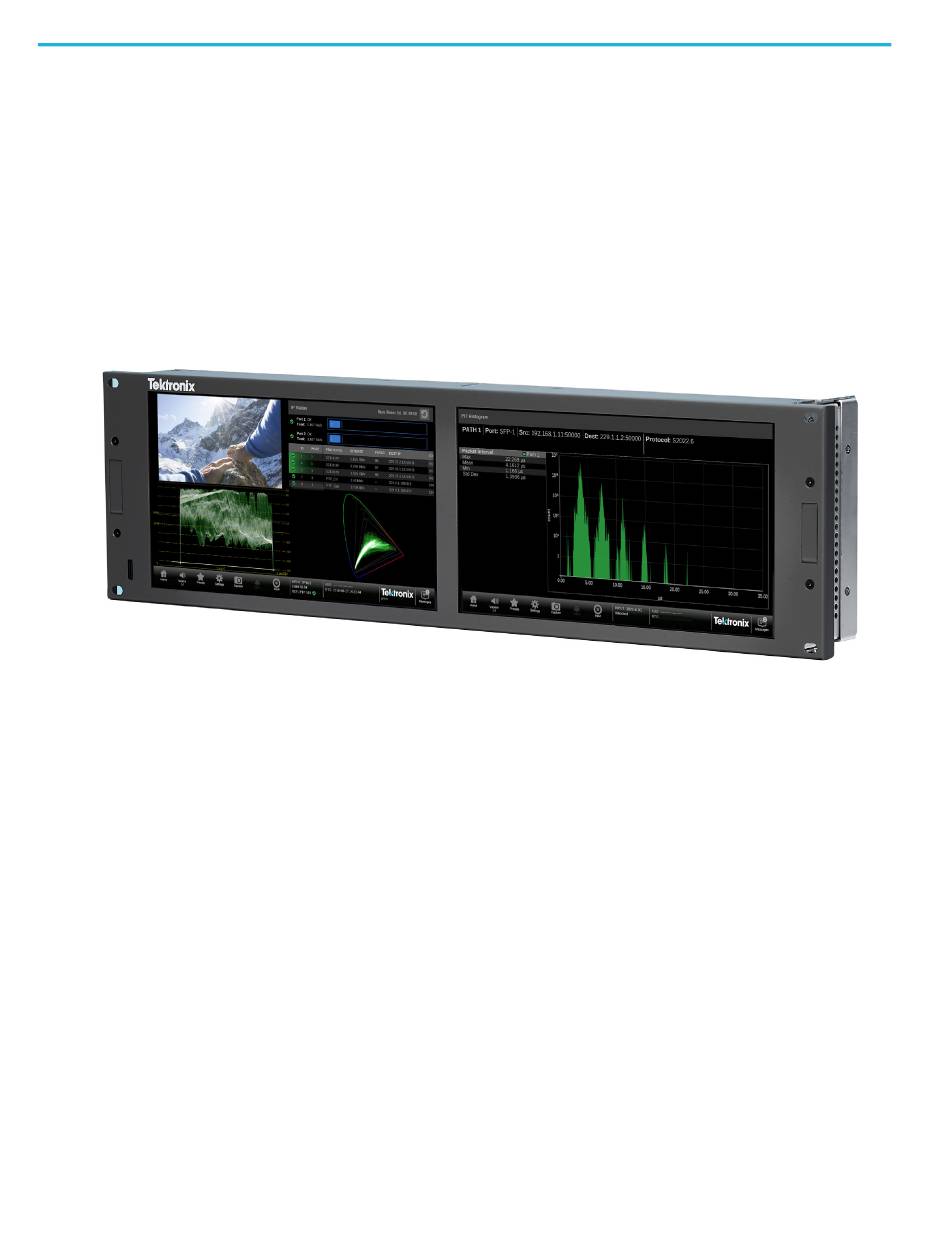

Figure i: PRISM MPX2-DUALDSP (rack ear USB/headphone connections not shown)
vi
PRISM MPX2-DUALDSP Installation and Safety Instructions
