Installation
3. Connect DisplayPort2 on the MPX2 to the DisplayPort connector on Display 2.
4. Connect any USB port on the MPX2 to the USB B port on Display 2.

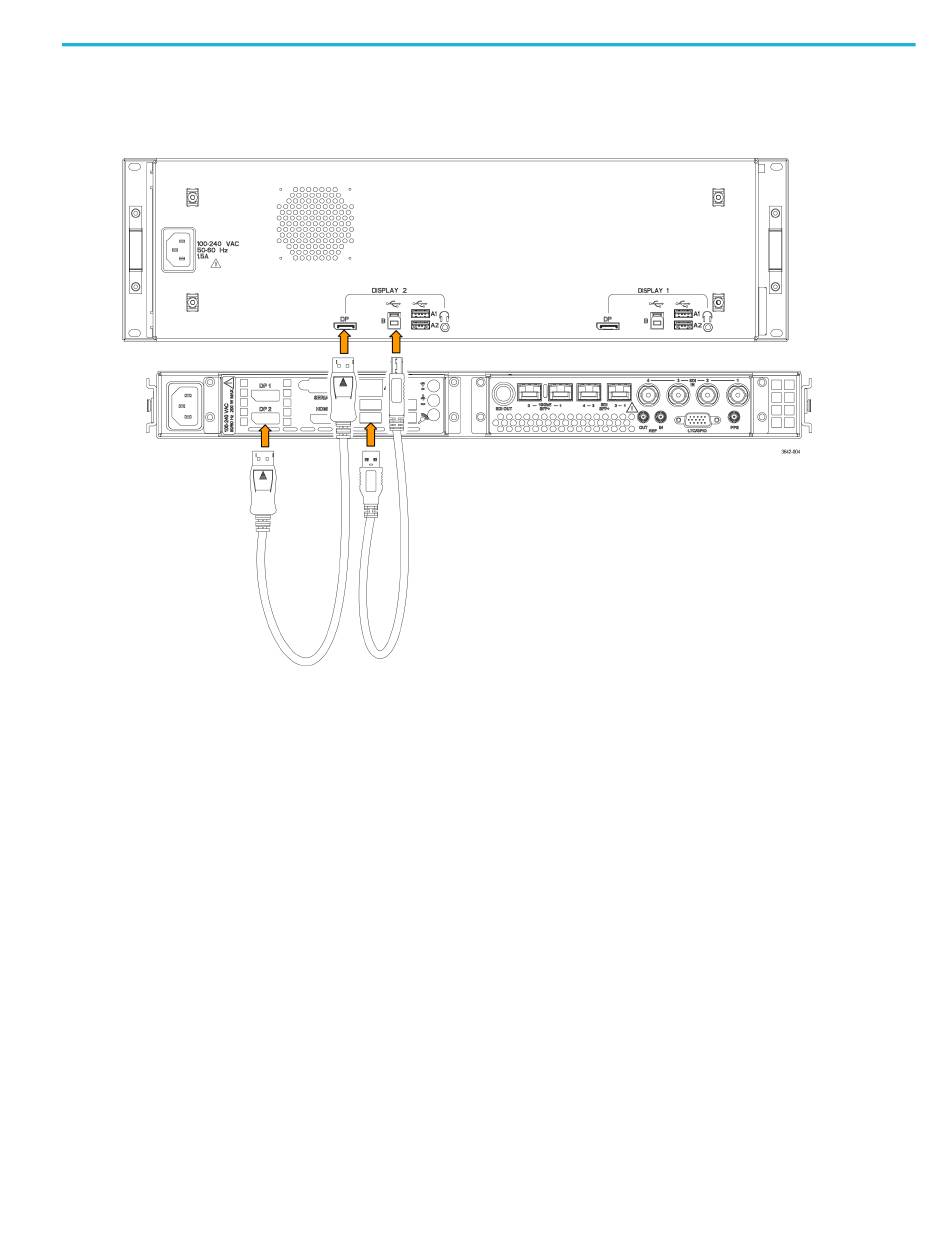

Figure 7: Connect the MPX2 to Display 2 (extended)
PRISM MPX2-DUALDSP Installation and Safety Instructions
11
