Installation

Power-on and power-off procedures

This section describes how to apply power to the module and how to power-on and power-off the Dual Display.
Power cord installation

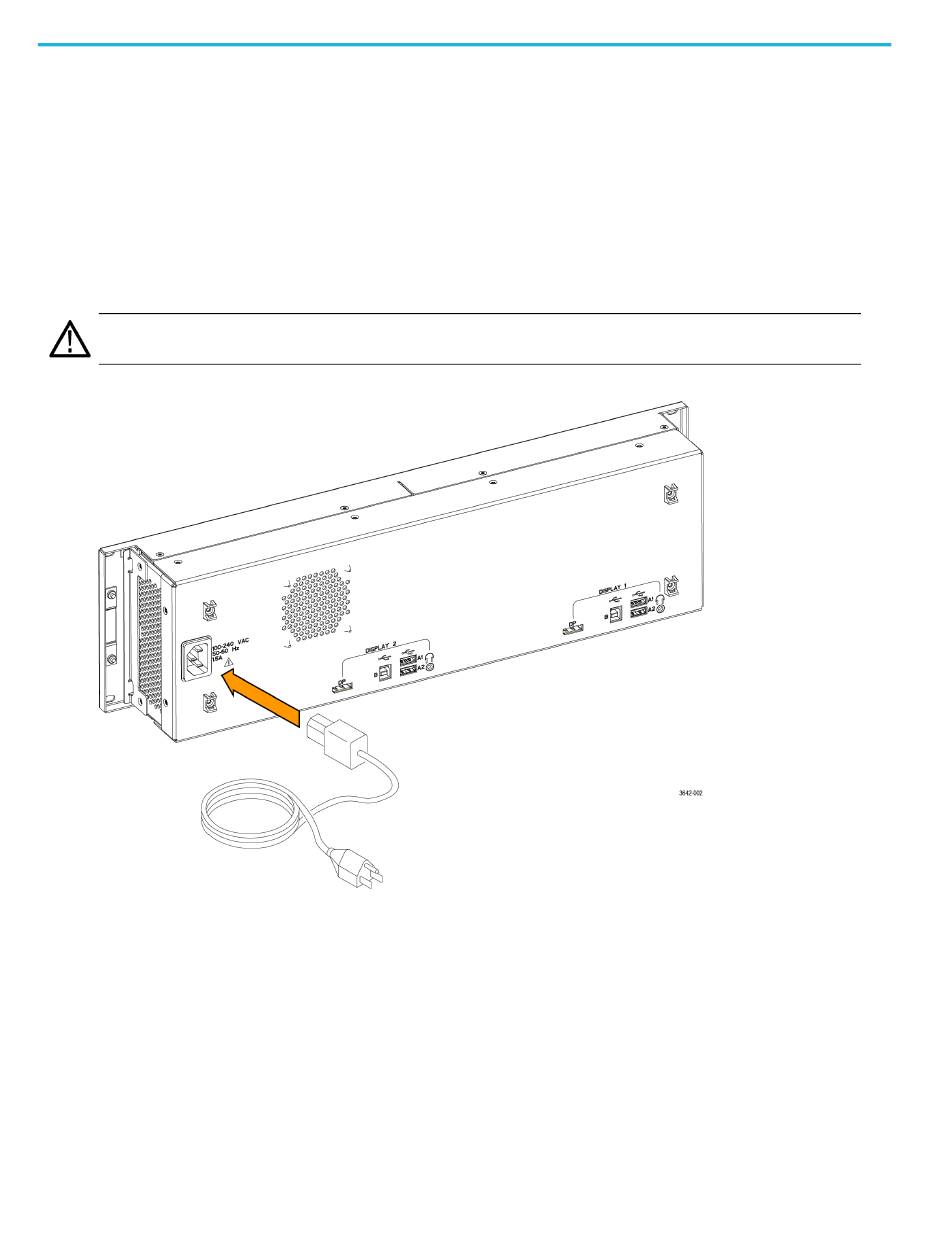

The Dual Display is powered by an AC power source. Connect the power cord to the power connector on the rear panel of
the Dual Display. The power connector is keyed to be directional, with the flat portion of the power cord housing facing
the left of the Dual Display (as viewed from the rear). When fully inserted, the power cord housing latches onto the Dual
Display power connector.
CAUTION. To minimize the risk of damage to the Dual Display, it is strongly recommended that the power cord be connected
to the Dual Display before the power cord is connected to the AC power source.
