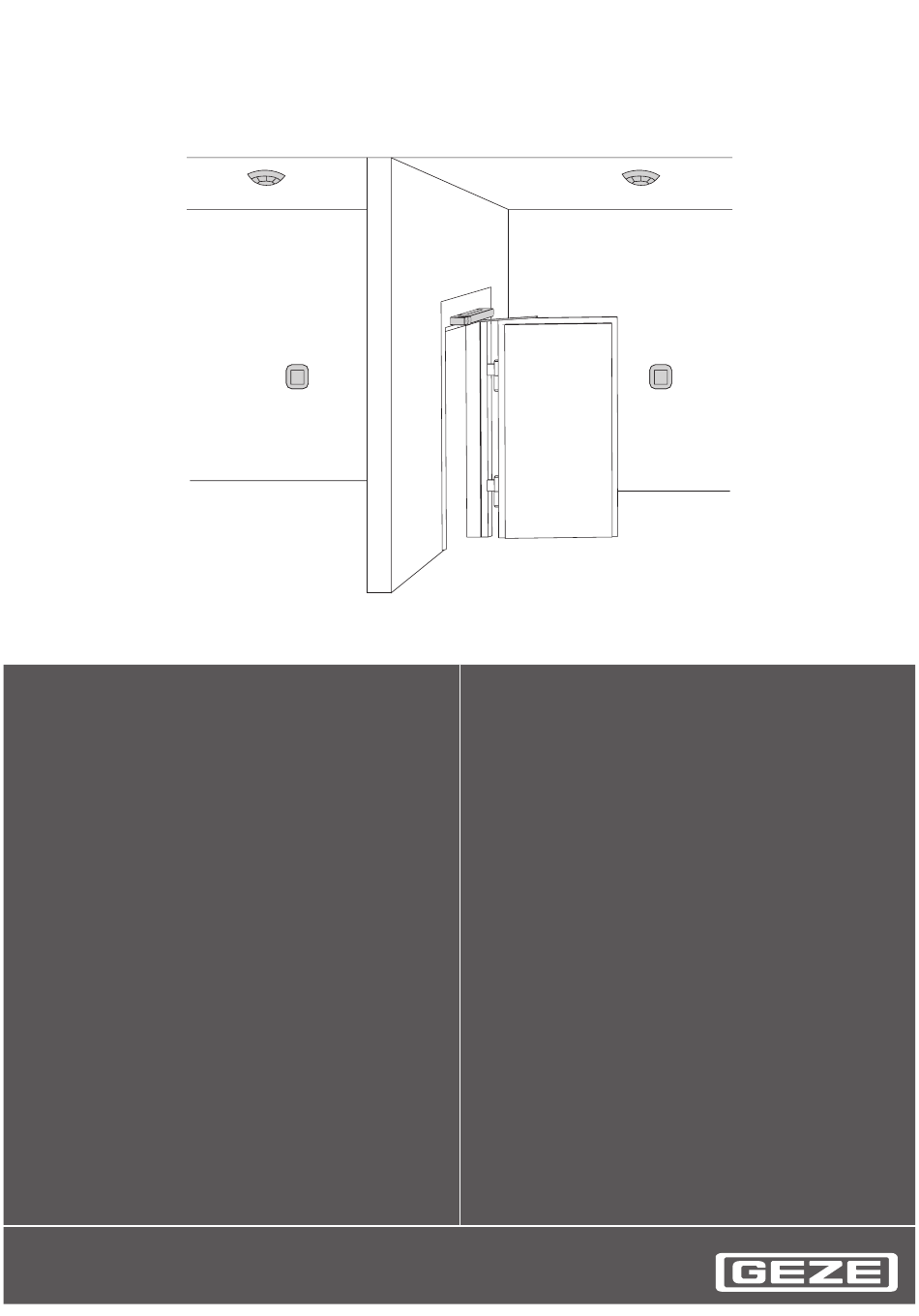

- Page 1 FA GC 160 Instructions for installation, commissi- oning, operation and maintenance RSZ6, TS 4000 R, TS 4000 RFS, TS 4000 R-IS, TS 5000 R, TS 5000 RFS, TS 5000 RFS KB, TS 5000 R-ISM, TS 5000 R-ISM EFS...
-
Page 2: Table Of Contents
Protection of a lintel smoke switch against dirt accumulation ....................5 Waste disposal ........................................5 Hold-open device FA GC 160 ..........................6 Operation .........................................6 Hold-open device with separate smoke switch control unit RSZ6 .....................7 Integrated hold-open device ..................................8 Classification according to EN 14637 ..............................8 Fire alarm and manual release button design ............................9 3.5.1 Smoke detector or temperature sensor ................................. - Page 3 GEZE hold-open device FA GC 160 Acceptance test ..............................29 Maintenance ................................ 30 Routine check ......................................30 Annual inspection and maintenance ..............................30 EN 14637 Approval Nr.: Z-6.5-2192 Certifying authority: BWU33...
-
Page 4: Key To Symbols
Key to symbols GEZE hold-open device FA GC 160 Key to symbols Warning In these instructions, warnings are used to warn against material damage and injuries. Always read and observe these warnings. Follow all instructions marked with the warning symbol and the word WARNING. -
Page 5: Installation Of Lintel Smoke Switch
GEZE hold-open device FA GC 160 Notes 2.2 Installation of lintel smoke switch à Install the lintel smoke switch only after completion of construction at the time of the initial operation of the hold-open device. à The lintel smoke switch is a sensitive electronic... -
Page 6: Hold-Open Device Fa Gc 160
Hold-open device FA GC 160 GEZE hold-open device FA GC 160 Hold-open device FA GC 160 3. 1 Operation Immediately after opening a fire or smoke protection door, it is again closed by the mounted door closer. This self- closing feature is overridden in a controlled manner by the hold-open device, so that a fire or smoke protection door can remain open indefinitely. -
Page 7: Hold-Open Device With Separate Smoke Switch Control Unit Rsz6
GEZE hold-open device FA GC 160 Hold-open device FA GC 160 3.2 Hold-open device with separate smoke switch control unit RSZ6 The hold-open device RSZ6 consists of: à Power supply (1) à Power pack RSZ6 à Lintel smoke switch with triggering device (1) à GC 161 à Ceiling detector (2) à... -
Page 8: Integrated Hold-Open Device

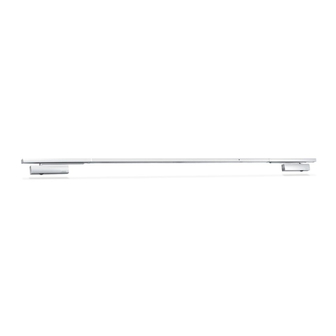

Hold-open device FA GC 160 GEZE hold-open device FA GC 160 3.3 Integrated hold-open device In addition to the hold-open device with separate smoke switch control unit RSZ6, the following locking systems with integrated hold-open device are available for overhead door closers: à TS 4000 R Rods, electro-hydraulic hold-open device à... -
Page 9: Fire Alarm And Manual Release Button Design
GEZE hold-open device FA GC 160 Hold-open device FA GC 160 3.5 Fire alarm and manual release button design 3.5. 1 Smoke detector or temperature sensor Smoke detectors recognise smoke. They operate on the principle of diffused light. A light emitter and a light receiver are arranged in the measuring chamber in such a way that normally no light falls on the receiver. If there are suspended particles (smoke) in the measuring chamber, this scatters a portion of the light on the receiver, which converts it into an electrical signal. -
Page 10: Manual Release Button
Hold-open device FA GC 160 GEZE hold-open device FA GC 160 Lintel smoke switch à The lintel smoke switch is mounted directly above the door, above the active leaf for 2-leaf doors. installation of the lintel smoke switch is done in such a way that there is a gap of at least 1 cm between ceiling or door lintel and upper smoke outlet. -
Page 11: Technical Data
Protection class (according to DIN EN 61140) TS 4000 R, TS 4000 RFS, RSZ6, TS 5000 R, TS 5000 RFS, TS 4000 R-IS, TS 5000 RFS KB TS 5000 R-ISM, TS 5000 R-ISM EFS Protection type (according to DIN EN... -
Page 12: Lintel Smoke Switch Gc 161
Technical data GEZE hold-open device FA GC 160 4.4 Lintel smoke switch GC 161 Lintel smoke switch GC 161 Mat. No. 140458 Functional principle Diffused light, alarm threshold tracking, no alarm memory (self-resetting when there is no more smoke in the measuring chamber) Input voltage... - Page 13 GEZE hold-open device FA GC 160 Technical data Status / Error Alarm output Locking output KL1: 3-4, KL3: 1-2 Without voltage AL_NC Lintel smoke switch alarm AL_COM Ceiling detector alarm AL_NO Normal operation 24 V Dust accumulation (warning) 24 V The lintel smoke switch should be replaced.
-
Page 14: Ceiling Smoke Detector Gc 162
Current increase principle - No alarm 3 mA - Alarm 10 mA Detector test Alarm activation - with test magnet in the vicinity of the magnetic sensor (GEZE logo) - with testing gas Signalling Current consumption Without voltage 0 mA 3 mA... -
Page 15: Ceiling Temperature Sensor Gc 163
- No alarm 3 mA - Alarm 10 mA Detector test Alarm activation - with test magnet in the vicinity of the magnetic sensor (GEZE logo) - with heat detector test apparatus Signalling Current consumption Without voltage 0 mA Normal operation... -
Page 16: Manual Release Button Uta
Technical data GEZE hold-open device FA GC 160 4.8 Manual release button UTA Type UTA, AS500 Breaker switch Mat. No. 116266 Surface box Mat. No. 120503 Circuit type one changeover Circuit voltage Maximum 250V Switching current Maximum 10A Termination resistor 43 kΩ 43kΩ... -
Page 17: Wiring Diagram
Non-labelled connections are system cables, only these should be used. à The cables should be adequately protected and secured mechanically. à Insulate unused wires. 5. 1 Mains connection à The GEZE hold-open systems are devices of protection class I and protection class II according to DIN EN 61140. -
Page 18: Mains Connection For Protection Class
Wiring diagram GEZE hold-open device FA GC 160 5. 1 .2 Mains connection for protection class II Power pack for Smoke switch control unit RSZ6 TS 5000 R, TS 5000 RFS, TS 5000 R-ISM, TS 5000 R-ISM-EFS Mat. No. 085391 No. 115818 Cable length 230V / 24V... - Page 19 GEZE hold-open device FA GC 160 Wiring diagram Ceiling temperature detector GC 163 as lintel smoke switch à If the lintel smoke switch GC 161 is exposed to disturbances such as steam, dust, condensation or operation-related fumes, it is reasonable to use a temperature sensor as lintel detector.
-
Page 20: Manual Release Button Uta
Wiring diagram GEZE hold-open device FA GC 160 Connecting a ceiling temperature detector GC 163 as lintel smoke switch and two other ceiling detectors Remove termination resistor on the ceiling temperature detector GC 163. Ceiling detector as lintel detector Ceiling detector Ceiling detector Fig. 5.2.1.4... -
Page 21: Manual Release Button Uta Without Line Monitoring
GEZE hold-open device FA GC 160 Wiring diagram Connect manual release button as a closer. Fig. 5.3.1.1 Several manual release buttons can be connected in parallel. Connect 43 kΩ resistor only in the last one. Fig. 5.3.1.2 5.3.2 Manual release button UTA without line monitoring The monitoring is not active if à... -
Page 22: Alarm Output
Wiring diagram GEZE hold-open device FA GC 160 5.4 Alarm output à Potential free relay contact, changeover contact, up to 24 V, 1 A à The contact 12-13 is open in normal operation, closed in case of power failure or alarm. - Page 23 GEZE hold-open device FA GC 160 Wiring diagram Door closer TS 4000 E-IS Door leaf mounting à Junction box with pluggable cable transition, Mat. No. 052105 GC 161 Junction box TS 4000 E-IS Door- Active wing Switch is closed, if active wing is open...
- Page 24 Wiring diagram GEZE hold-open device FA GC 160 E-ISM guide rail , E-ISM guide rail Boxer Guide rail Active wing Switch is closed, if active wing is open Guide rail Inactive wing Fig. 5.5.1.6 ISM-EFS guide rail, ISM-EFS-guide rail Boxer à...
- Page 25 GEZE hold-open device FA GC 160 Wiring diagram Integrated door closer BOXER EFS Fig. 5.5.1.10 Bottom door closer TS 550 NV-E Fig. 5.5.1.11 Bottom door closer TS 550 E GC 161 TS 550 E L = 3 m – 15 mA 100 mA Fig. 5.5.1.12...
-
Page 26: Hold-Open Systems Ts 4000 R, Ts 4000 Rfs
Wiring diagram GEZE hold-open device FA GC 160 Holding magnet GT50R Fig. 5.5.1.14 5.5.2 Hold-open systems TS 4000 R, TS 4000 RFS GC 161 15 mA 42 mA Fig. 5.5.2.1 5.5.3 Hold-open system TS 4000 R-IS GC 161 Active wing 42 mA 15 mA Switch is closed, if ac- tive wing is open... -
Page 27: Hold-Open System Ts 5000 R-Ism
GEZE hold-open device FA GC 160 Wiring diagram 5.5.5 Hold-open system TS 5000 R-ISM For TS 5000 R-ISM/G, no hold-open device in the inactive wing GC 161 24 V Active wing – 15 mA – 85 mA Switch is closed, if active wing is open... -
Page 28: Commissioning
Commissioning GEZE hold-open device FA GC 160 Commissioning Switch on the mains voltage. The status indicator of the lintel smoke switch glows green. Remove dust protection film or dust cap of the housing of the hold-open system, so that the smoke outlets are free. -
Page 29: Testing The Temperature Sensor
The acceptance test must be arranged by the operator. The acceptance test must be performed only by GEZE professionals, experts authorized by GEZE, or professionals of a test centre designated by DIBt in the approval process. -
Page 30: Maintenance
à Checking whether the fire or smoke barrier will be enabled after release of the automatic closure. Extent, results and time of the conducted function test are to be documented in the GEZE test book for hold- open device and made available the operator. These records shall be kept by the operator. - Page 31 GEZE hold-open device FA GC 160 Maintenance...
- Page 32 GEZE GmbH Niederlassung Ost GEZE Engineering Roma S.r.l China Switzerland Tel. +49 (0) 30-47 89 90-0 E-Mail: roma@geze.biz GEZE Industries (Tianjin) Co., Ltd. GEZE Schweiz AG E-Mail: berlin.de@geze.com www.geze.it E-Mail: Sales-info@geze.com.cn E-Mail: schweiz.ch@geze.com www.geze.com.cn www.geze.ch Poland GEZE GmbH GEZE Polska Sp.z o.o.
