2 ADS8688EVM-PDK Overview

Table 1-1 lists the related documents that are available for download from Texas Instruments at
ADS8688EVM Features
• Hardware and software required for diagnostic testing as well as accurate performance evaluation of the
ADS8688 ADC
• USB powered—no external power supply is required
• The PHI controller that provides a convenient communication interface to the ADS8688 ADC over USB 2.0
(or higher) for power delivery as well as digital input and output
• Easy-to-use evaluation software for 64-bit Microsoft Windows™7, Windows 8, and Windows 10 operating
systems
• The software suite includes graphical tools for data capture, histogram analysis, and spectral analysis. This
suite also has a provision for exporting data to a text file for post-processing. Fig
• Integrated 4.096-V voltage reference.
• Bipolar (±10.24 V, ±5,12 V, ±2.56 V ) or unipolar (0 V to 10.24 V, 0 V to 5.12 V) input ranges for each channel.
• Onboard, second-order, Butterworth, low-pass filters for four channels.
• Onboard regulator for generating a ±15-V bipolar supply for second-order, Butterworth, low-pass filters.
• Capable of accepting a ±100-mV signal on the negative analog inputs (AIN_xGND).
Signal
Source #1
Signal
Source #1
8 Channels total
ADS8688EVM Features:
• Eight input channels connected to external single ended signals source applied to SMA connectors or header
• Serial interface connects to the PHI controller via 60 pin connector (J3).
• Serial interface connects to the PHI controller via 60 pin connector (J2).
• All power for device from USB via PHI controller.
• Onboard ultra-low noise low-dropout (LDO) regulator generates 5.0V AVDD supply. Input to LDO from PHI
controller.
• DVDD (3.3V) powered by PHI controller.
SBAU230C – AUGUST 2014 – REVISED MARCH 2021
Submit Document Feedback
ADS8688EVM
PHI Board

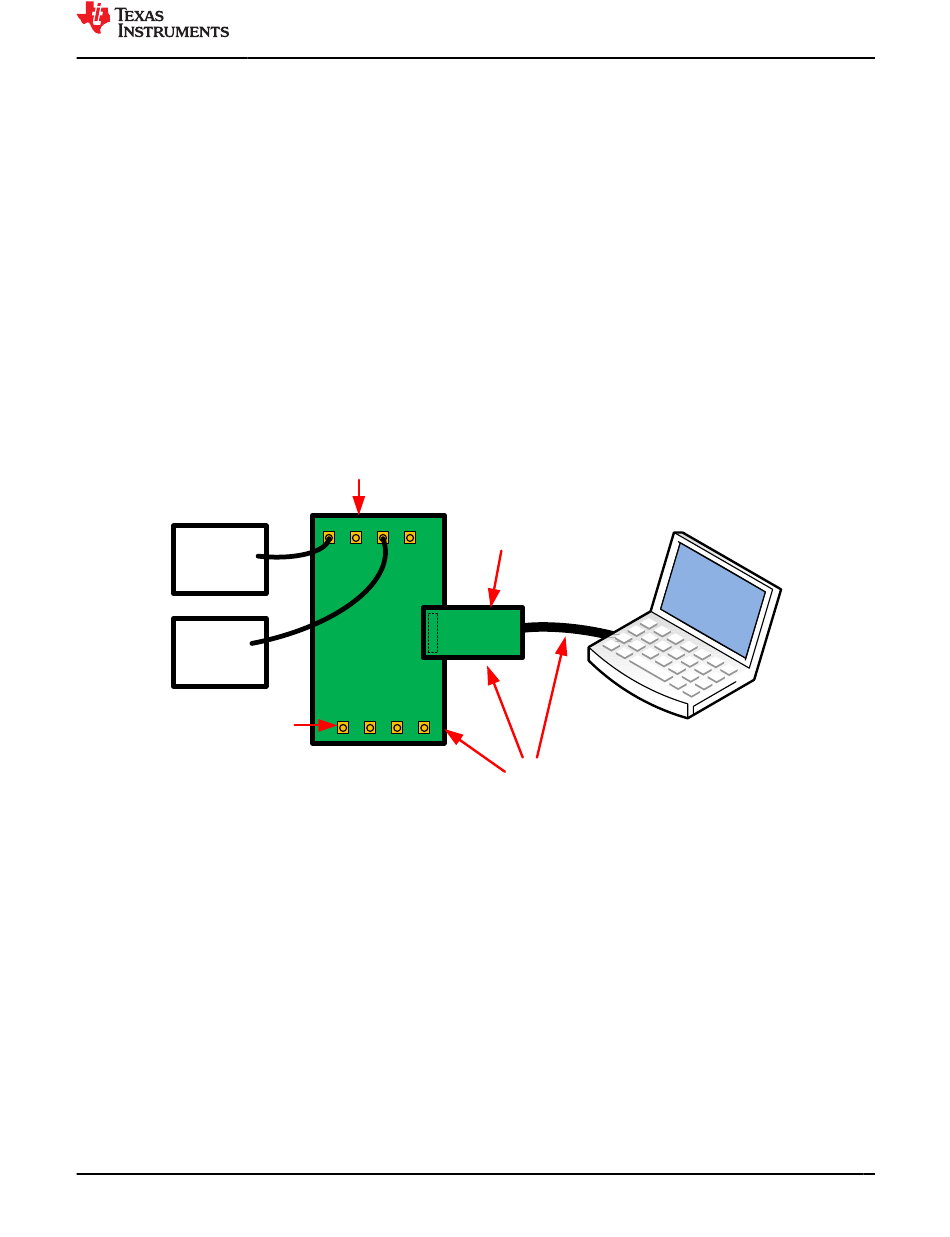

Figure 2-1. System Connection for Evaluation

Copyright © 2021 Texas Instruments Incorporated
xx
xx
xx xx
xx
xx xx
ADS8688
x
Included in kit
x
ADS8688EVM-PDK Evaluation Module
ADS8688EVM-PDK Overview
x
GUI
x
x
