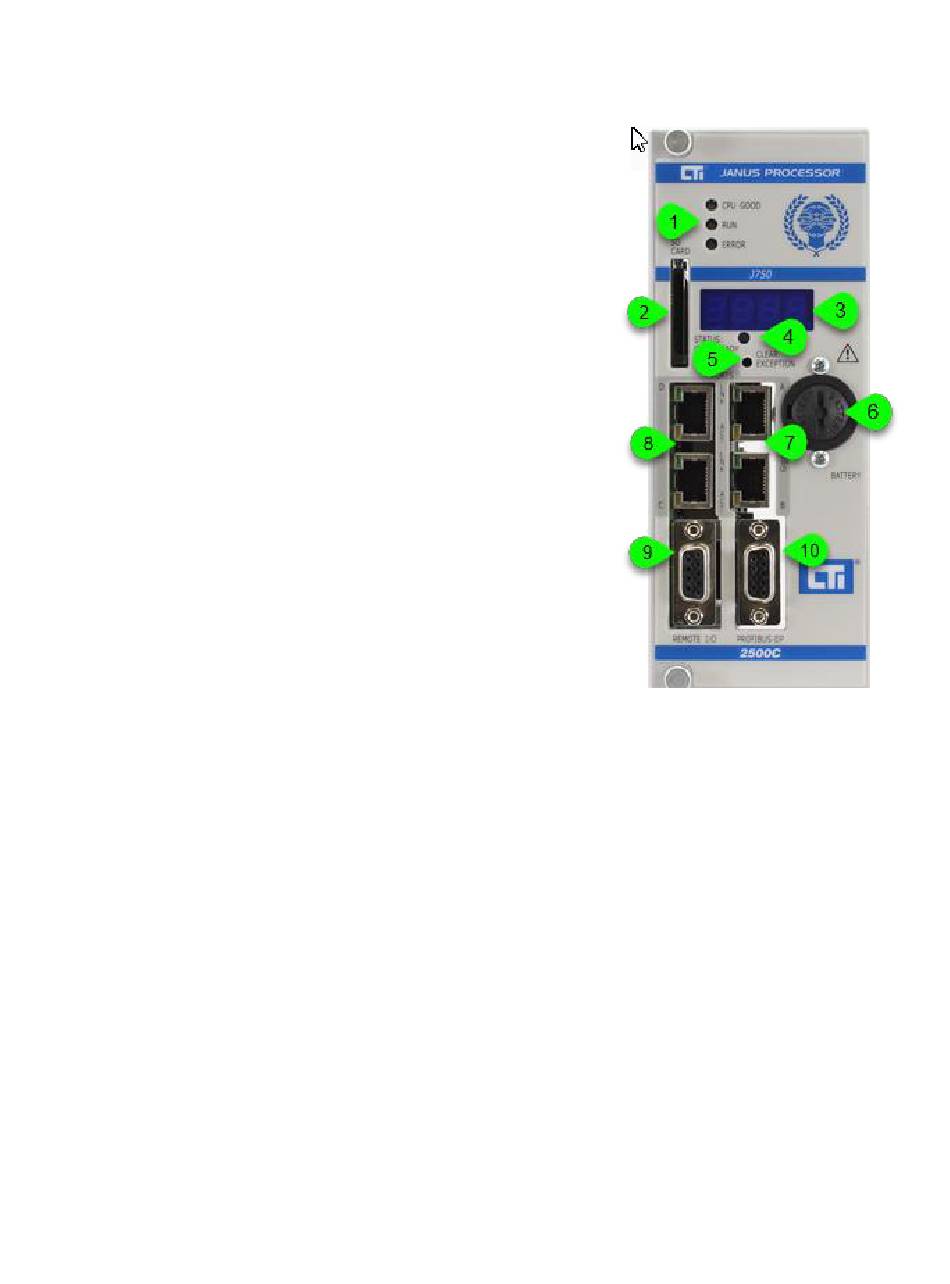

2.2 Janus Compact Controller Front Panel

1. Operational Status LEDs
CPU GOOD
RUN
BATTERY GOOD
2. SD Card Receptacle
3. Alphameric Display
4. SD Card Status LED
Green- Card Ready
Red- Card Busy
5. Clear Exception Button
6. Battery Holder
7. Ethernet Ports A and B (1000 Mb)
Link LED (LINK)
Activity LED (ACT)
8. Ethernet Ports C and D (100 Mb)
Link LED (LINK)
Activity LED (ACT)
9. Remote I/O Port
10. Profibus Port (Model Dependent)
