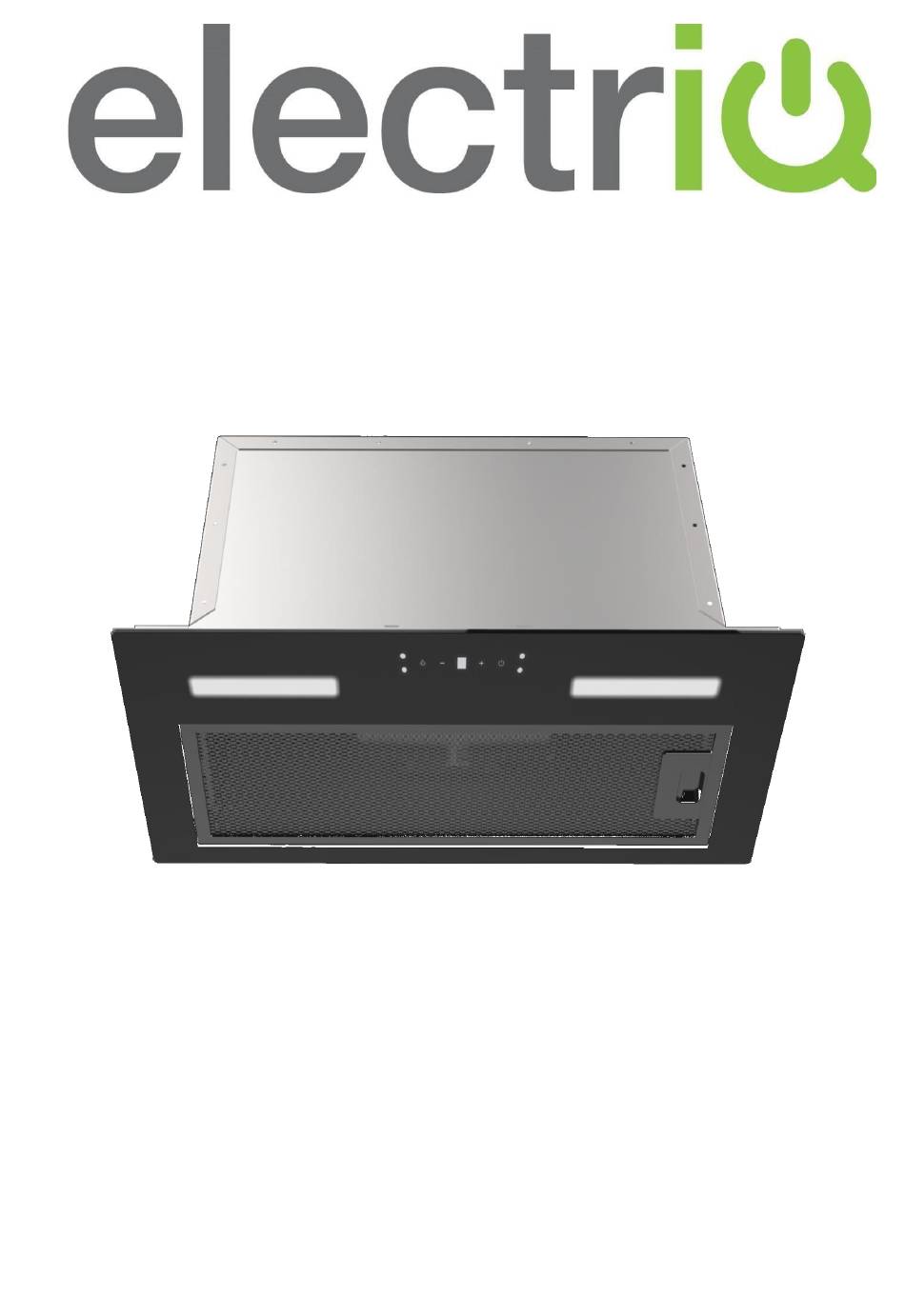

USER MANUAL

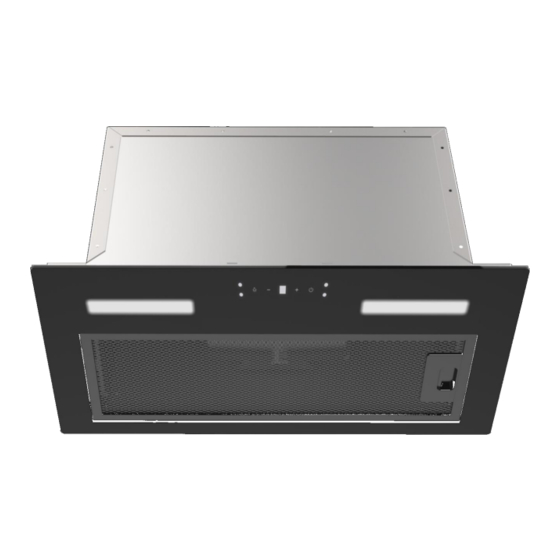

CANOPY COOKER HOOD
eiQ52GCANOPY
Thank you for choosing your electriQ cooker hood.
This instruction manual is designed to provide you with all required instructions
related to the installation, use and maintenance of the appliance. In order to operate
the unit correctly and safely, please read this instruction manual carefully before
installation and usage.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ElectrIQ eiQ52GCANOPY
Summary of Contents for ElectrIQ eiQ52GCANOPY
- Page 1 USER MANUAL CANOPY COOKER HOOD eiQ52GCANOPY Thank you for choosing your electriQ cooker hood. This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTALLATION OPERATION CLEANING AND MAINTENANCE FILTER INFORMATION LIGHT INFORMATION TROUBSLEHSOOTING SUPPORT PRODUCT FICHE... - Page 3 SAFETY PRECAUTIONS Whilst this product is compliant with all safety requirements, incorrect or inappropriate use can lead to both personal injury and potential damage to property. Please read the contents of this instruction booklet thoroughly before fitting or using this appliance. •...
- Page 4 • The plug must be accessible after installation for isolation in case of an emergency – or an appropriate fused switch if the unit is hard-wired to the mains via a spur. • The minimum distance between the surface of the hob and the lowest part of the hood should be at least 65cm.
- Page 5 V-FLAP INSTALLATION DIMENSIONS...
- Page 6 OPTIONS FOR VENTING EXTERNAL VENTING If you have an outlet leading outside, your cooker hood can be connected as shown in the diagram using a flexible exhaust hose (not supplied). Any suitable extraction duct (enamel, aluminium, flexible pipe or other inflammable material with an interior diameter of 150mm) can be used.
-
Page 7: Installation
INSTALLATION Before installation, ensure power is not connected. 1. Open the catch of metal filter door, remove the filter. 2. Remove the stainless-steel frame by removing the 4 x 4x10mm screws. 3. Remove the lid of the terminal box and unplug the wires to the hood controls. - Page 8 5. Screw the stainless-steel frame back into place using the 4 screws removed as described in step 2 above 6. Reconnect the wires to the controls and lights. 7. Replace the metal filter, pressing in until it clicks into place. 8.
-
Page 9: Operation
OPERATION Button Function Remarks Turns the lights on or off When Decreases the motor speed are on Displays fan speed (1, 2 or 3) When fan is running Delayed shutdown mode Displays “0” or standby mode When Increases motor speed Turns motor on When is off... -
Page 10: Cleaning And Maintenance
CLEANING AND MAINTENANCE Before cleaning, switch the unit off and disconnect the power. Use a soft cloth moistened with mild soapy water or household cleaning detergent. Never use metal pads, chemicals, abrasive material or stiff brushes to clean the unit. NOTE: Do not use a steam cleaner to clean the hood as electrical components could be damaged or short-circuit as a result. -
Page 11: Filter Information
• Make sure the filter is securely locked. Otherwise, it may become loose and be dangerous. • With activated carbon filters fitted you may notice is suction power is slightly reduced. Filters for eiQ52GCANOPY Grease Filter eiqgf7628 Carbon filter eiqmidcarbon... -
Page 12: Light Information
BULB REPLACEMENT The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons. Always switch off the electricity supply before carrying out any operations on the appliance. When handling the bulb, make sure it has completely cooled down before making contact with the hands. -
Page 13: Troubslehsooting
At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority for recycling advice. electriQ UK SUPPORT www.electriQ.co.uk Call: 0330 390 3061 Office hours: 9AM - 5PM Monday to Friday... -
Page 14: Product Fiche
PRODUCT FICHE Symbol Value Unit Model identification eiQ52GCANOPY Annual Energy Consumption 56.0 kWh/a hood Time increase factor Fluid Dynamic Efficiency hood Fluid Dynamic Efficiency Class E class Energy Efficiency Index 86.7 hood Energy Efficiency class Class D Maximum airflow 394.2 Measured airflow rate at the 227.1...
