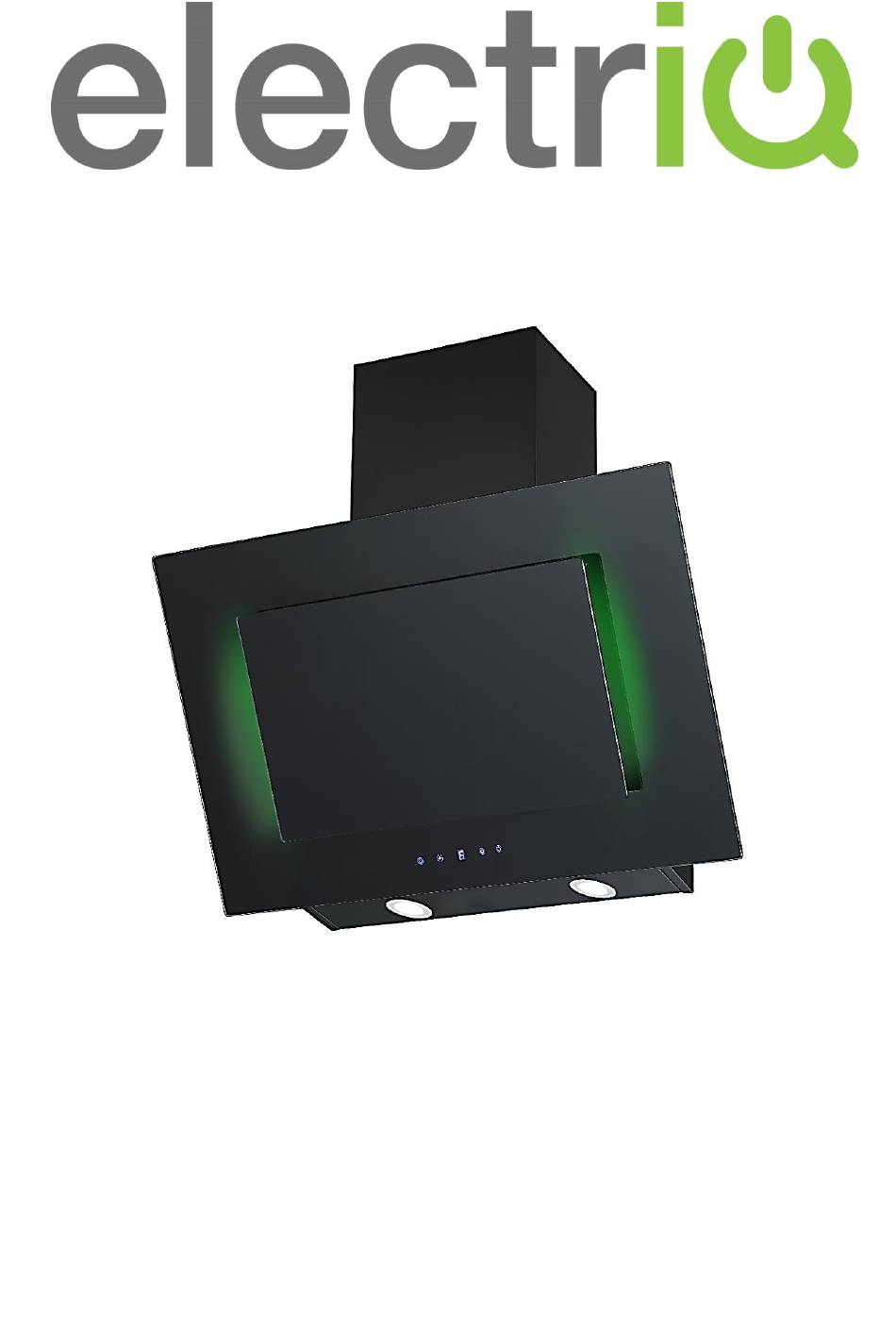

- Page 1 USER MANUAL COOKER HOOD WITH COLOUR CHANGING LED eiQATS60 Thank you for choosing electriQ Please read this user manual before using this product and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire product range...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTALLATION OPERATION TROUBLESHOOTING CLEANING AND MAINTENANCE FILTER INFORMATION BULB REPLACEMENT TECHNICAL SPECIFICATIONS SUPPORT PRODUCT FICHE... -
Page 3: Safety
SAFETY PRECAUTIONS Whilst this product is compliant with all safety requirements, incorrect or inappropriate use can lead to both personal injury and potential damage to property. Please read the contents of this instruction booklet thoroughly before fitting or using this appliance. •... - Page 4 • The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. • When the hood is vented externally and used with appliances which burn fuel (e.g. gas, oil, wood) the area must be sufficiently ventilated to ensure safe operation.
-
Page 5: Installation
INSTALLATION If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of 120/150mm) 1. Before installation, turn the unit off and unplug it from the outlet. - Page 6 4. Install the v-flap and converter onto the cooker hood. Fix the expansion pipe on the converter using a cable tie. See Pic 3. Hang the cooker hood onto the hook. 5. Install the outside chimney bracket onto the outside chimney with 2 ST4*8mm screws, be sure the inside chimney can be flexed freely.
-
Page 7: Operation
START USING YOUR COOKER HOOD 1. Press the “Power” button, to turn the cooker hood on and off. 2. Press the “Speed” button to cycle between fan speeds, the LED display will indicate the fan speed with the numbers 1, 2 and 3. 3. -
Page 8: Troubleshooting
TROUBLESHOOTING Fault Cause Solution The fan blade is Light on, but Switch off the unit. Repair to be carried out jammed. fan does not by qualified service personnel only. work The motor is damaged. Both light Halogen light bulb blown Replace the bulb with correct rating. -
Page 9: Filter Information
GREASE MESH FILTERS The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a mild detergent and then brush it gently with a soft brush. Please do not apply too much pressure so as to avoid any damage to it . (Leave to dry naturally out of direct sun light) Filters should be washed separately to crockery and kitchen utensils. -
Page 10: Bulb Replacement
BULB REPLACEMENT • The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons. • Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands. -
Page 11: Technical Specifications
-light cover, take out and replace the light as shown in b. • Reverse the procedure to reinstall. Max wattage: 2×4 W Voltage range: DC 12V Dimensions: 165×14mm TECHNICAL SPECIFICATIONS MODEL eiQATS60 MOTOR POWER 1*65W WIDTHxHEIGHT (mm) 600x400 MOTOR AIR FLOW 330m3/h ENERY EFFICIENCY... -
Page 12: Support
The appliance must not be dismantled by an unqualified person. At the end of its life, the appliance should not be disposed of with general household waste. Check with your Local Authority or retainer for recycling advice. electriQ UK SUPPORT www.electriQ.co.uk/support Call: 0330 390 3061 Office hours: 9AM - 5PM Monday to Friday... -
Page 13: Product Fiche
PRODUCT FICHE Symbol Value Unit Model identification eiQATS60 Annual Energy 28.7 kWh/a Consumption hood Time increase factor Fluid Dynamic Efficiency 14.1 hood Fluid Dynamic Efficiency Class D class Energy Efficiency Index 66.1 hood Energy Efficiency class Class B Maximum airflow 299.5...
