EWM Drive XQ IC D200 Operating Instructions Manual page 15

Item Symbol
1
2
3
4
5
6
7
8
9
10
11
099-005637-EW501
27.04.2021

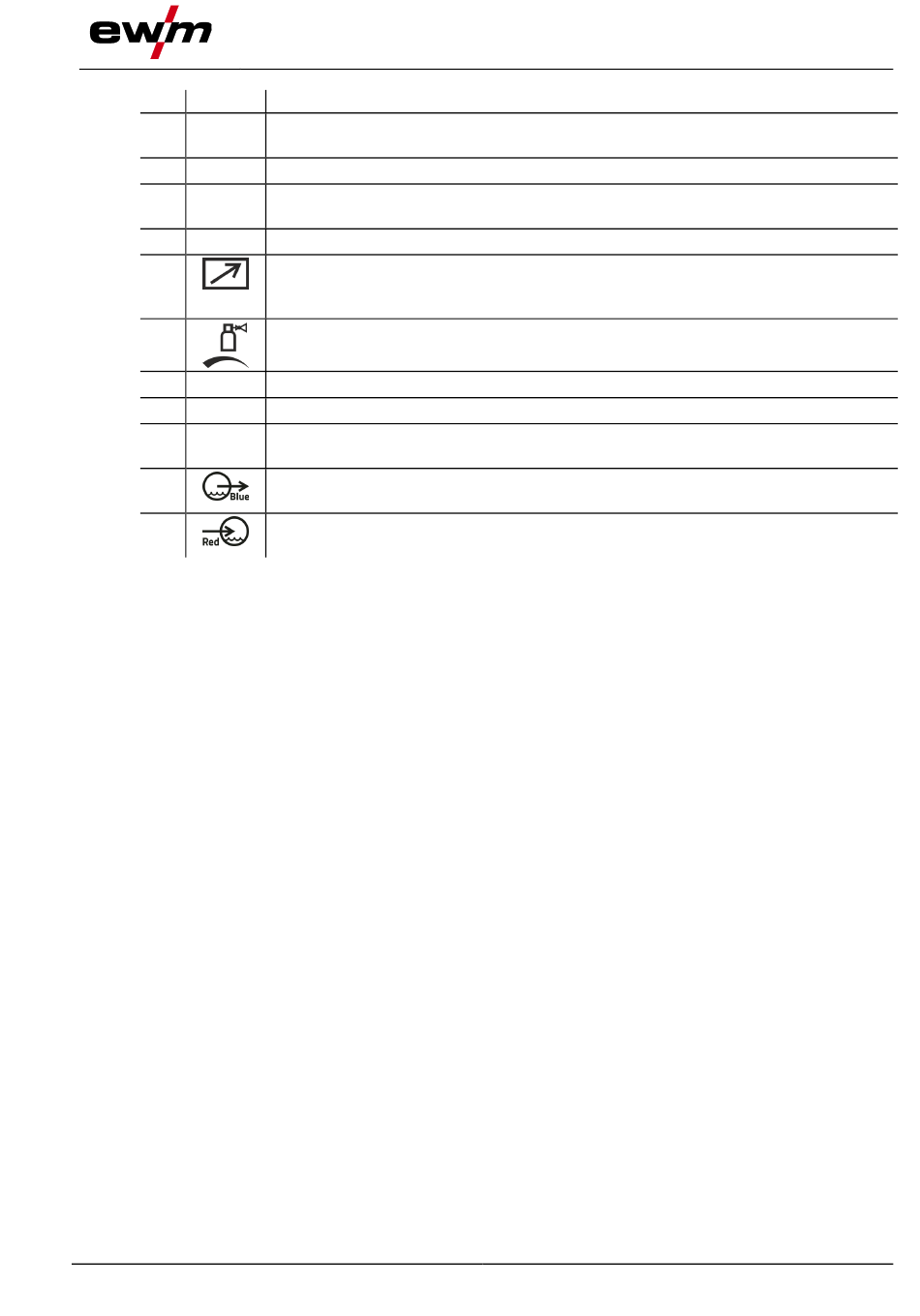

Machine description – quick overview
Description 0
Transport elements
Transport handle and transport belt > see 5.1.2 chapter
Machine control (see the relevant control operating instructions)
Welding torch connection (Euro or Dinse torch connector)
Welding current, shielding gas and torch trigger integrated
Connection depending on the device version
19-pole connection socket - optional
For connecting analogue accessory components (remote control, control cable, welding
torch, etc.)
Analogue gas volume control with gas flow meter - optional
Intermediate hose package strain relief > see 5.2.1 chapter
Machine feet, protective rails
Connection socket for welding current - optional
Welding current potential of the torch connector for MMA welding or gouging
Quick-connect coupling (blue) - optional
Coolant feed
Quick-connect coupling (red) - optional
Coolant return
Front view / rear view
15
