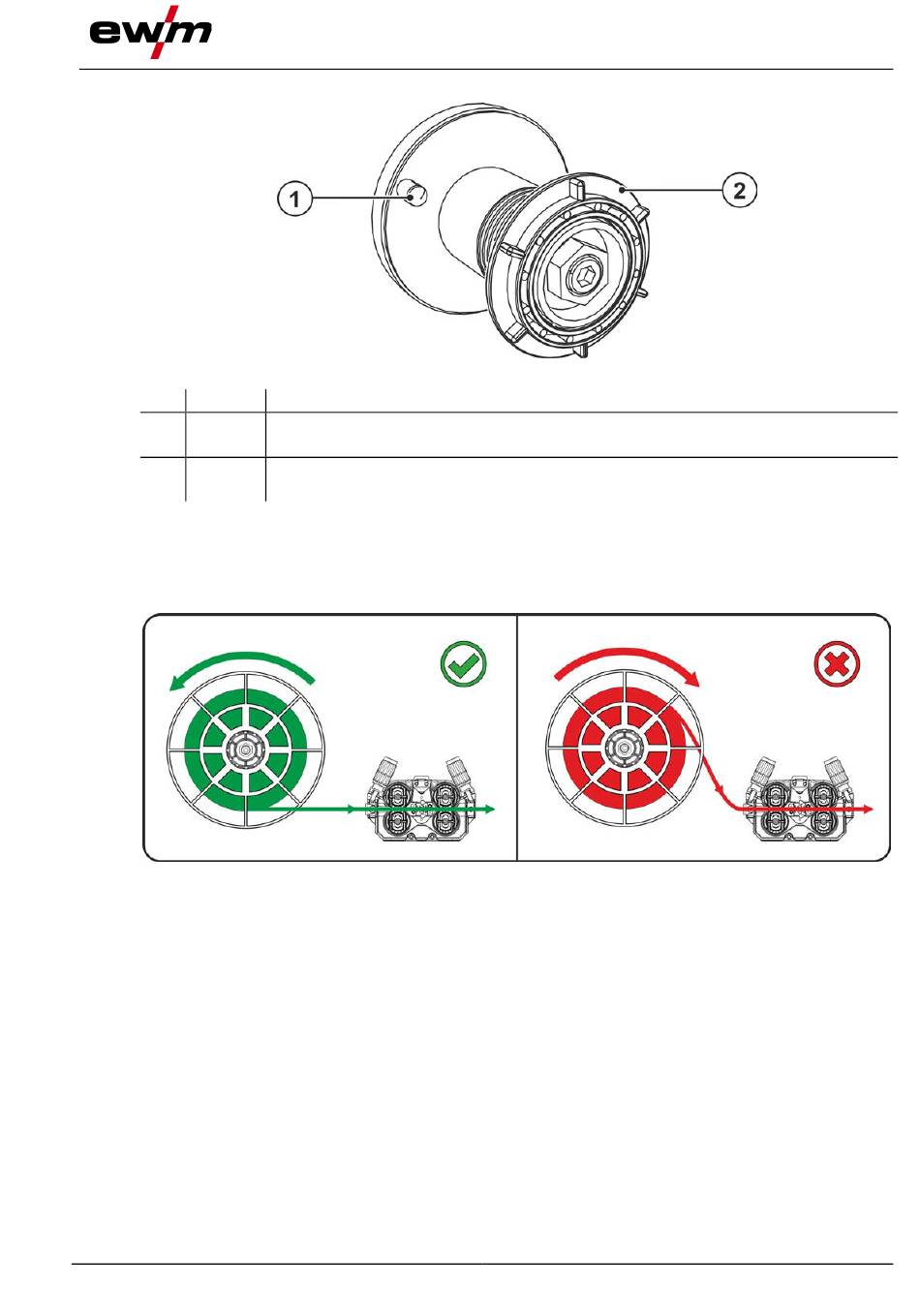

Item Symbol
1
2
•
Unlock and open protective flap.
•
Loosen knurled nut from spool holder.
•
Fix welding wire reel onto the spool holder so that the carrier pin locks into the spool bore.
•
Fasten wire spool using knurled nut.
Observe the unwinding direction of the wire spool.
099-005637-EW501
27.04.2021
Description
0
Carrier pin
For fixing the wire spool
Knurled nut
For fixing the wire spool
Design and function
Figure 5-12
Figure 5-13
Assemble the wire guide
29
