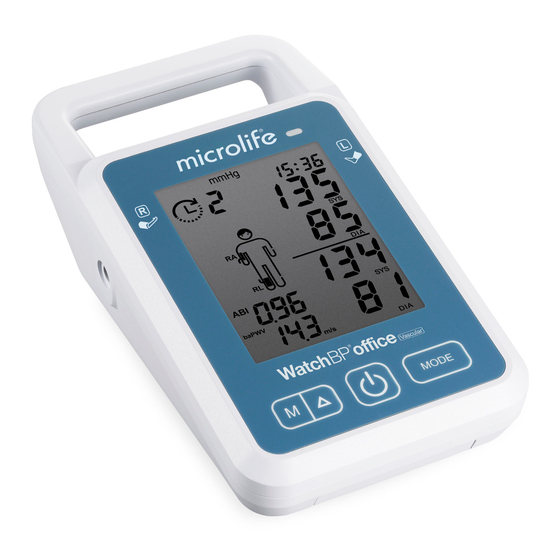

- Page 1 WatchBP Office Vascular Professional Office Blood Pressure and Cardiovascular Screening Monitor MODE TWIN200 VSR Instruction Manual...
- Page 2 2. Kollias, A., et al. Automated pulse wave velocity assessment using a professional oscillometric office blood pressure monitor. J Clin Hypertens. 2020;00:1–7. 3. Cheng, H.M., et al., Measurement accuracy of a stand-alone oscillometric central blood pressure monitor: a validation report for Microlife WatchBP Office Central. Am J Hypertens, 2013. 26(1): p. 42-50.
-
Page 3: Table Of Contents
・Selecting the correct cuff ......................9 ・Fitting the cuff properly ......................10 ・Application of the ankle cuff (for measurement in the ankle) ............. 10 Taking measurements using the WatchBP Office Vascular ・Turn on the power ......................... 11 ・Connect the cuff(s) to the device .................... 11 ・Select the measurement arm(s) and ankle ................ -
Page 4: Contents
WatchBP Analyzer(If not available already on the device). An activation key is needed for activation, the activation key is specific for the device as it matches the ID. Please contact Microlife or the local distributor for additional information. -
Page 5: Product Overview
WatchBP Office Product Overview Cuff Socket Power Adaptor Socket Display USB port DC 7.5V 1.5A Battery Compartment button (Memory) Memory record and down function button (Up) Setting and Up function button (Start/Stop) Start / Stop measurement(s) MODE button (Mode) Switch mode Confirm setting Recharge indicator Display... -
Page 6: Symbols & Definitions
Product description Symbols & Definitions Medical Device Authorized representative in the European Community Manufacturer Manufactured Date Manufactured Country Model Number Catalogue Number Serial Number Unique Device Identifier Caution Type BF Applied part Direct Current Temperature limit Humidity limitation Atmospheric pressure limitation Refer to instruction for use WEEE symbol: Dispose or recycle this product in accordance with local laws or regulations that... -
Page 7: Initial Set Up
WatchBP Office Initial set up Attaching the power plug to the power adaptor Select a suitable plug attachment and attach to the power adaptor as shown here. Charge the battery completely When using the device for the first time, charge the battery until the recharge indicator on the device turns green. - Page 8 Set the Hide function - The device features a Hide function to prevent that the patient’s blood pressure is affect by blood pressure values displayed on the LCD screen of the device. Press button to switch the Hide Function ON or OFF. If the Hide function is ON it means that the blood pressure values will not be displayed during the blood pressure measurement.
-
Page 9: Before Using The Device
Circumference (inch) 22-32 8.7-12.6 32-42 12.6-16.5 M size ankle cuff is included as standard accessories. Contact Microlife or its authorized distributor to purchase cuffs. Use only cuffs provided by Microlife! Do not alter the tube or the reading may be unreliable. -
Page 10: Fitting The Cuff Properly
Fitting the arm cuff properly 1 Measure the patient’s upper-arm circumference to select the appropriate cuff. 2 Place the cuff over the upper arm so that the air 2–3cm tube and artery mark arrow point towards the lower (¾ to 1 inch) arm. -
Page 11: Taking Measurements Using The Watchbp Office Vascular
WatchBP Office Taking measurements using the WatchBP Office Vascular Turn on the power Turn on the device by pressing the button of the device. Connect the cuff(s) to the device Connect the cuffs to the device by inserting the cuff connector into the cuff connector socket. - Page 12 Taking measurements using the WatchBP Office Vascular 3 Set the Interval Time – between measurements - Press the button to scroll up and use button to scroll down between 15, 30, 60, 120, 180, 240, 300 seconds of Interval Time. Press button to confirm and enter AFIB Detector setting.
-
Page 13: Taking Measurement In Single Or Both Arm(S) Mode
WatchBP Office Taking measurement in Single or Both Arm(s) Mode button to start the measurement when in standby mode according to the Press the settings in Part A) when the measurement of one arm or both arms is selected. The device shows all the settings and then starts counting down the Resting Time before the first measurement is taken. -
Page 14: Taking Measurement Simultaneously In One Arm & One Ankle (For Abi Or Bapwv Assessment)
Taking measurements using the WatchBP Office Vascular Taking measurement simultaneously in one arm and one ankle (for simultaneous ankle-arm measurement) Properly fit the arm cuff to the upper arm and the ankle cuff to the leg of the preferred measurement side of the body. Make sure... -
Page 15: Using Watchbp Analyzer
1GHz CPU. 512MB Memory, 4.5GB free hard disk space, Microsoft Windows 7 SP1 / 8 / 10 Installing the Software Program The latest WatchBP Analyzer is available from the Microlife website. https://www.microlife.com/support/software-professional-products Double click the download installer and simply follow the instructions provided in the installation window on the computer screen. -
Page 16: Bluetooth Connectivity
• When the green recharge indicator is off, it means the recharge is complete. • When the green recharge indicator flashes, it means that there is a charging error. Make sure that the correct Mains Adaptor is used. If the condition persists, contact Microlife or the local distributor. -
Page 17: Using A Power Adaptor
WatchBP Office Using a power adaptor Only use the Mains Adaptor supplied with the device to recharge the device. 1) Plug the adaptor cable into the power socket of the device. DC 7.5V 1.5A 2) Plug the adaptor plug into the wall socket. DC 7.5V 1.5A The battery will be recharged if the device is attached to an AC power source. -
Page 18: Safety, Care, Accuracy Test And Disposal
Safety, care, accuracy test and disposal Safety and protection This device may only be used for the purposes as described in these instructions. The device comprises of sensitive components and must be treated with caution. The manufacturer cannot be held liable for damage caused by incorrect application. Carefully read the information in this section, and additional safety information marked by with “Warning”... -
Page 19: Device Cleaning And Disinfecting
(e.g. Being dropped). Please contact Microlife to arrange an accuracy test. Warning: The device and accessories are only serviced (tested & calibrated) by trained personnel of the Microlife distributor or manufacturer. Do not attempt to service or calibrate the device and accessories yourself. -
Page 20: Error Messages And Troubleshooting
Error messages and Troubleshooting If an error occurs during measurement, the measurement is interrupted and an error message «Er» is displayed. Error Description Potential cause and remedy The pulse signals on the cuff are too weak. Reposition the cuff "Er 1" Signal too and repeat the measurement. - Page 21 Turn off and turn on the device and repeat the measurement. If the error persists, contact Microlife or the local distributor. Possible hardware fault. Try again. If the error persists, contact Flash memory “Er A”...
-
Page 22: Technical Specifications
Compatibility: The stipulations of the EU Directive 94/42/EEC for Medical Devices Class lla have been fulfilled. Type BF applied part Microlife reserves the right to alter technical specifications without prior written notice. Warning: No modification of this device is allowed. -
Page 23: Guarantee Card
This device is covered by a 2 year guarantee from the date of purchase. During this guarantee period, at our discretion, Microlife will repair or replace the defective product free of charge. Opening or altering the device invalidates the guarantee. The following items are excluded from the guarantee: •... - Page 24 North / Central / South America Microlife USA, Inc. 1617 Gulf to Bay Blvd 2nd Floor, Suite A Clearwater, FL 33755, USA Tel. +1 727 442 5353 Fax +1 727 442 5377 Email: msa@microlifeusa.com www.watchbp.com IB WatchBP Office Vascular EN 4821...
