Microlife WatchBP Office Instruction Manual

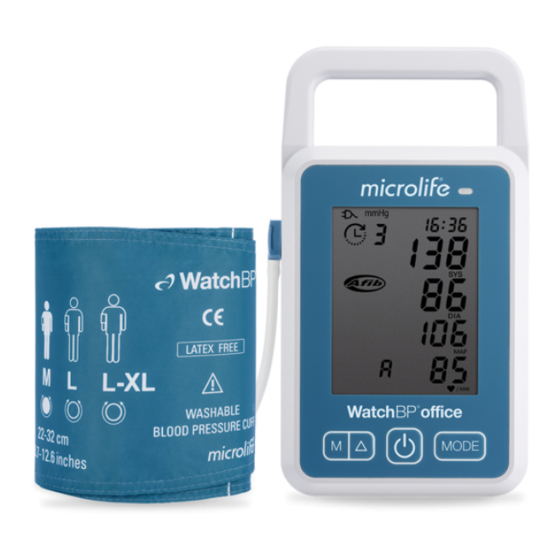

Professional automated office blood pressure monitor
Hide thumbs Also See for WatchBP Office:
Table of Contents

Advertisement

Quick Links

WatchBP
Office
Professional
Automated Office
Blood Pressure
Monitor
BP 3SK1-3B
Instruction Manual
1
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WatchBP Office and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Microlife WatchBP Office

Summary of Contents for Microlife WatchBP Office

  • Page 1 WatchBP Office Professional Automated Office Blood Pressure Monitor BP 3SK1-3B Instruction Manual...
  • Page 2 Preface Microlife WatchBP Office (BP3SK1-3B) is an Automated Office Blood Pressure (AOBP) Monitor. The device is a non-invasive digital blood pressure device using oscillometric technique and an upper-arm blood pressure cuff to measure systolic and diastolic blood pressures, pulse rate, mean arterial pressure (MAP) and pulse pressure (PP) for use in pediatric and adult populations with arm cuff circumference sizes ranging from 14 -52 cm.

  • Page 3: Table Of Contents

    WatchBP Office Table of Contents Product description ・Contents ............................4 ・Device Version ..........................4 ・Upgrading the version of the device ....................4 ・Product Overview ..........................5 ・Display .............................5 Initial set up ・Attaching the power plug to the power adapter ...................6 ・Power ON/OFF ..........................6 ・Set the date, time and the safeguard pressure ..................6 Before using the device ・Selecting the correct cuff ........................7...

  • Page 4: Contents

    The Atrial Fibrillation Detector and Central Blood Pressure measurement of the device can be activated through the WatchBP Analyzer. An activation key is needed for activation, the activation key is specific for the device as it matches the ID. Please contact Microlife or the local distributor for additional information.

  • Page 5: Product Overview

    WatchBP Office Product Overview Cuff Socket Power Adapter Socket Display USB port DC 7.5V 2.0A Battery Compartment M Button (Memory) To enter memory record and Down function in setting Up Button To enter SETTING and scroll up/switch Start/Stop Button Start measurement(s) base on the...

  • Page 6: Initial Set Up

    Initial set up Attaching the power plug to the power adapter Select a proper power plug and attach to the power adapter as shown below. Charge the battery completely When using the device for the first time, charge the battery until the recharge indicator on the device turns green.

  • Page 7: Before Using The Device

    12.5-20.5 Each cuff is provided with 130 cm air tube. Use only cuffs provided by Microlife! Contact Microlife or its authorized distributor to purchase cuffs. M and L size cuffs are included as standard accessories. Fitting the cuff properly 1 Place the cuff over the upper arm so that the air tube and artery mark arrow point towards the lower arm.

  • Page 8: Taking Measurements In Manual And Auto Mode

    Taking measurements in MANUAL and AUTO Mode Turn on the power Turn on the device by pressing the button of the device. Connect the cuff to the device Connect the cuff to the device by inserting the cuff connector into the cuff connector socket. Select an operation mode There are two measurement modes that can be used.
  • Page 9 WatchBP Office 4 Set the Atrial fibrillation (AFIB) detector – button to switch the AFIB Press the detector ON or OFF. Press button to confirm. Set the AFIB detector option appears only for the device version with AFIB detector. If the device has an activated AF indicator then it is witched on in Defaul.

  • Page 10: Taking Measurement In Auto Mode

    Taking measurement in AUTO Mode Select AUTO Mode. Press the Button to perform automatic measurements base on the settings of AUTO mode. The device shows all the settings and then starts counting down the Resting Time before the first measurement. The average measurement reading is displayed and saved after the measurements are complete.

  • Page 11: Taking Measurement In Manual Mode

    WatchBP Office Taking measurement in MANUAL Mode Select the MANUAL Mode if auscultatory blood pressure measurement is preferred above oscillometric blood pressure measurement. In MANUAL Mode, the device serves as a pressure gauge. No oscillometric measurements will be taken. Systolic and diastolic Korotkoff sounds amust be determined by a stethoscope placed over the brachial artery.

  • Page 12: Special Functions

    Special Functions Screening for atrial fibrillation during blood pressure measurement The device is designed to screen for atrial fibrillation during blood pressure measurements (optional) with high accuracy: a sensitivity of 98% and a specificity value of 92%*. If atrial fibrillation is detected this will be shown in the report. ...

  • Page 13: Accuracy Of The Central Blood Pressure Parameters

    The accuracy of central blood pressure parameters performed with this device can only reliably be determined against intra-arterial blood pressure measurement. The device is a certified equivalence with the WatchBP Office Central that has been validated against simultaneous recorded intra-arterial blood pressure measurement in 85 subjects and showed high accuracy ...

  • Page 14: Using Watchbp Analyzer

    Using WatchBP Analyzer Installing the Software Program The latest WatchBP Analyzer Software is available from the Microlife website. https://www.microlife.com/support/softwareprofessional-products Double click the download installer and simply follow the instructions provided in the installation window on the computer screen. Connecting the Device to a Computer Connect the device to the PC using the USB cable provided with the device.

  • Page 15: Bluetooth Connectivity

    • A green recharge indicator indicates that the recharge is completed. • A green and orange changing recharge indicator, means that there is a charging error. Make sure that of the correct Mains Adapter is used. If the condition persists, contact Microlife or the local distributor.

  • Page 16: Using A Power Adapter

    Using a power adapter Only use the Mains Aadapter supplied with the device to recharge the device. 1) Plug the adapter cable into the power socket of the device. 2) Plug the adapter plug into the wall socket. The battery will be recharged if the device DC 7.5V 2.0A is attached to an AC power source.

  • Page 17: Device Care

    We recommend the device to be tested for accuracy every 2 years or after mechanical impact (e.g. Being Do not iron the cuff! dropped). Please contact Microlife to arrange an accuracy test. Disposal Batteries and electronic instruments must be disposed of in accordance with the...

  • Page 18: Error Messages And Troubleshooting

    Error messages and Troubleshooting If an error occurs during measurement, the measurement is interrupted and an error message «Er» is displayed. Error Description Potential cause and remedy "Er 1" Signal too The pulse signals on the cuff are too weak. Reposition the cuff and repeat the measurement.

  • Page 19: Troubleshooting

    Re-position the cuff and repeat the “single fault measurement. Replace the batteries if necessary. If the error condition” persists, contact Microlife or the local distributor. “Er A” Flash memory Possible hardware fault. Try again. If the error persists, error contact Microlife or the local distributor.

  • Page 20: Technical Specifications

    • Device fulfills the stipulations of the standard IEC 60601-1-2. Compatibility: The stipulations of the EU Directive 93/42/EEC for Medical Devices Class all have been fulfilled. Type BF applied part Microlife reserves the right to alter technical specifications without prior written notice.
  • Page 21 This guarantee is valid only on presentation of the guarantee card completed by the owner confirming date of purchase or purchase receipt. Batteries and wearing parts are not covered by this guarantee. Name: Address: Date: Telephone: Email: Product: WatchBP Office Product number: BP3SK1-3B Date:...
  • Page 23 WatchBP Office...
  • Page 24 North / Central / South America Microlife USA, Inc. 1617 Gulf to Bay Blvd 2nd Floor, Suite A Clearwater, FL 33755, USA Tel. +1 727 442 5353 Fax +1 727 442 5377 Email: msa@microlifeusa.com www.watchbp.com IB WatchBP Office BP3SK1-3B EN 0419...
