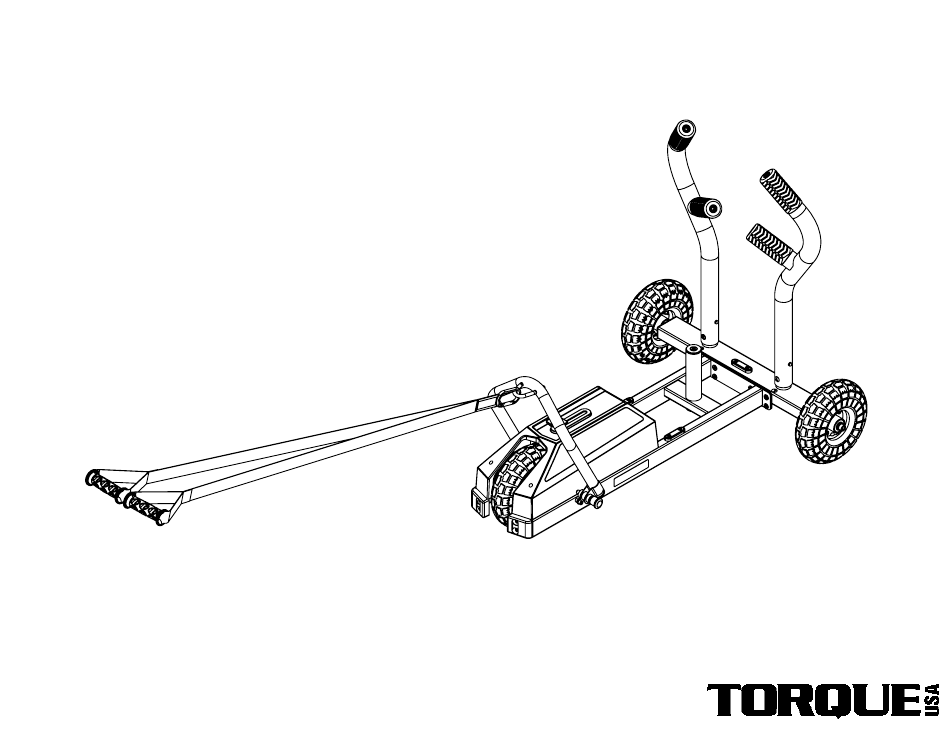

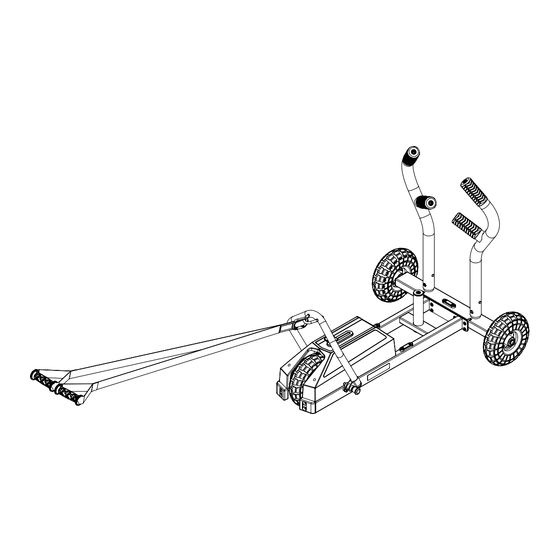

TANK M1 OPTIONS ASSEMBLY GUIDE
PART #: 5750601-A

Advertisement

loading
Need help?

Need help?

Do you have a question about the TANK M1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Torque TANK M1

Summary of Contents for Torque TANK M1

  • Page 1 TANK M1 OPTIONS ASSEMBLY GUIDE PART #: 5750601-A...

  • Page 2: Table Of Contents

    ITEM PART NUMBER DESCRIPTION 57144PA PTD ASSY, UPPER MOUNT 57145PA PTD ASSY, LOWER MOUNT 2001101 WASHER, FLAT 3/8 SAE ST ZN 2031101 SCREW, 3/8" LAG X 2.5"L CLEAR ZINC 5617001 V-STRAP, TANK (OPTIONAL) 5560801 ASSY, TANK TOW ROPE TOOLS NEEDED FOR ASSEMBLY: •...

  • Page 3: Wall Mount Hanger (Optional): Pages

    XTWMH WALL MOUNT HANGER (OPTIONAL) WARNING: THE UPPER MOUNT MUST BE ANCHORED TO THE WALL USING FOUR WALL ANCHORS SUITABLE FOR THAT PARTICULAR WALL CONSTRUCTION. 1-3/4" 36" 1-3/4" 6" (MIN) NOTES: FLOOR The images above show the anchoring hardware used for attaching to WARNING: THE LOWER MOUNT MUST BE ANCHORED TO THE WALL typical walls with wood studs spaced 16"...
  • Page 4 XTWMH WALL MOUNT HANGER (OPTIONAL) NOTE: THESE LOOPS ARE FOR ATTACHING RESISTANCE BANDS AND INERTIA WAVE XTTM1 MAX BAND RESISTANCE = 50 LBS. NOTE: THESE AREAS ARE FOR ATTACHING BATTLE ROPES RESISTANCE BANDS AND INERTIA WAVE MAX BAND RESISTANCE = 50 LBS.
  • Page 5 XTWMH WALL MOUNT HANGER (OPTIONAL) RIGHT PUSH HANDLE LEFT PUSH HANDLE...

  • Page 6: Optional Attachments: Pages

    Weight plates are not included. Weight plates are only needed to prevent skidding and lifting of the back wheels. Adding weight does not affect the resistance. To discover what accessories pair well with the TANK M1, visit our web site at: www.torquefitness.com/collections/tank-accessories. or by phone at 877-767-7835.
  • Page 7 Weight plates are not included. Weight plates are only needed to prevent skidding and lifting of the back wheels. Adding weight does not affect the resistance. To discover what accessories pair well with the TANK M1, visit our web site at: www.torquefitness.com/collections/tank-accessories. or by phone at 877-767-7835.

  • Page 8: Inspection & Lubrication

    INSPECTION & LUBRICATION INSPECTION: ATTENTION: PLEASE ENSURE THAT ALL TIRES ARE INFLATED TO 30 PSI. FAILURE TO DO SO MAY RESULT IN TANK VEERING DURING USE. Once a month, check for loose bolts on frame and wheels. Tighten if necessary. Once a month, remove shroud as shown on PAGE 9 and check that the chain and sprockets are clean, free of rust, dust and grime.

  • Page 9: Shroud Removal

    SHROUD REMOVAL - STEP 1 SHROUD REMOVAL - STEP 2 USE A PHILLIPS SCREW DRIVER TO LOOSEN AND REMOVE 6 SCREWS AS SHOWN. CAREFULLY LIFT SHROUD OFF M1. USE A PHILLIPS SCREW DRIVER TO BOTTOM VIEW LOOSEN AND REMOVE 2 SCREWS AND CAREFULLY REMOVE HANDLE.

  • Page 10: Chain Adjustment

    CHAIN ADJUSTMENT TO SET THE CORRECT CHAIN TENSION FOLLOW THESE STEPS: 1) TIP M1 BACK SO THAT IT RESTS ON THE REAR WHEELS AND PUSH HANDLES. AS SHOWN. 2) LOOSEN ALL FOUR BOLTS ONE FULL TURN EACH. (BOLT SHOULD BE LOOSE ENOUGH TO ALLOW THE BRAKE MODULE TO MOVE).

  • Page 11: Safety And Warning Notices

    DO NOT place more than 135 LBS. on the weight horn of the TANK M1. • DO NOT drop the weight plates onto the TANK M1. Doing so, may result in damage to the TANK M1. DO NOT use the TANK M1 in wet or slippery conditions.
