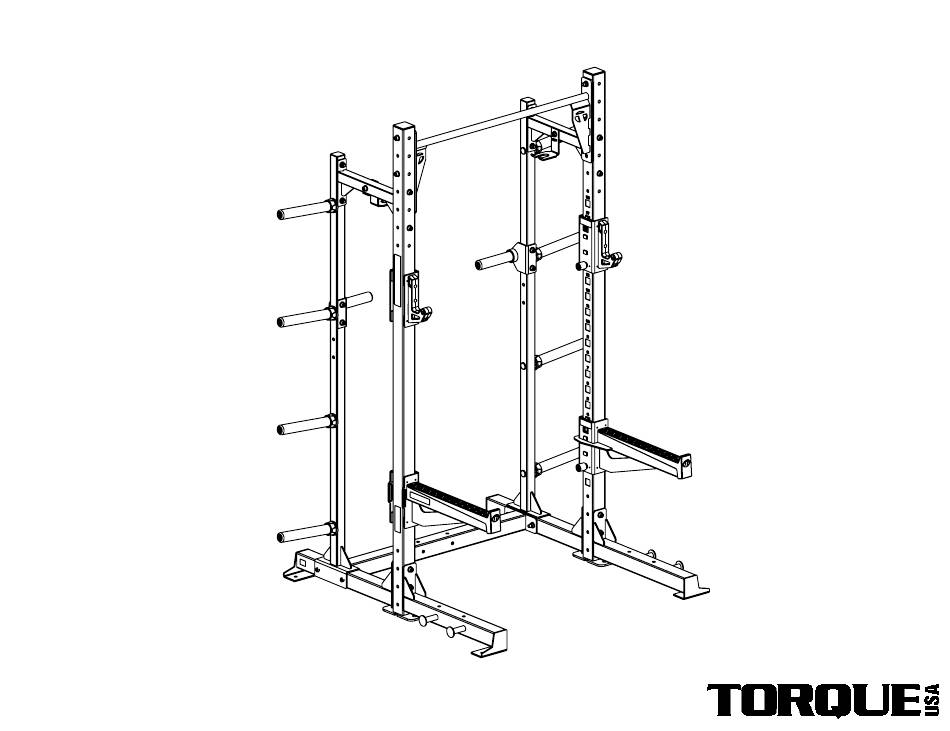

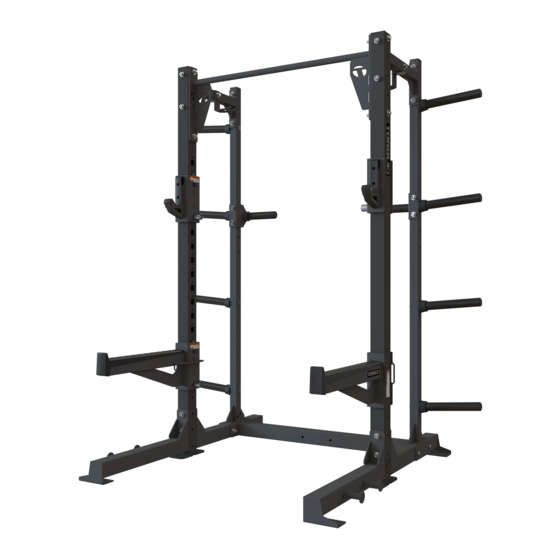

TR1 RACK ASSEMBLY GUIDE
VERSION: TR1-7SS, TR1-7HR, TR1-8HR, TR1-7DHRWS, TR1-8DHRWS
PART #: 5922401-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR1-7SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Torque TR1-7SS

Summary of Contents for Torque TR1-7SS

  • Page 1 TR1 RACK ASSEMBLY GUIDE VERSION: TR1-7SS, TR1-7HR, TR1-8HR, TR1-7DHRWS, TR1-8DHRWS PART #: 5922401-B...
  • Page 2 Children and pets must not be allowed near this machine. Supervise teenagers. This product is not a toy. • If unsure of proper use of this product, contact Torque Fitness Customer service at: 763-754-7533 (8:30 am - 5:00 pm CST). or (1-866-664-9894). www.service@torquefitness.com Important Safety Instructions for Assembling Equipment •...

  • Page 3: Warnings

    If any items are missing, page. To correctly measure the bolts, measure connections that should be securely tightened, contact Torque Fitness Customer service at: from underneath the bolt head to the end of the while secondary connections need to be loosen 763-754-7533 (8:30 am - 5:00 pm CST).

  • Page 4: Table Of Contents

    TABLE OF CONTENTS: • Warnings: Page 3 • General Notes: Page 4 Base Rack Assembly • 7' Squat Stand Assembly: Pages 5 - 10 • 7' / 8' Half Rack Assembly: Pages 11 - 22 • 7' / 8' Dual Half Rack with 6' Storage: Pages 23 - 37 Attachment Assembly •...

  • Page 5: 7' Squat Stand Assembly: Pages

    TR1 7' SQUAT STAND...
  • Page 6 ITEM NO. PART NUMBER DESCRIPTION 5880201 WLDMT, BASE CONNECTOR 5879701 WLDMT, FRONT LEFT BASE 58798PA PTD ASSY, REAR LEFT BASE 5879501 WLDMT, FRONT RIGHT BASE 5879601 WLDMT, REAR RIGHT BASE 2005816 BOLT, 1/2-13 X 4-1/4" (108mm) SOCKET HEAD 2001301 WASHER, FLAT 1/2 SAE ST ZN 2001401 NUT, 1/2-13 LK ST ZN 58465PA...
  • Page 7 STEP 1 - SQUAT STAND 1/2" LOCK NUT (4) 1/2" FLAT WASHER (8) 1/2 X 4 1/4" BOLT (4) NOTE: LOOSELY tighten bolt connections in this step.
  • Page 8 STEP 2 - SQUAT STAND 1/2 X 4 1/4" BOLT (4) 1/2" LOCK NUT (4) 1/2" FLAT WASHER (8) NOTE: LOOSELY tighten bolt connections in this step.
  • Page 9 STEP 3A - SQUAT STAND 1/2" LOCK NUT (4) OPTIONAL NINJA CROSS 1/2 X 4 1/4" BOLT (4) 1/2" FLAT WASHER (8) NOTE: THE STANDARD SINGLE CROSS IS SHOWN FOR ASSEMBLY. THE OPTIONAL NINJA CROSS, DOUBLE CROSS AND TRIPLE CROSS ASSEMBLE TO THE UNIT THE EXACT SAME WAY.
  • Page 10 STEP 3B - SQUAT STAND 1/2" LOCK NUT (4) 1/2 X 4 1/4" BOLT (4) 1/2" FLAT WASHER (8) NOTE: SECURELY tighten all bolt connections in this step and previous steps.

  • Page 11: 7' / 8' Half Rack Assembly: Pages

    TR1 HALF RACK...
  • Page 12 ITEM NO. PART NUMBER DESCRIPTION 5880201 WLDMT, BASE CONNECTOR 5879701 WLDMT, FRONT LEFT BASE 58798PA PTD ASSY, REAR LEFT BASE 5879501 WLDMT, FRONT RIGHT BASE 5879601 WLDMT, REAR RIGHT BASE 2005816 BOLT, 1/2-13 X 4-1/4" (108mm) SOCKET HEAD 2001301 WASHER, FLAT 1/2 SAE ST ZN 2001401 NUT, 1/2-13 LK ST ZN 58808PA...
  • Page 13 STEP 1 - 7' AND 8' HALF RACK 1/2" LOCK NUT (4) 1/2" FLAT WASHER (8) 1/2 X 4 1/4" BOLT (4) NOTE: FOLLOW THE EXACT SAME STEPS FOR ASSEMBLING THE 7' HALF RACK LOOSELY tighten bolt connections in this step.
  • Page 14 STEP 2 - 7' AND 8' HALF RACK 1/2" LOCK NUT (4) 1/2" FLAT WASHER (8) 1/2 X 3" BOLT (2) NOTE: FOLLOW THE EXACT SAME STEPS FOR ASSEMBLING THE 7' HALF RACK LOOSELY tighten bolt connections in this step.
  • Page 15 STEP 3 - 7' AND 8' HALF RACK 1/2" LOCK NUT (4) 1/2 X 4 1/4" BOLT (4) NOTE: 1/2" FLAT WASHER (8) FOLLOW THE EXACT SAME STEPS FOR ASSEMBLING THE 7' HALF RACK LOOSELY tighten bolt connections in this step.
  • Page 16 STEP 4 - 7' AND 8' HALF RACK 1/2 X 4 1/4" BOLT (4) 1/2 X 4 1/4" BOLT (4) 1/2" FLAT WASHER (8) 1/2" FLAT WASHER (8) 1/2" LOCK NUT (4) 1/2" LOCK NUT (4) 7' UPRIGHT (2) 8' UPRIGHT (2) 7' UPRIGHT ASSEMBLY 8' UPRIGHT ASSEMBLY NOTE:...
  • Page 17 STEP 5A - 8' HALF RACK 1/2" LOCK NUT (4) 1/2 X 4 1/4" BOLT (4) 1/2" FLAT WASHER (8) OPTIONAL NINJA CROSS NOTE: THE STANDARD SINGLE CROSS IS SHOWN FOR ASSEMBLY. THE OPTIONAL NINJA CROSS, DOUBLE CROSS AND TRIPLE CROSS ASSEMBLE TO THE UNIT THE EXACT SAME WAY.
  • Page 18 STEP 5B - 8' HALF RACK 1/2" LOCK NUT (4) 1/2 X 4 1/4" BOLT (4) 1/2" FLAT WASHER (8) NOTE: SEE STEP 5D FOR ASSEMBLING THE 7' UPRIGHT SECURELY tighten all bolt connections in this step and previous steps.
  • Page 19 STEP 5C - 7' HALF RACK 1/2" LOCK NUT (4) OPTIONAL NINJA CROSS 1/2 X 4 1/4" BOLT (4) 1/2" FLAT WASHER (8) NOTE: THE STANDARD SINGLE CROSS IS SHOWN FOR ASSEMBLY. THE OPTIONAL NINJA CROSS, DOUBLE CROSS AND TRIPLE CROSS ASSEMBLE TO THE UNIT THE EXACT SAME WAY.
  • Page 20 STEP 5D - 7' HALF RACK 1/2" LOCK NUT (4) 1/2 X 4 1/4" BOLT (4) 1/2" FLAT WASHER (8) NOTE: SECURELY tighten all bolt connections in this step and previous steps.
  • Page 21 STEP 6 - 7' AND 8' HALF RACK 1/2" LOCK NUT (4) 1/2" FLAT WASHER (8) 1/2 X 3" BOLT (4) NOTE: FOLLOW THE EXACT SAME STEPS FOR ASSEMBLING THE 7' HALF RACK SECURELY tighten all bolt connections in this step and previous steps.
  • Page 22 STEP 7 - 7' AND 8' HALF RACK 1/2" LOCK NUT (4) 1/2" FLAT WASHER (8) 1/2 X 3" BOLT (4) NOTE: FOLLOW THE EXACT SAME STEPS FOR ASSEMBLING THE 7' HALF RACK SECURELY tighten all bolt connections in this step and previous steps.

  • Page 23: 7' / 8' Dual Half Rack With 6' Storage: Pages

    TR1 DUAL HALF RACK WITH STORAGE...
  • Page 24 ITEM NO. PART NUMBER DESCRIPTION 5880201 WLDMT, BASE CONNECTOR 5879701 WLDMT, FRONT LEFT BASE 58798PA PTD ASSY, REAR LEFT BASE 5879501 WLDMT, FRONT RIGHT BASE 5879601 WLDMT, REAR RIGHT BASE 2005816 BOLT, 1/2-13 X 4-1/4" (108mm) SOCKET HEAD 2001301 WASHER, FLAT 1/2 SAE ST ZN 2001401 NUT, 1/2-13 LK ST ZN 58274PA...
  • Page 25 STEP 1 - 7' AND 8' DUAL HALF RACK WITH STORAGE 1/2" LOCK NUT (4) 1/2" FLAT WASHER (8) 1/2 X 4 1/4" BOLT (4) NOTE: Repeat this step 2X for both half racks. FOLLOW THE EXACT SAME STEPS FOR ASSEMBLING THE 7' HALF RACKS LOOSELY tighten bolt connections in this step.
  • Page 26 STEP 2 - 7' AND 8' DUAL HALF RACK WITH STORAGE 1/2" LOCK NUT (4) 1/2" FLAT WASHER (8) 1/2 X 3" BOLT (4) NOTE: LOOSELY tighten bolt connections in this step.
  • Page 27 STEP 3 - 7' AND 8' DUAL HALF RACK WITH STORAGE 1/2" LOCK NUT (4) 1/2" FLAT WASHER (8) 1/2 X 3" BOLT (4) NOTE: LOOSELY tighten bolt connections in this step.
  • Page 28 STEP 04 - DUAL HALF RACK & STORAGE 1/2" LOCK NUT (8) 1/2 X 4 1/4" BOLT (8) 1/2" FLAT WASHER (16) NOTE: FOLLOW THE EXACT SAME STEPS FOR ASSEMBLING THE 7' DOUBLE HALF RACK. LOOSELY tighten bolt connections in this step.
  • Page 29 STEP 05A - 8' DUAL HALF RACK WITH STORAGE 1/2" FLAT WASHER (16) 1/2 X 4 1/4" BOLT (8) 1/2" LOCK NUT (8) NOTE: 8' UPRIGHTS SHOWN, SEE NEXT STEP FOR ASSEMBLING THE 7' DOUBLE HALF RACK. LOOSELY tighten bolt connections in this step.
  • Page 30 STEP 05B - 7' DUAL HALF RACK WITH STORAGE 1/2" FLAT WASHER (16) 1/2 X 4 1/4" BOLT (8) 1/2" LOCK NUT (8) NOTE: 7' UPRIGHTS SHOWN, SEE PREVIOUS STEP FOR ASSEMBLING THE 8' DOUBLE HALF RACK. LOOSELY tighten bolt connections in this step.
  • Page 31 STEP 06A - 8' DUAL HALF RACK WITH STORAGE NOTE: THE STANDARD SINGLE CROSS IS SHOWN FOR ASSEMBLY. THE OPTIONAL NINJA CROSS, DOUBLE CROSS AND TRIPLE CROSS ASSEMBLE TO THE UNIT THE EXACT SAME WAY. IF YOU PURCHASED THE OPTIONAL MULTI GRIP CROSS, PLEASE REFER TO NEXT PAGE FOR ASSEMBLY OPTIONAL NINJA CROSS 1/2"...
  • Page 32 STEP 06B - 8' DUAL HALF RACK WITH STORAGE 1/2" LOCK NUT (8) 1/2" FLAT WASHER (16) 1/2 X 4 1/4" BOLT (8) NOTE: SECURELY tighten all bolt connections in this step and previous steps.
  • Page 33 STEP 06C - 7' DUAL HALF RACK WITH STORAGE NOTE: THE STANDARD SINGLE CROSS IS SHOWN FOR ASSEMBLY. THE OPTIONAL NINJA CROSS, DOUBLE CROSS AND TRIPLE CROSS ASSEMBLE TO THE UNIT THE EXACT SAME WAY. IF YOU PURCHASED THE OPTIONAL MULTI GRIP CROSS, PLEASE REFER TO NEXT PAGE FOR ASSEMBLY OPTIONAL NINJA CROSS 1/2"...
  • Page 34 STEP 06B - 7' DUAL HALF RACK WITH STORAGE 1/2" LOCK NUT (8) 1/2" FLAT WASHER (16) 1/2 X 4 1/4" BOLT (8) NOTE: SECURELY tighten all bolt connections in this step and previous steps.
  • Page 35 STEP 07 - 7' AND 8' DUAL HALF RACK WITH STORAGE XCREATE-6BS 1/2" FLAT WASHER (32) 1/2" LOCK NUT (16) 1/2 X 3" BOLT (16) XCREATE-6TRAY XCREATE-6BBS NOTE: SECURELY tighten all bolt connections in this step and previous steps.
  • Page 36 STEP 08 - 7' AND 8' DUAL HALF RACK WITH STORAGE 1/2" FLAT WASHER (8) 1/2" LOCK NUT (4) 1/2 X 3" BOLT (4) NOTE: Hold plate flat to the tube when tightening. NOTE: SECURELY tighten all bolt connections in this step and previous steps.
  • Page 37 STEP 09 - 7' AND 8' DUAL HALF RACK WITH STORAGE 1/2" FLAT WASHER (16) 1/2" LOCK NUT (8) 1/2 X 3" BOLT (8) NOTE: SECURELY tighten all bolt connections in this step and previous steps.
  • Page 38 TR1 RACKS - OPTIONS AND ATTACHMENTS...

  • Page 39: Bar Catch And Bar Support

    BAR CATCHES AND BAR SUPPORTS INSERT BAR SUPPORTS AND BAR CATCHES INTO DESIRED SLOTS ON UPRIGHTS. PUSH DOWN TO LOCK IN PLACE NOTE: WARNING LABEL TO REMOVE BAR SUPPORTS OR BAR CATCHES FROM UPRIGHTS, PULL SPRING PIN OUT TO UNLOCK. LIFT UP AND PULL OUT...

  • Page 40: Bar Catch Hanging Storage: Pages

    BAR CATCH STORAGE ATTACHMENT BOLT COVER (4) 1/2 X 3-1/4" BOLT (4) 1/2" LOCK NUT (4) BAR CATCH STORAGE ATTACHMENT (2) NOTE: SECURELY tighten all bolt connections in this step and previous steps.
  • Page 41 BAR CATCH STORAGE ATTACHMENT...

  • Page 42: Dip Step Attachment Anchor

    DIP STEP ATTACHMENT ANCHOR INSERT DIP ATTACHMENTS INTO DESIRED SLOTS ON UPRIGHTS. PUSH DOWN TO LOCK IN PLACE NOTE: WARNING LABEL TO REMOVE DIP ATTACHMENTS FROM UPRIGHTS, PULL SPRING PIN OUT TO UNLOCK. LIFT UP AND PULL OUT...

  • Page 43: Ground Rotational Trainer

    GROUND ROTATIONAL TRAINER 1/2 X 4 1/4" BOLT (2) 1/2" FLAT WASHER (4) XHMGRT 1/2" LOCK NUT (2) NOTE: SECURELY tighten all bolt connections in this step and previous steps.

  • Page 44: Battle Rope Anchor

    BATTLE ROPE ANCHOR 1/2 X 4 1/4" BOLT (2) 1/2" FLAT WASHER (4) XRACK-BRA 1/2" LOCK NUT (2) NOTE: SECURELY tighten all bolt connections in this step and previous steps.

  • Page 45: Upper Band Peg Attachments

    UPPER BAND PEG ATTACHMENTS LOOSEN REMOVE AND REINSTALL BOLTS IN THIS STEP. SECURELY TIGHTEN. NOTE: SECURELY tighten all bolt connections in this step and previous steps.

  • Page 46: Heavy Bag Mount: Pages

    UNIVERSAL HEAVY BAG MOUNT (STEP 1) LOOSEN REMOVE AND REINSTALL BOLTS IN THIS STEP. SECURELY TIGHTEN. NOTE: SECURELY tighten all bolt connections in this step.
  • Page 47 UNIVERSAL HEAVY BAG MOUNT (STEP 2)

  • Page 48: Relentless Rope Trainer: Pages

    RELENTLESS ROPE TRAINER LOOSEN REMOVE AND REINSTALL BOLTS IN THIS STEP. SECURELY TIGHTEN. BPLATE, XERT MOUNTING NOTE: SECURELY tighten all bolt connections in this step and previous steps.
  • Page 49 RELENTLESS ROPE TRAINER 1/2" X 1-1/4" BOLT (4) BPLATE, XERT MOUNTING 1/2" FLAT WASHER (4) 1/2" LOCK NUT (4) XERT NOTE: SECURELY tighten all bolt connections in this step and previous steps.

  • Page 50: Anchoring

    FLOOR ANCHORING 1294mm 1044mm NOTE: Measure dimension before 50.94in 41.10in anchoring. If necessary loosen bolted * SEE NOTES connections, adjust and retighten. 1338mm 52.68in NOTE: * If using a platform, THE PLATFORM SHOULD BE INSTALLED PRIOR TO ANCHORING. Anchor system to the floor referencing X-SERIES ANCHORING INSTRUCTIONS which can be downloaded at www.torquefitness.com.

  • Page 51: Maintenance

    Tighten spring pin nuts as needed. • FRAME: Wipe down frame with a damp cloth. SPRING PIN WARNING LABEL Torque Fitness 11201 Xeon Street NW Ste 101 GENERAL WARNING LABEL Coon Rapids, MN USA 55448 www.torquefitness.com or 763-754-7533 (8:30 am – 5:00 CST).
