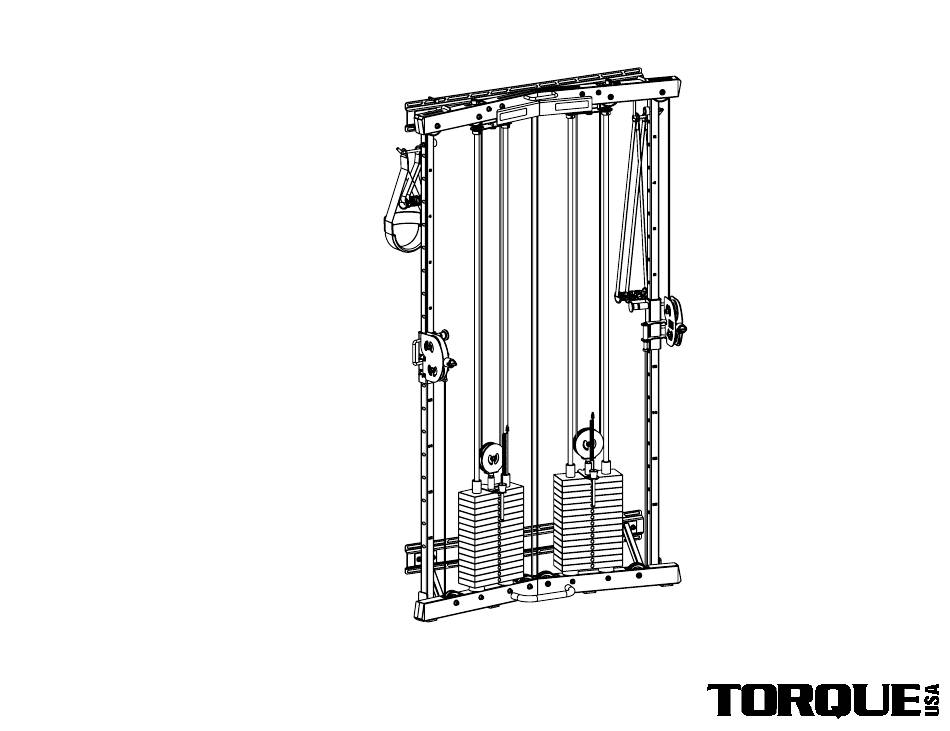

ANKER-7 ASSEMBLY GUIDE
VERSION: ANKER-7-001-150LB/200LB/225LB
PART #: 5843701-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANKER-7 and is the answer not in the manual?

Questions and answers

Related Manuals for Torque ANKER-7

Summary of Contents for Torque ANKER-7

  • Page 1 ANKER-7 ASSEMBLY GUIDE VERSION: ANKER-7-001-150LB/200LB/225LB PART #: 5843701-A...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Important safety instructions: • Important safety instructions for using equipment: Page 3 • Important safety instructions for assembling equipment: Page 3 • Obtaining service: Page 3 General Notes: • Unpacking equipment: Page 4 • Tools Required: Page 4 •...

  • Page 3: Important Safety Instructions For Using Equipment

    Do not disassemble, remove any parts or components or otherwise attempt to repair this product. DO NOT use product if product appears damaged. DO NOT attempt to fix a broken or jammed machine, obtain assistance from your authorized Torque Fitness Dealer. Failure to comply with these instructions will void any and all product warranties.

  • Page 4: General Notes

    • In a continual effort to improve our page. If any items are missing, contact Torque Fitness products, specifications are subject to Customer service at: 763-754-7533 (8:30 am - 5:00 pm •...

  • Page 5: Parts List

    ITEM ITEM PART NUMBER DESCRIPTION QTY. PART NUMBER DESCRIPTION QTY. 58418PA PTD ASSY, BOTTOM FRAME, MAIN 2009402 BOLT, 3/8-16 X 3/4" (19mm) ST HT SOCKET HEAD W/NP 58419PA PTD ASSY, TOP FRAME, MAIN 55181PA PTD ASSY, WEIGHT SELECTOR STORAGE PLATE 5666401 ASSY, WEIGHT STACK PIN 5842201...

  • Page 6: Assembly Instructions: Pages

    STEP 1 NOTE: Numbers and CARRIAGE direction must match as shown.
  • Page 7 STEP 2 3/8 X 2-1/4" BOLT (2) NOTE: SECURELY tighten, DO NOT OVERTIGHTEN. 3/8 LOCK NUT (2) 3/8 X FLAT WASHER (6) 3/8 X 1-1/2" BOLT (2) SECURELY TIGHTEN bolt connections in this step.
  • Page 8 STEP 3 To end see next step Pulley may be temperarily removed to aide in CABLE routing. Pulley may be temperarily removed to aide in cable routing. To start thread a JAM NUT on bolt end of CABLE. Thread bolt end of CABLE into CARRIAGE as shown.
  • Page 9 STEP 4 3) Slide on to CABLE end 2) Slide over CABLE end 4) Assemble 24 TO 26 1) Slide over CABLE end SECURELY TIGHTEN bolt connections in this step. Repeat this step on both sides.
  • Page 10 Predrill holes to a depth of 2.5" using a 1/4" drill bit for anchoring using the included hardware. ANKER-7 is shown being mounted to a typical wall with wood studs NOTE: Dimensions shown are for reference only.
  • Page 11 STEP 5B WARNING: THE ANKER-7 MUST BE ANCHORED TO THE WALL USING 12 OR MORE WALL ANCHORS SUITABLE FOR THAT PARTICULAR WALL CONSTRUCTION. Level sides before tightening. NOTES: The image above shows how to attach the gym to the wall using wall anchors to a typical wood stud wall.
  • Page 12 STEP 6 Loosen 1/2 turn Loosen 1/2 turn NOTE: LOOSEN BOLTS 1/2 TURN. Do not remove bolts (8). Loosen 1/2 turn NOTES: Loosen bolts to prevent damage to the frame or wall when loading plates. Carpet and other soft surfaced flooring may cause movement of the frame when loading weight plates.
  • Page 13 STEP 7A & 7B NOTE: 2 GUIDE RODS SHOWN ASSEMBLED. TEMPORARILY REMOVE BOLTS, WASHERS, AND NUTS...
  • Page 14 STEP 8 200 LB OPTION 150 LB OPTION 225 LB OPTION...
  • Page 15 STEP 9 NOTE Once bolts have been installed push down the guide rods and slide the collars to the top of the guide rod. Securely tighten set screws. NOTE Install hardware removed in Step 7A. Lift up on guide rods and insert bolts. Tighten until hardware doesn't move.
  • Page 16 STEP 10 Tighten bolts Tighten bolts NOTE: SECURELY TIGHTEN bolts (8) Tighten bolts SECURELY tighten all bolt connections in this step and in previous steps.
  • Page 17 STEP 11 NOTE: Apply the weight stack labels to the right of the holes on weight plates by following the installation instructions printed on the label. NOTE: Discard labels 16-20 NOTE: After weight stack labels have been applied, use a rubber mallet to carefully install insert plug of the weight stack pin into the center hole of the head plate.
  • Page 18 STEP 12 1-1/2" NOTE: SECURELY tighten jam nut. ASSEMBLED VIEW SECURELY tighten all bolt connections in this step.
  • Page 19 STEP 13 Once assembled pull on the cable to ensure the cables are routed properly. If the cable does not feel smooth or if it is binding. Visually check the Temporarily remove bolts washers and nuts. cables and pulleys to ensure the cables are Remove and replace pulley seating the cable properly seated.

  • Page 20: Cable Adjustments

    STEP 14 NOTE: If there is a gap between the head plate and first plate, loosen jam nut and turn threaded end counter clockwise until the head plate touches the first plate. SECURELY tighten jam nut. To add tension to the cable, turn the threaded end clockwise.
  • Page 21 STEP 15 3/8 X 2-1/4" BOLT (2) 3/8 LOCK NUT (2) NOTE: SECURELY tighten bolts in this step, DO NOT OVERTIGHTEN. SECURELY tighten all bolt connections in this step.
  • Page 22 STEP 16 3/8 X 1-3/4" BOLT (2) 3/8 FLAT WASHER (4) 3/8 LOCK NUT (2) SECURELY tighten all bolt connections in this step.

  • Page 23: Maintenance

    Tighten spring pin nuts as needed. FRAME: Wipe down and damp cloth. GRIPS: Inspect and replace if they appear worn or damaged. For customer service contact Torque Fitness Customer service at: 763-754- 7533 (8:30 am - 5:00 pm CST). or Email: service@torquefitness.com...

  • Page 24: Anker Pull Up Attachment: Pages

    STEP 18 (OPTIONAL PULL UP ATTACHMENT) 1/2 X 3/4" BOLT (2) 1/2" FLAT WASHER (2) ANKER-PUA NOTES: Wall brackets hidden for assembly clarity. SECURELY tighten all bolt connections in this step and previous steps.

  • Page 25: Xg-Fib Docking Bumpers

    STEP 18 (OPTIONAL BENCH BUMPER FOR XG-FIB) XG-FIB Loosen and remove BOLTS (2), WASHERS (4) and NUTS (2). Discard 2 WASHERS. Replace WASHERS (2) WITH BOLT COVERS (2). Reinstall hardware from previous step. SECURELY TIGHTEN. NOTE: The XG-FIB is shown. SECURELY tighten all bolt connections in this step.

  • Page 26: Resistance Ratio Chart

    ONE HEAD PLATE FOURTEEN 10 LB PLATES 150 LB STACK ONE HEAD PLATE FOUR 10 LB PLATES 15 LB PLATES 200 LB STACK...
  • Page 27 ONE HEAD PLATE FOURTEEN 15 LB PLATES 225 LB STACK...
