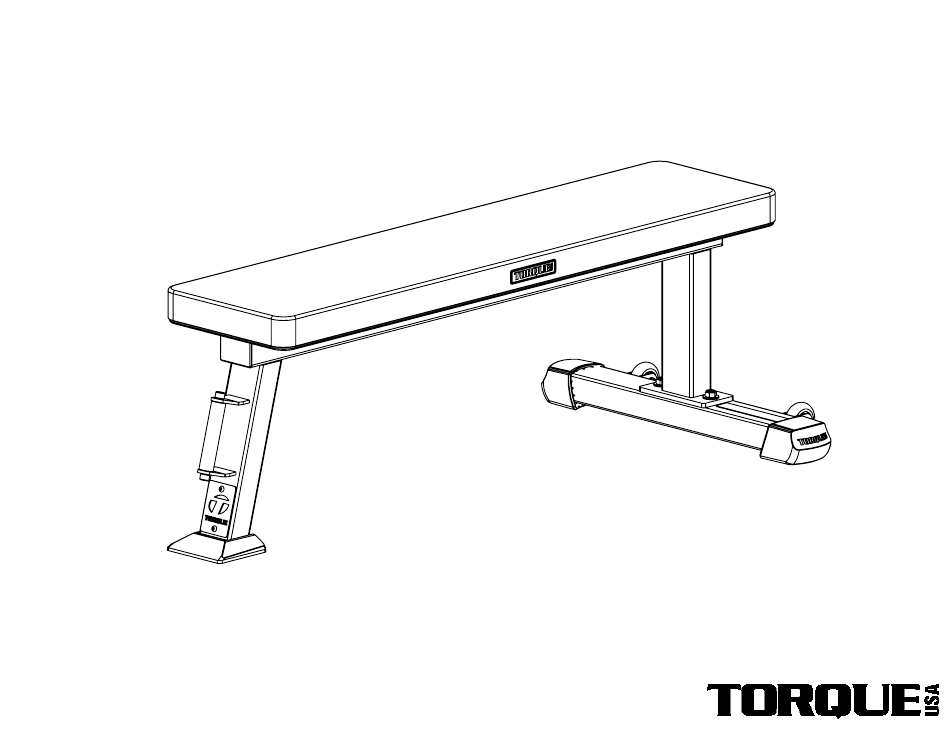

- Page 1 X-GYM FLAT BENCH ASSEMBLY GUIDE VERSION: XG-FB-101 PART #: 5854101-A...
- Page 2 TABLE OF CONTENTS Important safety instructions: • Important safety instructions for using equipment: Page 3 • Important safety instructions for assembling equipment: Page 3 • Obtaining service: Page 3 General Notes: • Unpacking equipment: Page 4 • Tools Required: Page 4 •...
- Page 3 DO NOT use product if product appears damaged. DO NOT attempt to fix a broken or jammed machine, contact Torque Fitness Customer service at: 763-754-7533 (8:30 am - 5:00 pm CST). Failure to comply with these instructions will void any and all product warranties.
- Page 4 • In a continual effort to improve our page. If any items are missing, contact Torque Fitness products, specifications are subject to • Insert all bolts in the direction indicated in Customer service at: 763-754-7533 (8:30 am - 5:00 pm change.
- Page 5 NUT, HEX LOCKING M10-1.5 GR 10 CLEAR ZINC 58503PA PAD ASSY, FLAT BENCH 2042801 SHCS M8 X 1.25 X 20 CZ 2042401 WASHER, M8 X 16 X 1.6 CZ 2034701 WASHER, LOCK, M8 X 12.7 X 2.0, CZ 5191601 ALLEN WRENCH, M8 5854101 ASSEMBLY INSTRUCTIONS, XG-FB-101...
- Page 6 STEP 1 M10 X 70 MM CARRIAGE BOLT (2) M10 FLAT WASHER (2) M10 LOCK NUT (2) SECURELY tighten all bolt connections in this step...
- Page 7 STEP 2 M8 X 20 MM BOLT (6) M8 LOCK WASHER (6) M8 FLAT WASHER (6) SECURELY tighten all bolt connections in this step...
- Page 8 FRAME: Wipe down with a damp cloth UPHOLSTERY: Wipe down and dry after each use. Clean and condition periodically. For customer service contact Torque Fitness Customer service at: 763-754- 7533 (8:30 am - 5:00 pm CST). www.service@torquefitness.com Serial Label...
