TANK M1 ASSEMBLY GUIDE

VERSION: XTTM1-RPH-101

PART #: 5706201-B

Need help?

Do you have a question about the TANK M1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Torque TANK M1

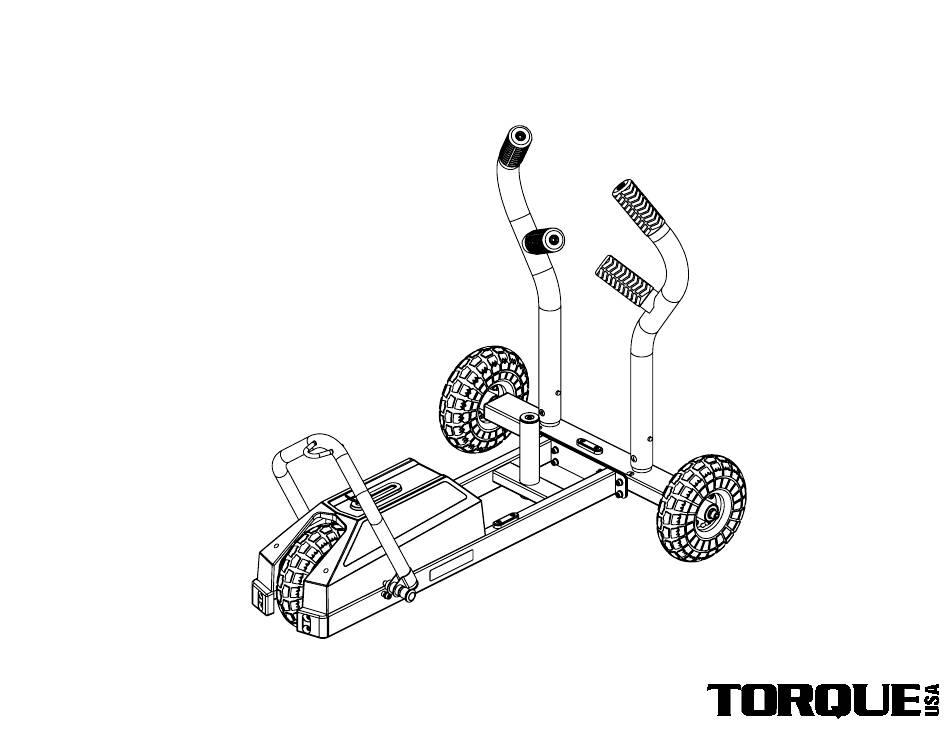

Page 1 TANK M1 ASSEMBLY GUIDE VERSION: XTTM1-RPH-101 PART #: 5706201-B...
Page 2 6MM ALLEN WRENCH (INCLUDED) • AIR PUMP WITH GAUGE • PHILLIPS SCREW DRIVER TABLE OF CONTENTS: • TANK M1 ASSEMBLY: PAGES 3 - 5 • TANK M1 ADJUSTMENTS: PAGES 6 - 7 • TANK M1 OPERATION: PAGE 8 • OPTIONAL ATTACHMENTS: PAGE 9-10 •...
Page 3 STEP 1 NOTE: LOOSELY tighten bolt connections in this step.
Page 4 STEP 2 NOTE: BEFORE ASSEMBLING TIRES, CHECK TIRE PRESSURE. MAKE SURE TIRES ARE INFLATED TO 30 PSI NOTE: AFTER TIRES HAVE BEEN SECURELY ASSEMBLED, SECURELY TIGHTEN THESE BOLTS. NOTE: SECURELY tighten all bolt connections in this step and previous step.
Page 5 STEP 3 NOTE MATCH THE "R" LABEL ON THE RIGHT PUSH NOTE: HANDLE WITH THE "R: LABEL ON THE REAR FRAME ALIGN THE PIN IN THE PUSH HANDLES WITH THE SLOT IN THE RECEIVER TUBE NOTE MATCH THE "L" LABEL ON THE LEFT PUSH HANDLE WITH THE "L: LABEL ON THE REAR FRAME...
Page 6 TANK M1 RESISTANCE ADJUSTMENT PULL BACK ADJUSTER TO INCREASE RESISTANCE POSITION N: NEUTRAL POSITION 1: LOW RESISTANCE POSITION 2: MEDIUM RESISTANCE POSITION 3: HARD RESISTANCE...
Page 7 TANK M1 PUSH/PULL BAR ADJUSTMENT PUSH/PULL BAR PULL SPRING PIN AND ROTATE PUSH/PULL BAR FORWARD...
Page 8 TANK OPERATION PUSH PUSH PULL See following pages for optional accessories PUSH MAX WEIGHT PLATES: 2 - 45 LB BUMPER PLATES 3 - 45 LB GRIP PLATES NOTE: Weight plates are not included. Weight plates are only needed to prevent skidding and lifting of the back wheels. Adding weight does not affect the resistance.
Page 9 Weight plates are not included. Weight plates are only needed to prevent skidding and lifting of the back wheels. Adding weight does not affect the resistance. To discover what accessories pair well with the TANK M1, visit our web site at: www.torquefitness.com/collections/tank-accessories. or by phone at 877-767-7835.
Page 10 Weight plates are not included. Weight plates are only needed to prevent skidding and lifting of the back wheels. Adding weight does not affect the resistance. To discover what accessories pair well with the TANK M1, visit our web site at: www.torquefitness.com/collections/tank-accessories. or by phone at 877-767-7835.
Page 11 XTWMH WALL MOUNT HANGER (OPTIONAL) WARNING: THE UPPER MOUNT MUST BE ANCHORED TO THE WALL USING FOUR WALL ANCHORS SUITABLE FOR THAT PARTICULAR WALL CONSTRUCTION. 1-3/4" 36" 1-3/4" 6" (MIN) NOTES: FLOOR The images above show the anchoring hardware used for attaching to WARNING: THE LOWER MOUNT MUST BE ANCHORED TO THE WALL typical walls with wood studs spaced 16"...
Page 12 XTWMH WALL MOUNT HANGER (OPTIONAL) NOTE: THESE LOOPS ARE FOR ATTACHING RESISTANCE BANDS AND INERTIA WAVE MAX BAND RESISTANCE = 50 LBS. NOTE: THESE AREAS ARE FOR ATTACHING BATTLE ROPES RESISTANCE BANDS AND INERTIA WAVE MAX BAND RESISTANCE = 50 LBS.
Page 13 XTWMH WALL MOUNT HANGER (OPTIONAL)
Page 14 INSPECTION & LUBRICATION INSPECTION: ATTENTION: PLEASE ENSURE THAT ALL TIRES ARE INFLATED TO 30 PSI. FAILURE TO DO SO MAY RESULT IN TANK VEERING DURING USE. Once a month, check for loose bolts on frame and wheels. Tighten if necessary. Once a month, remove shroud as shown on PAGE 16 and check that the chain and sprockets are clean, free of rust, dust and grime.
Page 15 SHROUD REMOVAL - STEP 1 SHROUD REMOVAL - STEP 2 USE A PHILLIPS SCREW DRIVER TO LOOSEN AND REMOVE 6 SCREWS AS SHOWN. CAREFULLY LIFT SHROUD OFF M1. USE A PHILLIPS SCREW DRIVER TO BOTTOM VIEW LOOSEN AND REMOVE 2 SCREWS AND CAREFULLY REMOVE HANDLE.
Page 16 CHAIN ADJUSTMENT TO SET THE CORRECT CHAIN TENSION FOLLOW THESE STEPS: 1) TIP M1 BACK SO THAT IT RESTS ON THE REAR WHEELS AND PUSH HANDLES. AS SHOWN. 2) LOOSEN ALL FOUR BOLTS ONE FULL TURN EACH. (BOLT SHOULD BE LOOSE ENOUGH TO ALLOW THE BRAKE MODULE TO MOVE).
Page 17 DO NOT place more than 135 LBS. on the weight horn of the TANK M1. • DO NOT drop the weight plates onto the TANK M1. Doing so, may result in damage to the TANK M1. DO NOT use the TANK M1 in wet or slippery conditions.

This manual is also suitable for:

Xttm1-rph-101 5706201-b
