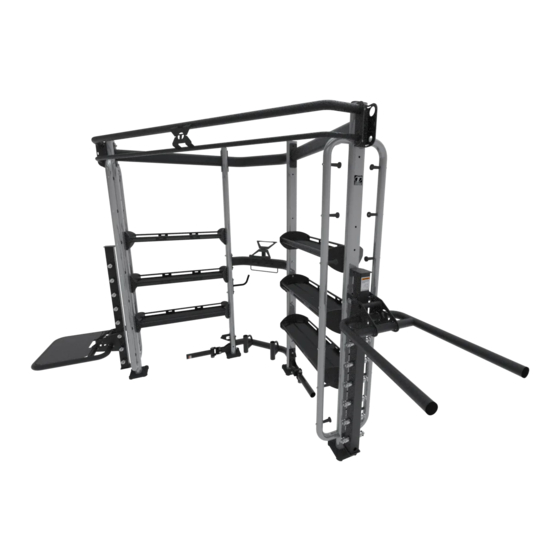

- Page 1 X-LAB-EDGE Assembly Guide VERSION: XLE-X2 PART #: 5518601-A...
- Page 2 STEP 1 XLAB BOOT XLAB BOOT XLAB-501 XLAB-501 PAGE 2...
-
Page 3: Loosely Assemble Bolt Connections In This Step
STEP 2 XLAB-501 XLAB-501 1/2" LOCK NUT (4) 1/2" FLAT WASHER (8) 1/2 X 3-3/4" BOLT (4) GRT-101 GRT-101 BATTLE ROPE CONNECTOR LOOSELY assemble bolt connections in this step. PAGE 3... - Page 4 STEP 3 TOP CONNECTOR 1/2" LOCK NUT (4) 1/2" FLAT WASHER (8) 1/2 X 3-1/2" BOLT (4) XLAB-401 XLAB-401 XLAB-501 XLAB-501 LOOSELY assemble bolt connections in this step. PAGE 4...
-
Page 5: Xlab
STEP 4 XLAB-301 XLAB-301 XLAB-BOOT XLAB-BOOT PAGE 5... - Page 6 STEP 5 XLAB-401 XLAB-401 BT-103 1/2 X 3-3/4" BOLT (4) 1/2" FLAT WASHER (8) 1/2" LOCK NUT (4) 1/2 X 5-3/4" BOLT (2) SUSPENSION CROSS XLAB-301 XLAB-301 LOOSELY assemble bolt connections in this step. PAGE 6...
- Page 7 STEP 6 XLAB-501 XLAB-501 XLAB-301 XLAB-301 AT-101 AT-101 1/2 X 3-3/4" BOLT (4) 1/2 X 3-3/4" BOLT (4) 1/2" FLAT WASHER (8) 1/2" FLAT WASHER (8) 1/2" LOCK NUT (4) 1/2" LOCK NUT (4) LOOSELY assemble bolt connections in this step. PAGE 7...
- Page 8 STEP 7 XLAB-501 XLAB-501 CONNECTOR XLAB-301 1/2 X 3-1/4" 1/2 X 3-1/4" BOLT BOLT AT-101 AT-101 1/2 X 3-3/4" BOLT (4) 1/2 X 3-3/4" BOLT (4) XLAB-301 1/2" FLAT WASHER (12) 1/2" FLAT WASHER (12) BATTLE ROPE 1/2" LOCK NUT (6) 1/2"...
- Page 9 STEP 8 AT-101 1/2 X 3-3/4" BOLT (4) 1/2" FLAT WASHER (8) XLAB-301 1/2" LOCK NUT (4) XLAB-501 XLAB-AA-101 1/2" FLAT WASHER (2) 1/2 X 3-1/2" BOLT 1/2" LOCK NUT LOOSELY assemble bolt connections in this step. PAGE 9...
- Page 10 STEP 9 AT-101 1/2 X 3-3/4" BOLT (4) 1/2" FLAT WASHER (8) XLAB-301 1/2" LOCK NUT (4) XLAB-501 ATTENTION: AFTER THIS STEP HAS BEEN COMPLETED, SECURELY TIGHTEN ALL BOLT CONNECTIONS IN THIS STEP AND FROM THE PREVIOUS STEPS. PAGE 10...
- Page 11 STEP 10: XCC-101 ASSEMBLY XCC-101 ATTENTION: ASSEMBLE THE XCC-101 TO THE XLAB EDGE USING PAGE 11 THE INSTRUCTIONS INCLUDED WITH THAT PRODUCT.
-

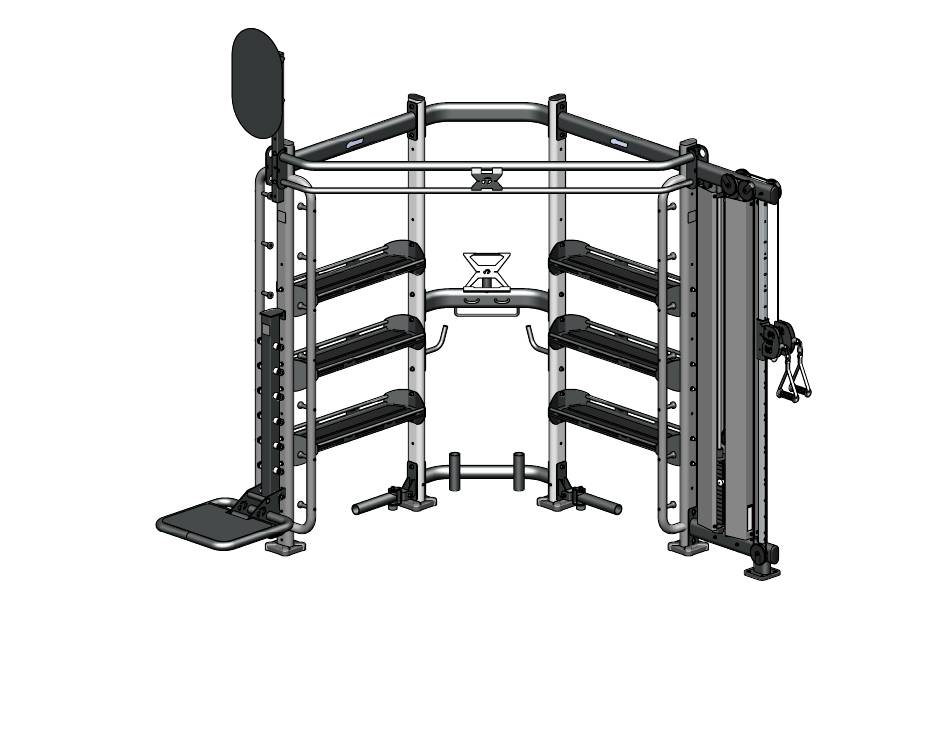

Page 12: Assembled View
STEP 11 HOOKS PEGS XLAB-AA-101 ASSEMBLED VIEW WARNING! MAKE SURE THAT BOTH HOOKS OF PLYO STEP ARE SEATED XLAB-PLYO STEP SECURELY IN GROOVES OF PEGS ON ATTACHMENT ANCHOR PAGE 12 BEFORE PERFORMING ANY EXERCISES. - Page 13 ANCHOR STEPS: 1) Position machine in desired location. 2) Trace around the four base plates and the four holes in each base plate. 3) Move machine. 4) Drill anchor holes. Follow instructions on anchor bolt packaging. 5) Vacuum dust out of each anchor hole. 5) Move machine back over anchor holes.
