TANK M3 ASSEMBLY GUIDE
VERSION: XTTM3-MPH-103
PART #: 6035601-A

Advertisement

loading
Need help?

Need help?

Do you have a question about the TANK M3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Torque TANK M3

Summary of Contents for Torque TANK M3

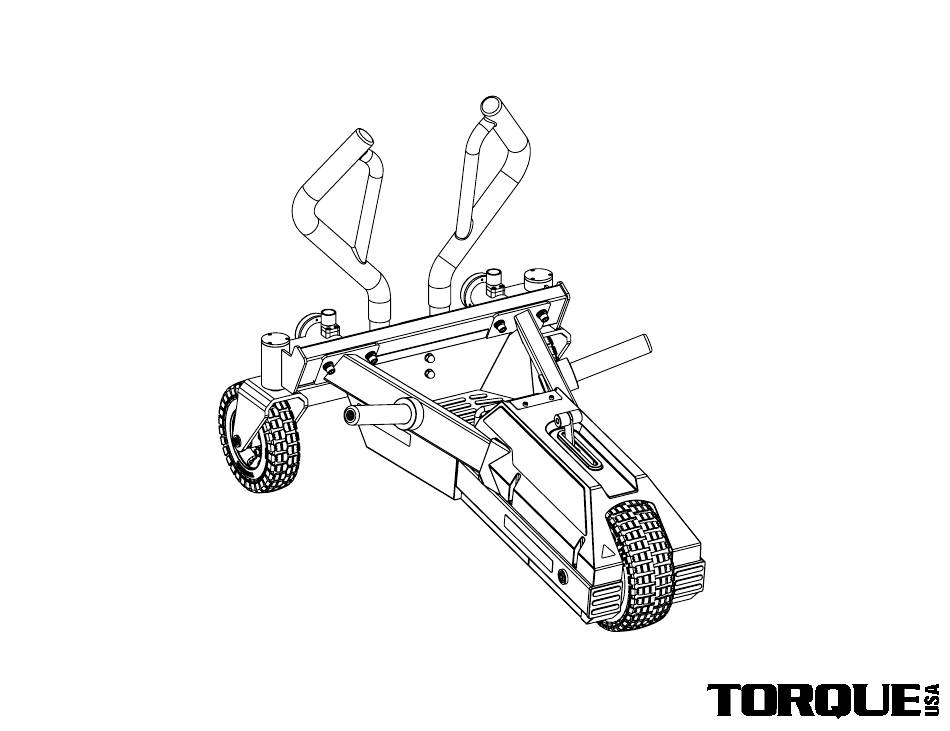

  • Page 1 TANK M3 ASSEMBLY GUIDE VERSION: XTTM3-MPH-103 PART #: 6035601-A...
  • Page 2 PRODUCT WEIGHT: 209 lbs. (95 kgs.) 32.4in 822.0mm 36.9in 936.6mm 53.3in 1354.6mm 73.9in 1877.0mm...
  • Page 3 SCREW, M12-1.75 X 30L SOC HD GR 12.9 CLEAR ZINC 8 TABLE OF CONTENTS: 5938401 WLDMT, TOW HOOK-STAINLESS • TANK M3 ASSEMBLY: PAGES 4 - 10 2048801 WASHER, FLAT,M10 X 20 X 2.0, SS • TANK M3 ADJUSTMENT: PAGE 11 2052501 M10 X 1.5 ACORN NUT-CZ...
  • Page 4 STEP 1 Place styrofoam insert from packaging under- neath Front Chassis (1) to aid in assembly. NOTE: LOOSELY tighten bolt connections in this step.
  • Page 5 STEP 2 NOTE: SECURELY tighten all bolt connections in this step and and in STEP 1.
  • Page 6 STEP 3 NOTE: SECURELY tighten all bolt connections in this step.
  • Page 7 STEP 4 Remove cardboard insert from both swivel wheels...
  • Page 8 STEP 5 NOTE: Max weight: 270 lbs. (122 kgs.). Load weight equally on both sides. WARNING: Remove weight from M3 when not TOP VIEW in use. Leaving the weights on M3 could cause the tires to deform. NOTE: SECURELY tighten all bolt connections in this step.
  • Page 9 To push Tank, insert Right and Left Handles into Rear Chassis as shown REAR VIEW HANDLES INSTALLED NOTE: Max weight: 270 lbs. (122 kgs.). Load weight equally on both sides. WARNING: Remove weight from M3 when not in use. Leaving the weights on M3 could cause the tires to deform.
  • Page 10 WHEELBARROW AND DEAD LIFT TRAINING To remove Handles, pull up on Spring Pins and pull Handles out. Spring Pins To perform wheelbarrow or deadlift exercises, fully insert Left and Right Handles horizontally into Rear Chassis as shown. NOTE: Ensure Spring Pins are fully engaged. WARNING: DO NOT drop M3 from Handles.
  • Page 11 M3 RESISTANCE ADJUSTMENT ADJUST HANDLE FORWARD TO INCREASE RESISTANCE...
  • Page 12 CHAIN ADJUSTMENT, STEP 1 Use 5mm Allen Wrench (included) to remove Adjuster Knobs.
  • Page 13 CHAIN ADJUSTMENT, STEP 2 Use a Phillips Screwdriver to remove M3 Shroud...
  • Page 14 CHAIN ADJUSTMENT, STEP 3 To tighten Chain, Push Brake Module back in direction of arrow. Using a 6mm Allen NOTE: DO NOT overtighten Wrench, loosen 4 Chain. Leave a small amount bolts underneath of slack (up and down play) Front Chassis. in the chain for best performance.
  • Page 15 XTTM3-C is not included with TANK M3. Console installation and user manual is located in Console box. NOTE: To discover what accessories pair well with the Tank M3, visit our website at: www.torquefitness.com/collections/tank-accessories. Or by phone: 763-754-7533 (8:30 am - 5:00 pm CST).
  • Page 16 Most bicycle shops carry a variety of different lubricants and can recommend a lubricant based on the conditions where the TANK will be used. Torque Fitness 11201 Xeon Street NW Ste 101 Coon Rapids, MN USA 55448 www.torquefitness.com...

  • Page 17: Important Safety Instructions

    Wear shoes with rubber or high-traction soles. High heels, dress shoes, sandals or bare feet are not suitable for use with the TANK M3. DO NOT attempt to use the TANK M3 for any purposes other than that for which it was intended. •...
