STEP 1 NOTE: LOOSELY tighten bolt connections in this step...
Page 5
STEP 2 NOTE: After tires have been securely assembled, SECURELY tighten these bolts NOTE: SECURELY tighten all bolt connections in this step and previous step...
Page 6

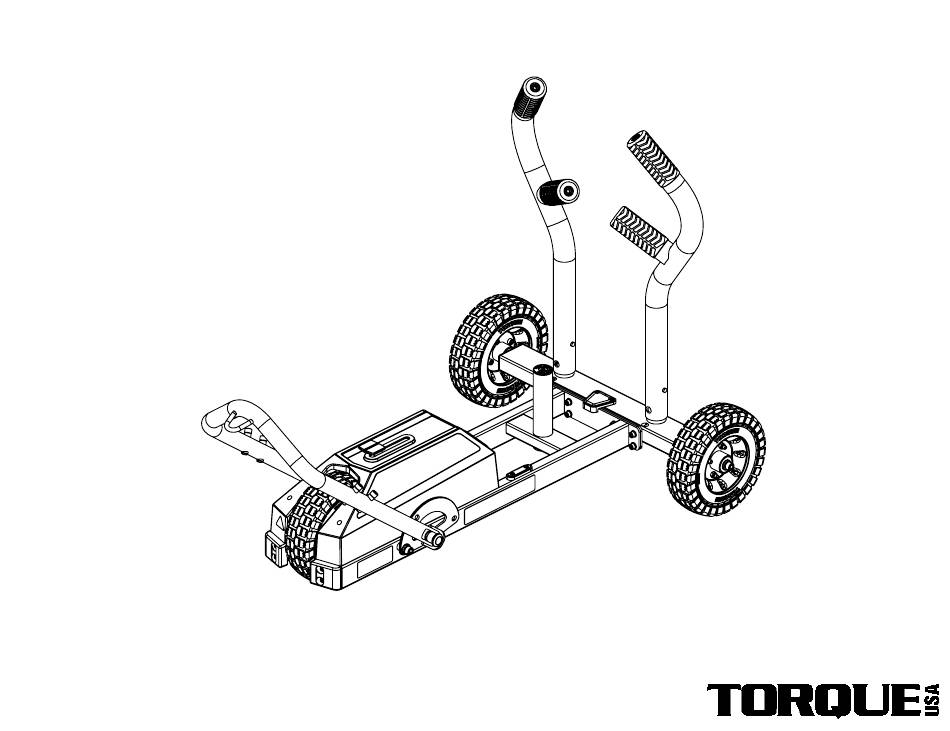

STEP 3 NOTE Match "R" LABEL on RIGHT PUSH HANDLE with "R" LABEL on REAR FRAME NOTE: Align pin in PUSH HANDLES with slot in RECEIVER TUBE NOTE Match "L" LABEL on LEFT PUSH HANDLE with "L" LABEL on REAR FRAME...
TANK M1 RESISTANCE ADJUSTMENT PULL BACK ADJUSTER TO INCREASE RESISTANCE POSITION N: NEUTRAL POSITION 1: LOW RESISTANCE POSITION 2: MEDIUM RESISTANCE POSITION 3: HARD RESISTANCE...
TANK OPERATION USE HANDLES AS INTENDED AND PUSH ONLY HORIZONTALLY AND WITH TWO HANDS TO ENSURE PROPER TRACKING PUSH PULL See following pages for optional accessories PUSH PUSH MAX WEIGHT PLATES: 2 - 45 LB BUMPER PLATES 3 - 45 LB GRIP PLATES NOTE: Weight plates are not included.
DUMBBELL CRADLE ATTACHMENT (OPTIONAL) Using an 8mm Allen Wrench (Not Included) Loosen and remove bolts (4). Hardware will be reused in next step.
Page 11
DUMBBELL CRADLE ATTACHMENT (OPTIONAL) Reuse bolts (4) from previous step. Securely tighten all bolts in this step. Repeat for both Left and Right sides. NOTE Match "R" AND "L" LABEL on DUMBBELL CRADLE with "R" AND "L" LABEL on REAR FRAME...
Page 12
DUMBBELL CRADLE ATTACHMENT (OPTIONAL) NOTE: MAX DUMBBELL SIZE 25 LB Carefully place dumbbell into cradle Latch will engage when dumbbells are placed in the cradle. To remove Dumbbells Press latch in direction shown. Lift dumbbell straight out of the cradle.
Page 13
DUMBBELL CRADLE ATTACHMENT (OPTIONAL) Dumbbells may be stored in the Dumbbell Cradles while using the TANK. Stored dumbbells may reduce tire slippage and skidding depending on the surface the TANK is used on. WARNING! DO NOT ADJUST THE PUSH/PULL BAR WITH DUMBBELLS STORED IN THE DUMBBELL CRADLE.
Page 14
Weight plates are not included. Weight plates are only needed to prevent skidding and lifting of the back wheels. Adding weight does not affect the resistance To discover what accessories pair well with the TANK M1, visit our web site at: www.torquefitness.com/collections/tank-accessories. or by phone at 877-767-7835...
Page 15
Weight plates are not included. Weight plates are only needed to prevent skidding and lifting of the back wheels. Adding weight does not affect the resistance To discover what accessories pair well with the TANK M1, visit our web site at: www.torquefitness.com/collections/tank-accessories. or by phone at 877-767-7835...
Page 16
WHEELBARROW HANDLE ATTACHMENT (OPTIONAL) NOTE NOTE: Match "R" LABEL on RIGHT Align pin in WHEEL- WHEELBARROW HANDLE BARROW HANDLE with "R" LABEL on REAR FRAME with SLOT in RECEIVER TUBE NOTE Match "L" LABEL on LEFT WHEELBARROW HANDLE with "L" LABEL on REAR FRAME...
XTM1-WMSS WALL MOUNT STORAGE SYSTEM (OPTIONAL) WARNING: The UPPER MOUNT MUST be anchored to the wall using four WALL ANCHORS suitable for that particular wall construction 1-3/4" 36" 1-3/4" 6" (MIN) NOTES: FLOOR The images above show the anchoring hardware used for attaching to WARNING: typical walls with wood studs spaced 16"...
Page 18
XTM1-WMSS WALL MOUNT STORAGE SYSTEM (OPTIONAL) M1 STORAGE NOTE: These LOOPS are for attaching RESISTANCE BANDS and INERTIA WAVE MAX BAND RESISTANCE = 50 LBS. NOTE: These areas are for ATTACHING BATTLE ROPES, RESISTANCE BANDS and INERTIA WAVE MAX BAND RESISTANCE = 50 LBS...
Page 19
XTM1-WMSS WALL MOUNT STORAGE SYSTEM (OPTIONAL) PUSH HANDLE STORAGE...
Page 20
XTM1-WMSS WALL MOUNT STORAGE SYSTEM (OPTIONAL) WHEELBARROW HANDLE STORAGE...
XTTM1-C-101 CONSOLE, TANK M1 (OPTIONAL) NOTE: Console not included. Console installation and user manual located in console box. To discover what accessories pair well with the TANK M1, visit our web site at: www.torquefitness.com/collections/tank-accessories. or by phone at 877-767-7835...
INSPECTION & LUBRICATION INSPECTION: Once a month, check for loose bolts on frame and wheels. Tighten if necessary. Once a month, remove shroud as shown on PAGE 23 and check that the chain and sprockets are clean, free of rust, dust and grime. Make sure that the chain is properly lubricated.
SHROUD REMOVAL - STEP 1 SHROUD REMOVAL - STEP 2 USE A PHILLIPS SCREW DRIVER TO LOOSEN AND REMOVE 6 SCREWS AS SHOWN. CAREFULLY LIFT SHROUD OFF M1. BOTTOM VIEW USE A PHILLIPS SCREW DRIVER TO LOOSEN AND REMOVE 2 SCREWS AND CAREFULLY REMOVE HANDLE.
CHAIN ADJUSTMENT TO SET THE CORRECT CHAIN TENSION FOLLOW THESE STEPS: 1) TIP M1 BACK SO THAT IT RESTS ON THE REAR WHEELS AND PUSH HANDLES. AS SHOWN. 2) LOOSEN ALL FOUR BOLTS ONE FULL TURN EACH. (BOLT SHOULD BE LOOSE ENOUGH TO ALLOW THE BRAKE MODULE TO MOVE).
• • DO NOT stack weight above weight horn cap. DO NOT drop the weight plates onto the TANK M1. Doing so, may result in damage to the TANK M1. • • DO NOT use the TANK M1 in wet or slippery conditions.
