Extron electronics PoleVault MLC Plus 84 D Quick Reference

Quick Reference
PoleVault Digital Classroom AV Systems with MediaLink Plus 84 D Controller
®

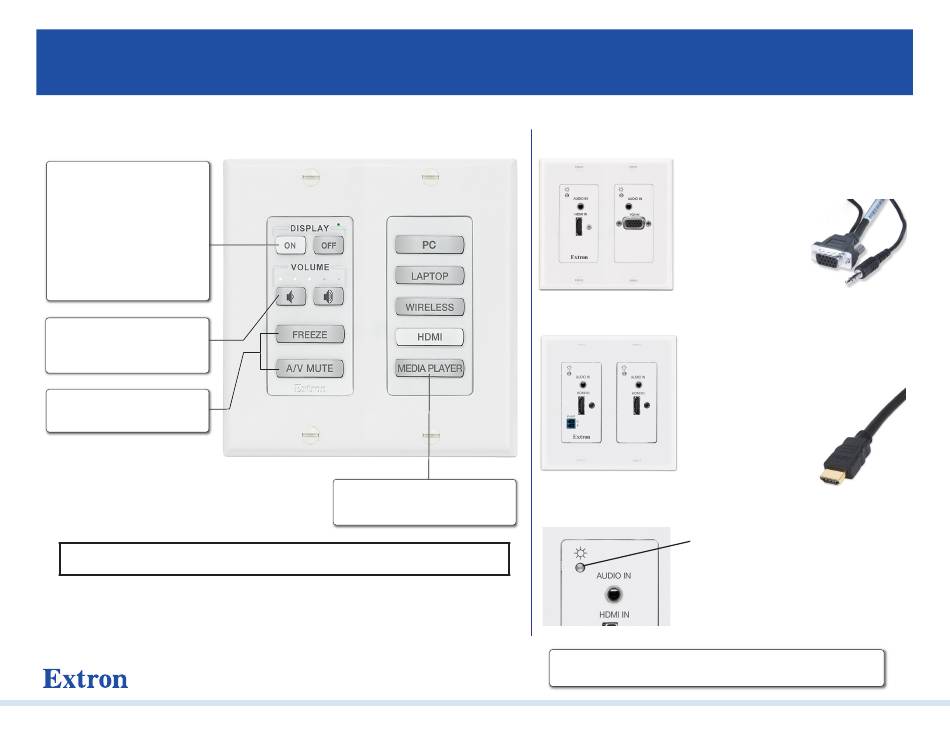

Easy to Use Control Panel
Display Power
ON: Press this button to turn on
the main display. You may not see
an image immediately after the
button is pressed, as many
projectors need to warm up for
30-90 seconds. Button may blink
as the projector warms up.
OFF: Press the button to turn off
the display. Button may blink as
the projector cools down.
Volume Buttons and LEDs
Press the buttons to decrease or
increase the volume. The LEDs
indicate the volume level.
Function Buttons
These buttons perform the labeled
function.
MLC Plus 84 D
NOTE:
Controller buttons may be designated for other functions. Please contact your AV Technician
for details.
Input Buttons
These buttons select the source for the
main projector or display.
Connecting to the System
Computer Video and Stereo Audio
This type of input is commonly used to
connect a computer, laptop, or document
camera to the system.
Use the VGA and stereo
audio cable like the one
shown here to connect
your computer or
document camera
to the wallplate.
PVT HD RGB Input Wallplate
HDMI Video and Audio
This type of input is commonly used to
connect a newer laptop, tablet, Blu-ray
player, Apple TV, or tuner to the system.
In many cases, source devices
transmit both digital video and
audio on a single HDMI cable.
If your device does not
"embed" audio on the
HDMI signal, a 3.5 mm
analog audio cable may
be used for the Audio In
PVT HDMI Input Wallplate
connection above the HDMI connector.
Power LED
Input wallplates provide a Power LED for
each input. Amber indicates that the input
is powered, but it is not selected or no
source signal is present. Green indicates
that the input is powered, selected, and
that a source signal is present.
