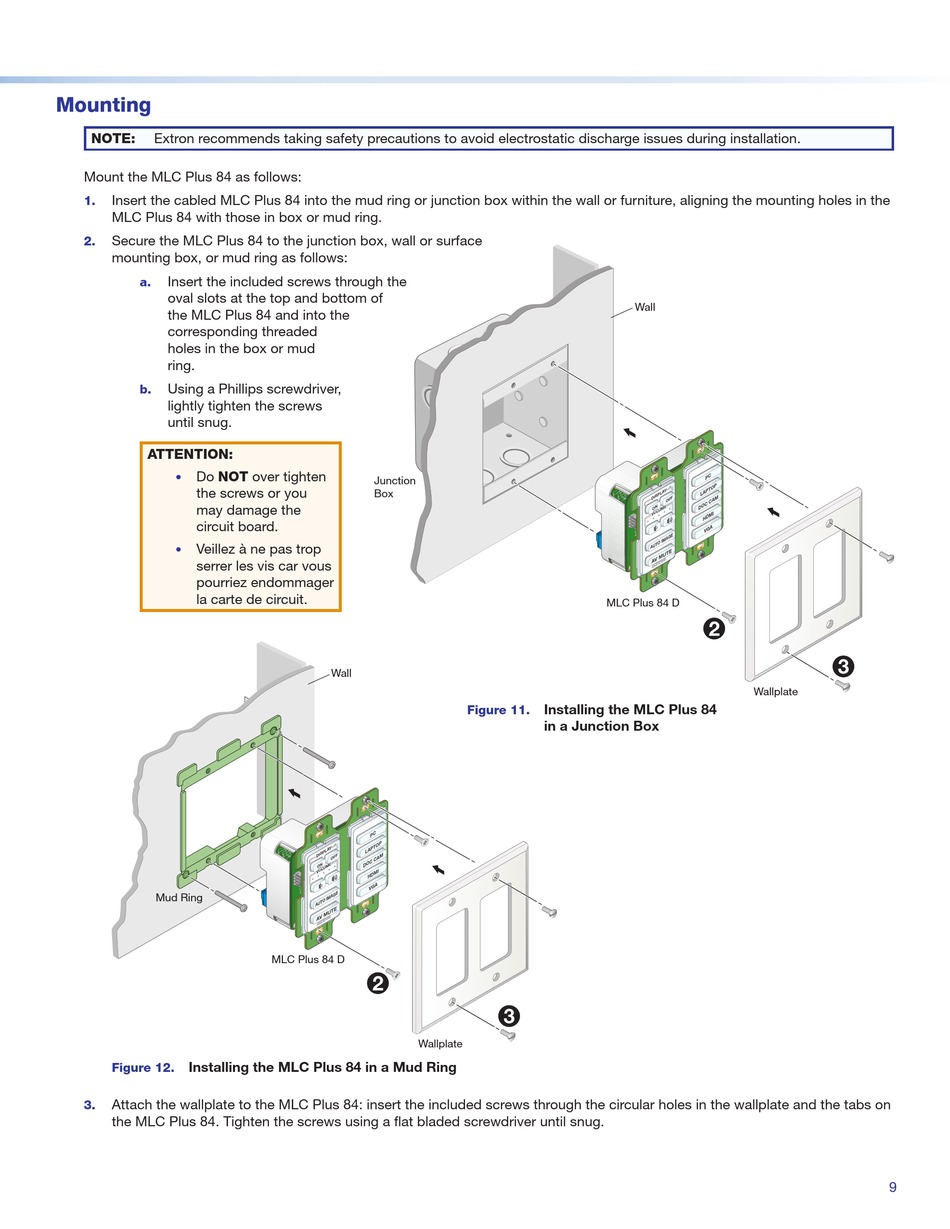

Mounting
NOTE: Extron recommends taking safety precautions to avoid electrostatic discharge issues during installation.
Mount the MLC Plus 84 as follows:
Insert the cabled MLC Plus 84 into the mud ring or junction box within the wall or furniture, aligning the mounting holes in the
1.
MLC Plus 84 with those in box or mud ring.
Secure the MLC Plus 84 to the junction box, wall or surface
2.
mounting box, or mud ring as follows:
Insert the included screws through the
a.
oval slots at the top and bottom of
the MLC Plus 84 and into the
corresponding threaded
holes in the box or mud
ring.
Using a Phillips screwdriver,
b.
lightly tighten the screws
until snug.
ATTENTION:
Do NOT over tighten
•
the screws or you
may damage the
circuit board.
Veillez à ne pas trop
•
serrer les vis car vous
pourriez endommager
la carte de circuit.
Mud Ring
Installing the MLC Plus 84 in a Mud Ring
Figure 12.
Attach the wallplate to the MLC Plus 84: insert the included screws through the circular holes in the wallplate and the tabs on
3.
the MLC Plus 84. Tighten the screws using a flat bladed screwdriver until snug.
Junction
Box
Wall
O P
P T
L A
M
C A
C
Y
D O
L A
S P
D I
F
O F P C
M E
O N
L U
V O D
D V
O
I D E
X V
A U
MLC Plus 84 D
2 2
Wallplate
Wall
MLC Plus 84 D
Installing the MLC Plus 84
Figure 11.
in a Junction Box
3 3
O P
P T
L A
M
C A
C
Y
D O
L A
S P
D I
F
O F
P C
O N M E
L U
D
V O
D V
O
I D E
X V
A U
2 2
Wallplate
3 3
