ADIS1650x/PCBZ User Guide

THE ADIS165505 BREAKOUT BOARD

DESCRIPTION

Breakout boards provide a simple way to connect an existing
embedded processor platform to an ADIS16500, ADIS16505 or
ADIS16507 IMU. Each breakout board contains (1) IMU and a
simple interface connector, which provides access to all
necessary electrical connections with the IMU. Figure 2
provides a picture the ADIS16505-2/PCBZ breakout board,
which contains and ADIS16505-2BMLZ IMU model.
Table 1 provides a list of the model numbers for each breakout
board, along with the IMU model that is on each breakout
board.
Table 1. Breakout Board Models
Breakout Board Model
ADIS16500/PCBZ
ADIS16505-1/PCBZ
ADIS16505-2/PCBZ
ADIS16505-3/PCBZ
ADIS16507-1/PCBZ
ADIS16507-2/PCBZ
ADIS16507-3/PCBZ

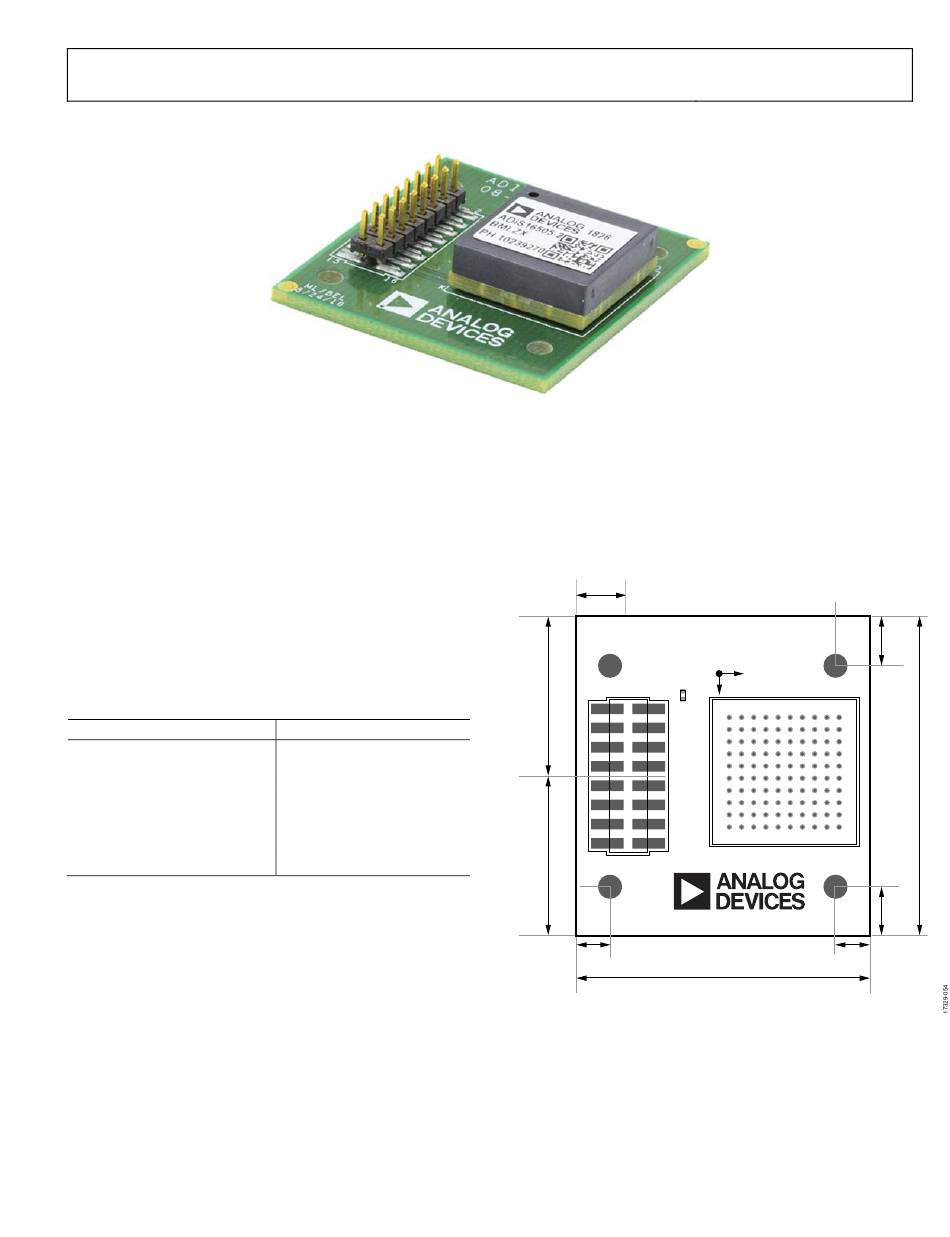

Figure 2. ADIS16505-2/PCBZ
IMU Model
ADIS16500AMLZ
ADIS16505-1BMLZ
ADIS16505-2BMLZ
ADIS16505-3BMLZ
ADIS16507-1BMLZ
ADIS16507-2BMLZ
ADIS16507-3BMLZ
Rev. PR.C | Page 3 of 11

DRAWING

Figure 3 provides a top-level view of the breakout board layout,
along with key physical attributes. The electrical interface (J1)
on each breakout board is a dual row, 2 mm pitch, 16-pin
interface. This supports standard ribbon cabling with 1 mm pitch.
6.03
ADIS1650x - x / PCB
08 - 050552 - 01 - A
R2
J1
1 2
16.99 A1
15 16
16.99
ML / BEL
8 / 24 / 18
3.62
DIMENSIONS SHOWN IN MILLIMETERS
Figure 3. Top Level View of the Breakout Board
UG-ADIS1650x
Z
Y
U1
X
10
K
3.62
30.7
5.125
33.25
5.125
