HISTORY AND RECORDKEEPING FUNCTIONS
The pump may be running or stopped to view functions or to print.
To View
Extended History will appear in Options
only if it is turned on in the Biomed Toolbox.
Extended History
1. Press OPTIONS.
´ Î
2. Press or
option appears.
3. Press ENTER to display
Extended History.
´ Î
4. Press or
or Doses Hour by Hour.
5. Press ENTER.
6. If required, use
start time and date, then press ENTER.
´ Î
7. Press or
8. When finished, press NEXT.
To View
1. Press OPTIONS.
Event Log ´ Î
2. Press or until Event Log
option appears.
3. Press ENTER to display Event Log.
Î
4. Press to page back through Event Log
´
entries or to page forward.
5. When finished, press NEXT.
A demand dose must be programmed.
To Clear
1. Stop the pump.
Dose Counters
2. Press NEXT repeatedly until Dose
Counters screen appears.
3. Press ENTER to clear and update date
and time.
To Clear 1. Stop the pump.
2. Press NEXT repeatedly until Milliliters
Units Given
Given, Milligrams Given, or Micrograms
Given screen appears.
3. Press ENTER to clear and update date
and time.
To Print Reports
1. If applicable, detach remote dose cord
• Rx Settings
from data in/out jack.
• Extended
2. Turn printer on.
History 3. Connect printer cable to data in/out jack
and to back of printer.
• Event Log
4. If necessary, press
appears.
5. Press ENTER.
´ Î
6. Press or
7. Press ENTER.
8. If required, use
desired start time and date for report,
then press ENTER.
9. When report is finished, detach printer
cable from pump.
ALARmS & TROUBLESHOOTING
The CADD-Prizm
messages on the display when a condition requires your attention.
In addition to referring to this table, use the ? key while the alarm
is occurring for information about the alarm and corrective action.
Reservoir
until Extended History
Volume Low
Reservoir
Volume Zero
to choose Patient Review
9-volt
Battery Low
´ Î
or to select review
9-volt Battery
Depleted
to page through history.
High Pressure
Upstream
Occlusion
(model 6101
only)
Error Detected
Air In Line
Detected
3 Beeps Every
5 minutes;
Stopped on
main Screen
WARNING: This Quick Reference Card should be used by
clinicians only. Do not permit patients to have access to this card,
as the information would allow access to all programming and
´
until Printing
operating functions.
to select desired report.
´ Î
or to select
Smiths medical ASD, Inc.
St. Paul, MN 55112, USA
Phone: 1-214-618-0218
Toll-Free USA: 1-800-258-5361
Smiths medical Canada Ltd.
Markham, Ontario, Canada, L3R 4Y8
Phone: 905-477-2000
Toll-Free: 1-800-387-4346
www.smiths-medical.com
Smiths medical is part of the global technology business Smiths Group plc.
Product(s) described may not be licensed or available for sale in Canada or other
countries outside of the United States.
CADD, CADD-Prizm, Medication Cassette Reservoir Design and the Smiths Medical
and CADD design marks are trademarks of Smiths Medical. The symbol ® indicates
the trademark is registered in the U.S. Patent and Trademark Office and certain other
countries. ©2010 Smiths Medical. All rights reserved. 9/10
pump signals with audible alarms and
®
Level of fluid in the reservoir is low. Prepare to
install a new reservoir.
Reservoir volume is 0.0 ml. Press NEXT to stop
alarm. Install new reservoir if appropriate.
9-volt battery is low but pump is operable.
Change battery soon.
9-volt battery is depleted and cannot operate
pump; install fresh battery immediately.
Possible blockage downstream (between pump
and patient), clamp or kink in fluid path. Find
cause and remove blockage to continue. Or,
press STOP/START to stop pump and silence
alarm; remove blockage and restart pump.
Fluid is not flowing from the reservoir to the
pump. Check for a kink, a closed clamp or an air
bubble in tubing between reservoir and pump.
Press STOP/START to silence alarm for two
minutes; remove obstruction and restart pump.
Pump fault occurred. Close tubing clamp,
remove pump from service.
Air in fluid path. Press NEXT to silence alarm.
Make sure tubing is threaded in Air Detec-
tor properly. If fluid path contains air, close
clamps, disconnect from patient and prime
fluid path.
Pump is stopped. Start pump if appropriate.
EC Authorized Representative
Smiths Medical International Ltd.
WD24 4LG, UK
Phone: +44 (0) 1923 246434
IN19806
CADD-Prizm ® VIP
Ambulatory Infusion Pump
Model 6100 and 6101
Quick Reference Card for Clinicians
PCA Lock Level 1
A
B
C
D O P TI O
EN TE R
S TO P
S TA R T
Y
N EX T
E
LO C K
N
D O S E
?
H

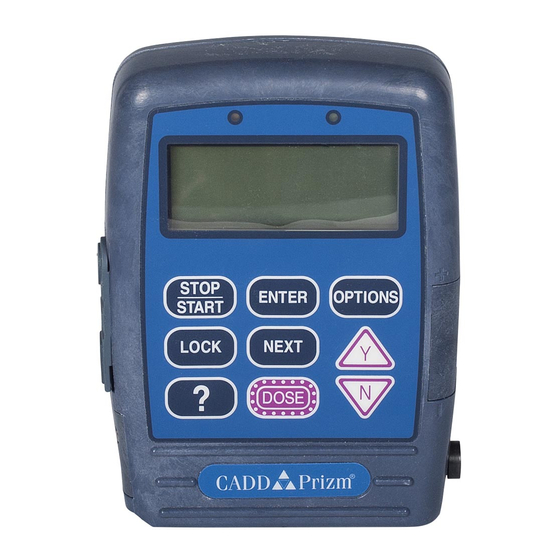

A Green indicator light: blinks when pump is running
B Amber indicator light: blinks when pump is stopped
or alarming
C Polemount bracket recess (back of pump)
D Power jack (for power pack or AC adapter)
E Data in/out jack (for printer or modem cable)
F Battery compartment (side of pump)
G Cassette (part of reservoir or administration set
that attaches to pump)
H Air Detector
Keypad
STOP/START Stops and starts the pump
LOCK Displays or changes lock level (security level)
? Help key: displays more information about a screen
ENTER Sets new value; selects choice from menu; clears screen
NEXT Advances to next programming screen; backs out
of an option or menu
DOSE Delivers a demand dose
OPTIONS Displays the Options Menu, pages through options
´
Answers yes; increases values on programming
screen; pages through menus; pages through
history screens
Î
Answers no; decreases values on programming
screen; pages through menus; pages through
history screens
Using the Å (Help) Key
1. For information about screen or alarm, press ? key.
2. If ?→ appears in lower right corner, press ? to see more help.
3. Press NEXT to exit help.
Please read the Instructions for Use or Operator's Manual supplied with the product
for detailed instructions, warnings, and cautions on the safe use of the product.
F
