- Page 1 CADD-Prizm® VIP Ambulatory Infusion Pump Model 6100 and 6101 PCA Patient Controlled Analgesia Delivery Mode Patient Information...
-
Page 2: Table Of Contents
Contents Introduction ....................1 Warnings ....................... 2 Cautions ......................5 ® CADD-Prizm Pump (Diagram) ............. 6 Description of the Keys ................7 Installing a New Battery ................8 Main Screen ....................10 Å The HELP Key ................11 Starting the Pump ................... 12 Stopping the Pump................. -
Page 3: Introduction
Introduction ® Your doctor has recommended that you use the CADD‑Prizm pump as part of your treatment. ® The CADD-Prizm pump can be carried with you and is designed to deliver medication into your body. PCA stands for patient controlled analgesia. -
Page 4: Warnings
Failure to properly follow warnings, cautions, and instructions could result in damage to the pump or death or serious injury. Warnings • Do not use the pump in the presence of flammable anesthetics or explosive gasses. • If the pump is used to deliver life-sustaining medication, an additional pump must be available. ® • Use of a syringe with the CADD Administration Set may result in UNDER-DELIVERY of medication. Syringe function can be adversely affected by variations in plunger dimension and lubricity, which can result in greater force required to move the syringe plunger. - Page 5 • If the pump is dropped or hit, the battery door may become broken or damaged. Do not use the pump if the battery door is damaged because the battery will not be properly secured; this may result in loss of power or non-delivery of drug. • Prior to starting infusion, inspect the fluid path for kinks, a closed clamp, or other upstream obstructions, and remove all air to prevent air embolism. • Do not place the Remote Dose Cord where the button might accidentally be pushed.
- Page 6 • Ensure that the entire fluid path is free of all air bubbles before connecting to your catheter to prevent air embolism. • If the pump is dropped or hit, inspect the pump for damage. Do not use a pump that is damaged or is not working properly. Contact your clinician for further instructions.
-
Page 7: Cautions
Cautions • To avoid damaging the pump’s electronics, do not operate the pump at temperatures below + 2˚C (36˚F) or above 40˚C (104˚F). • To avoid damaging the pump’s electronics, do not store the pump at temperatures below -20˚C (-4˚F) or above 60˚C (140˚F). Do not store the pump with a CADD™ Medication Cassette Reservoir or ® CADD Administration Set attached. • To avoid damaging the pump’s electronics, do not expose the pump to humidity levels below 10% or above 90% relative humidity. • Do not immerse the pump in cleaning fluids or water or allow solution to soak into the pump, accumulate on the keypad, or enter the battery compartment, Data In/Out jack, accessory jack, or Air Detector Port area. • Do not clean the pump with acetone, other plastic solvents, or abrasive cleaners. -
Page 8: Cadd-Prizm ® Pump (Diagram)

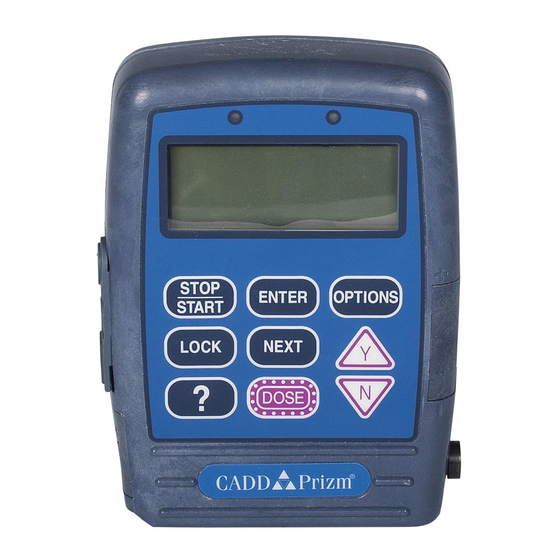

CADD‑Prizm ® Pump (Diagram) Green Light Amber Light Display Keypad Power Jack Battery Compartment Data In/Out Jack Air Detector (Optional) Cassette (the part of the CADD™ Medication Cassette Reservoir ® or the CADD Administration Set that attaches to the pump) Green Light Blinks every 3 seconds when the pump is running and delivering medication. -
Page 9: Description Of The Keys
Í WARNING: Pressing to turn the display back on may deliver an inadvertent dose, resulting in over‑delivery of medication, which could result in death or serious injury. Description of the Keys ⁄ Starts and stops the pump and silences alarms. Œ... -
Page 10: Installing A New Battery
Installing a New Battery If 9-volt Battery Low or 9-volt Battery Depleted appears in the display, or if Battery Low appears on the main screen, you should change the battery. ® Use a new 9 volt (9V) alkaline battery such as the DURACELL Alkaline ® MN 1604 or the EVEREADY ENERGIZER Alkaline #522 battery. Dispose of used batteries in an environmentally safe manner, and according to any regulations which may apply. WARNINGS: • Do not use rechargeable NiCd or nickel metal hydride (NiMH) batteries. - Page 11 To install a new battery: ⁄ 1. Stop the pump by pressing Stop the Pump? 2. When you see Stop the pump?, ´ press Press Y or N 2000-03-08 D. Zurn 3. Press the button on the battery «Prizm Open door and slide the battery door Door w/Button»...
-
Page 12: Main Screen
Main Screen The following screen is what you will see on the pump’s display most of the time. It is called the Main Screen and shows the following: Pump Status (RUNNING, STOPPED, or DOSING) Battery Status PCA 6210X Low Battery DOSING Res Vol 47.0 ml Press NEXT to advance Status of Reservoir Volume... -
Page 13: The Help Key
The HELP Key Å Å If you have a question about a screen, press for more information. A description of the screen will appear. For example, if you want information about the Reservoir Volume Å screen, you can press and the following will appear: The symbol (?≥) in the lower right This is the corner means there are more help calculated amount of Å... -
Page 14: Starting The Pump
Starting the Pump When you start the pump, it will review the program, and then begin delivering medication. If the pump will not start, a message should appear on the display. Refer to the Messages and Alarms section on page 25. WARNING: Prior to starting infusion, inspect the fluid path for kinks, a closed clamp, or other upstream obstructions, and remove all air bubbles to prevent air embolism. An undetected upstream occlusion may result in under‑... -
Page 15: Stopping The Pump
Stopping the Pump Stopping the pump stops delivery of medication. Whenever the pump is stopped, the amber light will blink. ⁄ 1. Press Stop the Pump? 2. When Stop the Pump? appears, ´ press Press Y or N STOPPED will appear on the main PCA 6210X screen, and the amber light will STOPPED blink. -
Page 16: Getting A Dose
Getting a Dose Í Your clinician may program your pump so that you can give yourself extra doses of pain medication. Your clinician will explain when and how you should give yourself a dose. The pump must be running to start a dose. -
Page 17: Removing A Cassette
Removing a Cassette WARNING: Per general rules of safe practice, always close the tubing clamp before removing the cassette from the pump to prevent unregulated infusion, which could result in death or serious injury. To remove a cassette: Stop the Pump? ⁄... -
Page 18: Attaching A Cassette
Attaching a Cassette WARNING: ® • If you are using a CADD Administration Set or CADD™ Medication Cassette Reservoir that does not have the flow stop feature (reorder number does not start with 21‑73xx): ® You must use a CADD Extension Set with Anti‑Siphon Valve or a CADD® Administration Set with either an integral or add on Anti‑Siphon Valve to protect against unregulated gravity infusion that can result from an improperly attached cassette. - Page 19 3. Place the pump upright on a firm, flat surface. Press down so the cassette fits tightly against the pump. 4. Insert the side of the key or a coin into the latching button, push in, and turn counterclockwise until the mark on the latch lines up with the solid dot. 2000-03-08 D.
- Page 20 7. The message Cassette Locked Cassette Locked will appear on the display. Press „ NEXT to continue 8. Reset Reservoir Volume ´ to — ? may appear. Press to reset the Reservoir Volume Reset Reservoir Volume to 100.0 ml? to the originally programmed value.
-
Page 21: Resetting The Reservoir Volume
Resetting the Reservoir Volume Normally, when you lock a new cassette on the pump, you will be prompted to reset the Reservoir Volume. You can, however, reset the Reservoir Volume without changing the cassette. 1. Begin at the Main Screen. Make sure STOPPED appears in the Main Screen. „ 2. Press to go to the Reservoir Volume screen. ¤ 3. Press to reset the Reservoir Volume to the originally programmed value. -
Page 22: Priming The Tubing And Starting The Pump
Priming the Tubing and Starting the Pump When the new cassette is attached, Prime Tubing? the pump may automatically prompt you to prime the tubing. Press Y or N 1. If Prime Tubing? appears, press ´ Disconnect tubing 2. This screen will appear. Make from patient sure you are not connected to Open clamps the pump’s tubing. Open the... - Page 23 When the new cassette is attached, the pump will automatically prompt you to start the pump. 5. When Start the Pump? appears, Start the Pump? check to see if the fluid path is free of air. If your clinician has instructed you to use the Air Press Y or N Detector, go to the next section. If not, follow your clinician’s instructions for connecting the tubing to your access site. Open all clamps.
-
Page 24: Inserting The Tubing Into The Air Detector
Inserting the Tubing into the Air Detector The Air Detector is designed to detect air bubbles in the fluid path. When the tubing is inserted into the Air Detector, an air bubble exceeding the specified size will cause an alarm to sound and the pump to stop. 1. If your clinician has instructed you to use the Air Detector, open the Air Detector door and thread the tubing through the groove. 2. Close the door, making sure the tubing does not get pinched or kinked. -
Page 25: Remote Dose Cord
Remote Dose Cord When the Remote Dose Cord is attached you may deliver a dose by Í pressing either the Remote Dose Cord button, or the Key. If you need to attach the Remote Dose Cord to the pump, follow the steps below. WARNING: Do not place the Remote Dose Cord where the button might accidentally be pushed. Accidentally pushing the button may deliver a Dose, causing over‑delivery of medication, which could result in death or serious injury. -
Page 26: What If I Drop Or Hit The Pump
What if I drop or hit the pump? What should I do if I drop the pump in water? If you accidentally drop the pump in water, retrieve it quickly, dry it off with a towel, and call your clinician. What if I drop the pump or hit it against a hard surface? Immediately do the following: D. Zurn 05/16/96 Lock Prizm Latched, Unlocked • Check the latch and lock on the side of... -
Page 27: Alarms And Messages
Alarms and Messages If there are alarms or special messages you need to be aware of, the pump will beep or sound an alarm. Look at the screen and follow the steps in this table, or press for help. Å When you see: Take this action: The 9 volt battery is low but the 9 volt Battery pump is operable. Change the 9 volt battery soon. - Page 28 Alarms and Messages When you see: Take this action: There is air in the tubing or the Air in line detected tubing is not threaded through „ the air detector. Press Pump will not run to stop the alarm. Then follow NEXT to silence your clinician’s instructions for priming.
- Page 29 Alarms and Messages When you see: Take this action: Fluid is not flowing from the Upstream Occlusion fluid container to the pump. Check for a kink, a closed clamp, or an air bubble in the tubing Press STOP to silence between fluid container and (Model 6101 only) ⁄ pump. Press to stop the pump and silence the alarm for 2 minutes, then remove the „ obstruction and press restart the pump.
- Page 30 Alarms and Messages When you see: Take this action: The Reservoir Volume value is Reservoir Volume low, indicating that the level of fluid in the fluid container is low. Prepare to install a new fluid NEXT to continue container. There is a problem with the Error Detected pump. Close the tubing clamp E (error code) and remove the pump from service.
- Page 31 Your Clinician’s Name: ____________________________________________________ Phone Number: __________________________________________ Instructions: Pump placement during bathing/showering: _________________ _________________________________________________________ Pump placement during sleep: _____________________________ ___________________________________________________________ Storage of medication: ____________________________________ _________________________________________________________ Notes...
- Page 32 CADD, CADD-Prizm, and the CADD and Smiths Medical design mark are trademarks of ® Smiths Medical. The symbol indicates the trademark is registered in the U.S. Patent and Trademark Office and certain other countries . All other names and marks mentioned are the trademarks or service marks of their respective owners. © 1997-2011 Smiths Medical. All rights reserved. Smiths Medical ASD, Inc. St. Paul, MN 55112 USA 1.800.258.5361 (USA) 1 214.618.0218 www.smiths-medical.com 2011-05 40-3744-01F...
