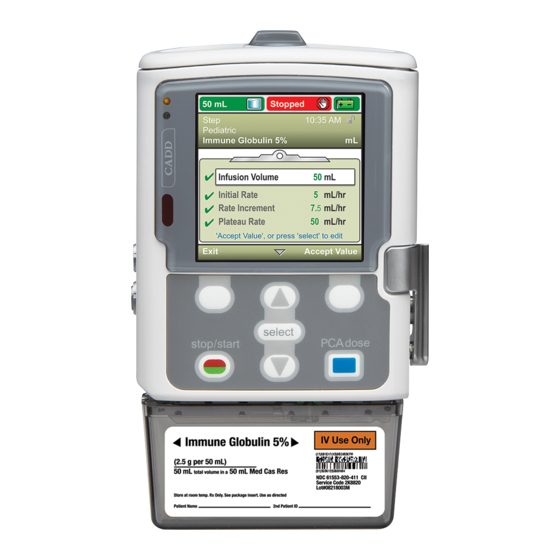

CADD
-Solis VIP
®
Ambulatory Infusion Pump
Quick Start Guide
C
D
E
F
G

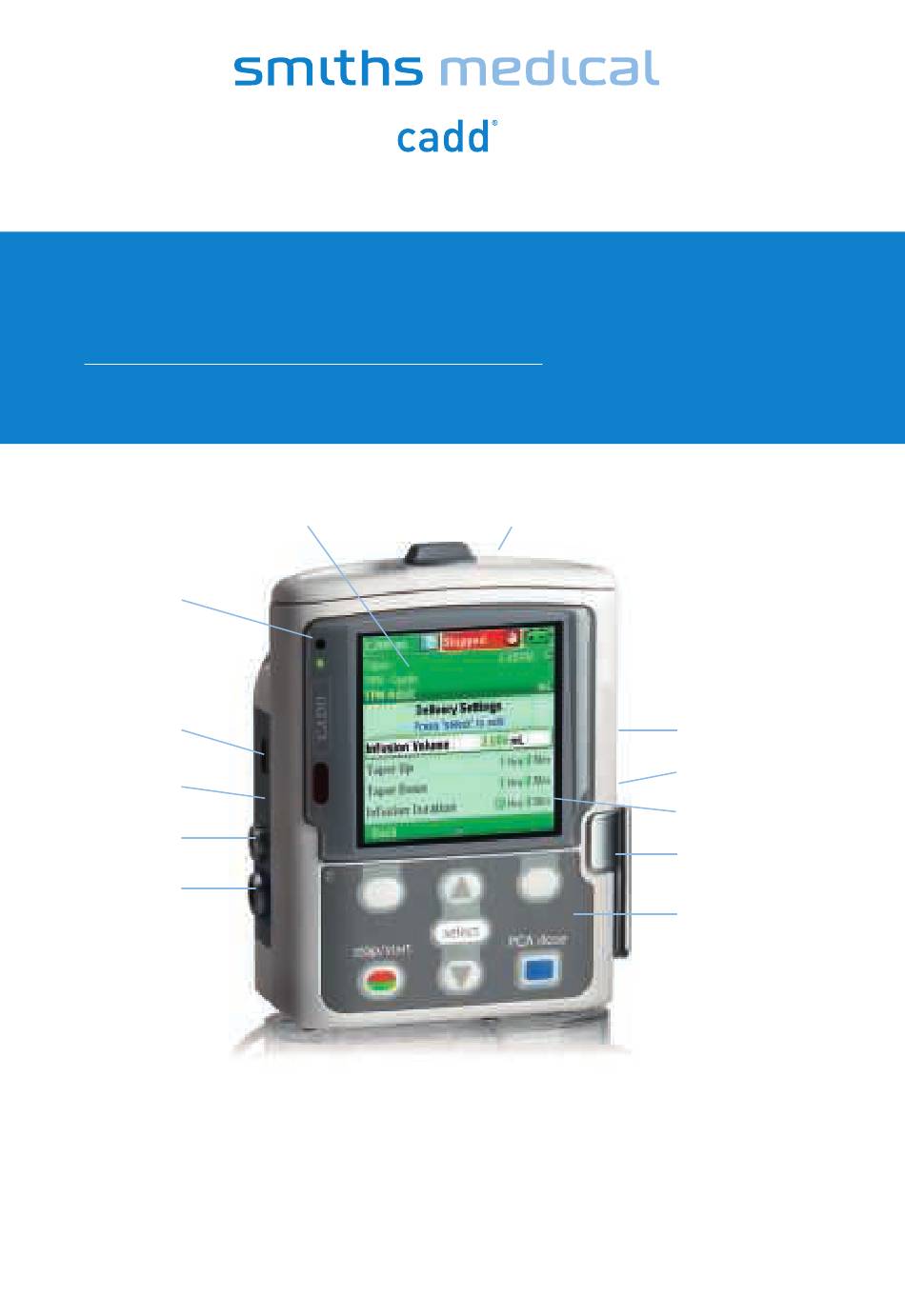

A
Battery Compartment
B
Display
C
Indicator Lights
D
USB Port
E
Blue AC Power Light
F
AC Power Jack
B
A
G
Remote Dose Cord Jack
H
Keypad
I
Cassette Latch
J
Help Messages
K
Cassette/Keypad Lock
L
Power Switch
L
K
J
I
H

Advertisement

loading
Need help?

Need help?

Do you have a question about the CADD-Solis VIP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Smiths Medical CADD-Solis VIP

Summary of Contents for Smiths Medical CADD-Solis VIP

  • Page 1 CADD -Solis VIP ® Ambulatory Infusion Pump Quick Start Guide Battery Compartment Remote Dose Cord Jack Display Keypad Indicator Lights Cassette Latch USB Port Help Messages Blue AC Power Light Cassette/Keypad Lock AC Power Jack Power Switch...
  • Page 2 PROGRAMMING A NEW PATIENT • Install a new set of AA batteries or a rechargeable battery pack: Power switch to turn pump on/off • Turn on the pump using the power switch on the side of the pump: • To start programming, select Tasks: Tasks •...
  • Page 3 • Using the key, highlight Start New Patient. then press to confi rm. select • Enter the 3-digit security code. Press to display each digit then press select to confi rm and advance to the next digit. Once the complete 3-digit code has been entered, press Accept Value.
  • Page 4 • Then highlight the drug by pressing and press to confirm. select • A screen asking you Are these correct? appears. To confirm select or to cancel select NO. • The Review screen appears. Select Review. • The various delivery settings then appear on the screen. To confirm a setting, press Accept Value, the...
  • Page 5 To edit the highlighted delivery setting, press select Next adjust the value by pressing then select Save. Confirm your choice by pressing Accept Value, the symbol appears on the left. • When you have confirmed all of the settings, press Next. •...
  • Page 6 I WANT TO CHANGE A PROGRAM SETTING DURING DELIVERY Should you wish to change one of the program settings while the pump is running, follow the instructions below: Tasks Press the Stop/Start Press the key just below Tasks. Tasks Using the key, scroll down until the white box highlights View Delivery Settings...
  • Page 7 ATTACHING THE CASSETTE / ERA Clamp the tubing, make sure the cassette latch is unlocked and open the cassette latch to 90 degrees. Insert the cassette hooks into the hinge pins on the bottom of the pump. Without holding the cassette latch, push up on the cassette until it firmly clicks into place.
  • Page 8 QUICK CHANGE OF DISPOSABLE, SAME INFUSION VOLUME, SAME PROGRAMMING Tasks With the pump switched on, stop delivery by pressing the Stop/Start Attach the new disposable. The pump displays the question Reset reservoir volume to XX mL? Press to confirm. Follow the instructions for priming the tubing. The question Start the Pump? appears.
  • Page 9 I WANT TO PRIME THE TUBING Make sure that delivery has stopped, that the tubing is disconnected from the patient and that the clamps are open. If the pump displays the screen: Prime tubing? The screen displays Prime tubing? Select (unlock the keypad, if necessary).
  • Page 10 I WANT TO PROGRAM A DELAYED START You can program a delayed start once you have confirmed your programming and completed the priming. It must be done before starting delivery. Go to the Tasks menu. Press to highlight Set Next Dose Start Time then press select...
  • Page 11 PCA / PCEA mode 250 mL Stopped 11:49 AM PCA - Epidural Bupivacaine (0.0625%) Continuous Rate mL/hr PCA Dose PCA Lockout KVO Rate mL/hr 'Accept Value', or press 'select' to edit Exit Accept Value Purple screen Yellow screen PCA mode Epidural PCA SETTINGS TO BE PROGRAMMED: Continuous Rate:...
  • Page 12 TAPER MODE (TPN - TOTAL PARENTERAL NUTRITION) Green screen SETTINGS TO BE PROGRAMMED: ≠ Infusion Volume: Total volume of fluid to be delivered reservoir volume. Taper Up: Duration for the taper up period. Taper Down: Duration for the taper down period. Infusion Duration: Time required to deliver the infusion volume.

  • Page 13: Continuous Mode

    CONTINUOUS MODE Gray screen SETTINGS TO BE PROGRAMMED: Continuous Rate: Specify the delivery rate of the solution. KVO Rate: The KVO (Keep Vein Open) function allows the delivery of a minimal amount of drug to help maintain catheter patency. Reservoir Vol.: Reservoir volume (cassette or bag).

  • Page 14: Intermittent Mode

    INTERMITTENT MODE Blue screen SETTINGS TO BE PROGRAMMED: Dose Volume: Dose volume to be delivered. Dose Duration: Time required to deliver a dose. Dose Cycle: Time from the start of one dose to the start of the next dose. Dose Rate: Automatically calculated by the pump (cannot be modified), indicates the rate at which the dose is delivered.

  • Page 15: Step Mode

    STEP MODE Olive screen SETTINGS TO BE PROGRAMMED: ≠ Infusion Volume: Total volume of fluid to be delivered reservoir volume. Initial Rate: Delivery rate that starts at the beginning of an infusion. Rate Increment: The amount of drug by which you want delivery to increase with each step.

  • Page 16: Alarm Help Screens

    ALARM HELP SCREENS For certain alarms, such as occlusion alarms and the cassette detector, you have the option of viewing help screens to help you to solve the problem. When an alarm is triggered, select Silence to mute the alarm. If help screens are available for the alarm, Help...
  • Page 17 ALARM HELP SCREENS High Priority Alarm = stops delivery Air in-line detected: The air detector has detected air in the fluid path. The current delivery is automatically stopped. Select Acknowledge to clear the alarm. If the fluid path contains air bubbles, close the clamps and disconnect the fluid path from the patient.
  • Page 18 SETTINGS MENUS FOR THE CADD®-SOLIS VIP PUMP Delivery Settings Continuous Intermittent Step Taper Continuous Continuous Dose Infusion Volume Infusion Volume Rate Rate Volume PCA Rate Dose Initial Rate Taper Up Duration PCA Lockout* Dose Cycle Rate Increment Taper Down Delivery Limit** Dose Rate Plateau Rate Infusion Duration...
  • Page 20 Find your local contact information at: www.smiths-medical.com/customer-support Smiths Medical is part of the global technology business Smiths Group plc. Please see the Instructions for Use/Operator’s Manual for a complete listing of the indications, contraindications, warnings, and precautions. CADD and the Smiths Medical design mark are trademarks of Smiths Medical. The symbol ®...
