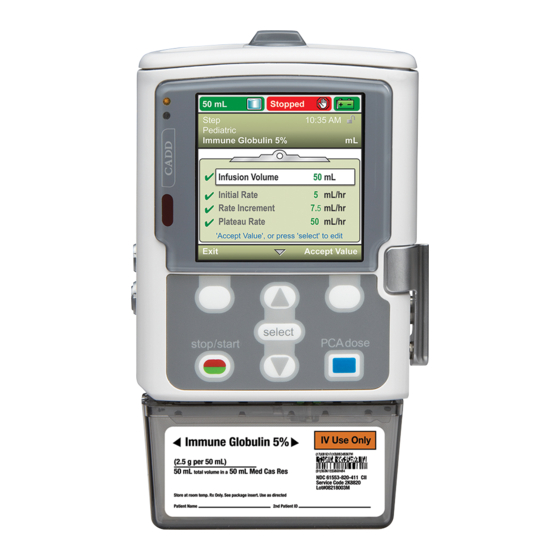

Smiths Medical CADD Solis Quick Start Manual
With pib/pieb infusion mode
Hide thumbs
Also See for CADD Solis:
- Operator's manual (64 pages) ,
- Quick reference manual (13 pages) ,
- Manual (10 pages)
Subscribe to Our Youtube Channel
Related Manuals for Smiths Medical CADD Solis
Summary of Contents for Smiths Medical CADD Solis
- Page 1 100 mL Stopped 2:07 PM Qualifier name Drug Intermittent Bolus Bolus Interval Mins Next Bolus Mins PCA Dose CADD -Solis Review complet. Press 'Next' ® Next WITH PIB/PIEB INFUSION MODE Quick Start Guide...
- Page 2 Infusion delivery methods The CADD-Solis pump allows the following infusions to ® be programmed: • Continuous rate: infusion of drug at a constant, programmed flow rate • Intermittent bolus (IB): a series of doses activated at regular, programmed intervals • PCA dose: a demand dose activated by the patient •...
- Page 3 To install the batteries or battery pack • Install a new set of AA batteries or a rechargeable battery pack. TURN ON OR OFF THE PUMP • Turn on the pump using the power switch on the side of the pump Power switch to turn pump on/off NEW PATIENT PROGRAMMING...
- Page 4 • Highlight the appropriate therapy 50 mL Stopped with the keys then 10:28 AM confirm with select Select Therapy Press 'select' to choose PCA IV PCEA PIEB Peripheral Nerve Block Back • Next highlight a qualifier by 50 mL Stopped pressing then confirm 10:28 AM...
- Page 5 • The screen Are these correct? Are these correct? appears. Confirm with Therapy cancel with No. Qualifier Qualifier name 4 Drug Drug Units Review pump settings • The screen appears. Select Review. Review pump settings. Cancel Review • The various delivery settings then 100 mL Stopped 2:07 PM...
- Page 6 • When you have confirmed all of the 100 mL Stopped settings, press Next. 2:07 PM Qualifier name Drug • The pump will then require you to attach the cassette or the bag, Intermittent Bolus if this has not yet been done (to Bolus Interval Mins attach the disposable see the...
- Page 7 I want to change a programme setting during delivery IT IS NOT NECESSARY TO STOP THE PUMP TO MODIFY A DELIVERY SETTING. Use the keys to highlight Running 100 mL the programme setting to edit 2:07 PM Nom crit. qual. Médic.
- Page 8 Attaching the cassette or tubing Clamp the tubing and lower the cassette latch. Insert the cassette hooks into the hinge pins on the bottom of the pump. Lower the latch to the bottom while lifting the cassette at the same time until it is firmly attached;...
- Page 9 Attaching the cassette or tubing Follow the standard procedure for the preparation and filling of the cassette reservoir or the administration set. Press Stop/Start. The pump Press Review, then check the displays Stop pump? programme settings and press Accept Value to confirm Press Yes.
- Page 10 I want to prime the tubing Make sure that delivery has stopped, that the tubing is disconnected from the patient and that the clamps are open. If the pump displays the screen Prime the tubing? The screen displays Prime tubing? Select (unlock the keypad if necessary).
- Page 11 I want to consult the delivery reports The reports can be viewed at any time whether the pump is running or stopped. In the menu Reports, press Reports Press 'select' to view report highlight which report you want to view and Intermittent Bolus Status press select...
- Page 12 Clinician Bolus The pump must be running. Stopped 100 mL From the home screen select Tasks. Qualifier Name Drug Hightlight Give Clinican Bolus then press Tasks Press 'select' to begin Select. Give Clinician Bolus Start New Patient Enter the clinician bolus security code. Start New Protocol, Same Patient Prime Tubing Use the keys or until the desired value.
- Page 13 Definition of the parameters to be programmed PARAMETERS LINKED TO THE INTERMITTENT BOLUS: • Intermittent bolus: dose of medicine that is delivered to the patient at regular time intervals. • Bolus interval: amount of time that elapses from the beginning of one intermittent bolus to the beginning of the next one.
- Page 14 Programming of forbidden periods: • Between 2 Intermittent Bolus = Bolus interval Time Intermittent Intermittent Bolus Interval Bolus Interval • Between 2 PCA doses = PCA lockout Time • Between an Intermittent Bolus and a PCA dose = PCA lockout Time Model with limit = PCA lockout •...
- Page 15 Help screens in case of alarm Air in-line detected: high priority alarm = stops delivery The air detector has detected air in the fluid path. The delivery in progress stops automatically. Select Acknowledge to clear the alarm. If the fluid path contains air bubbles, close the clamps and disconnect the tubing from the patient.
- Page 16 Instructions for Use/Operator’s Manual for a complete listing of the indications, contraindications, warnings, and precautions. CADD and the Smiths Medical design mark are trademarks of Smiths Medical. The symbol ® indicates the trademark is registered in the U.S. Patent and Trademark Office and certain other countries.
