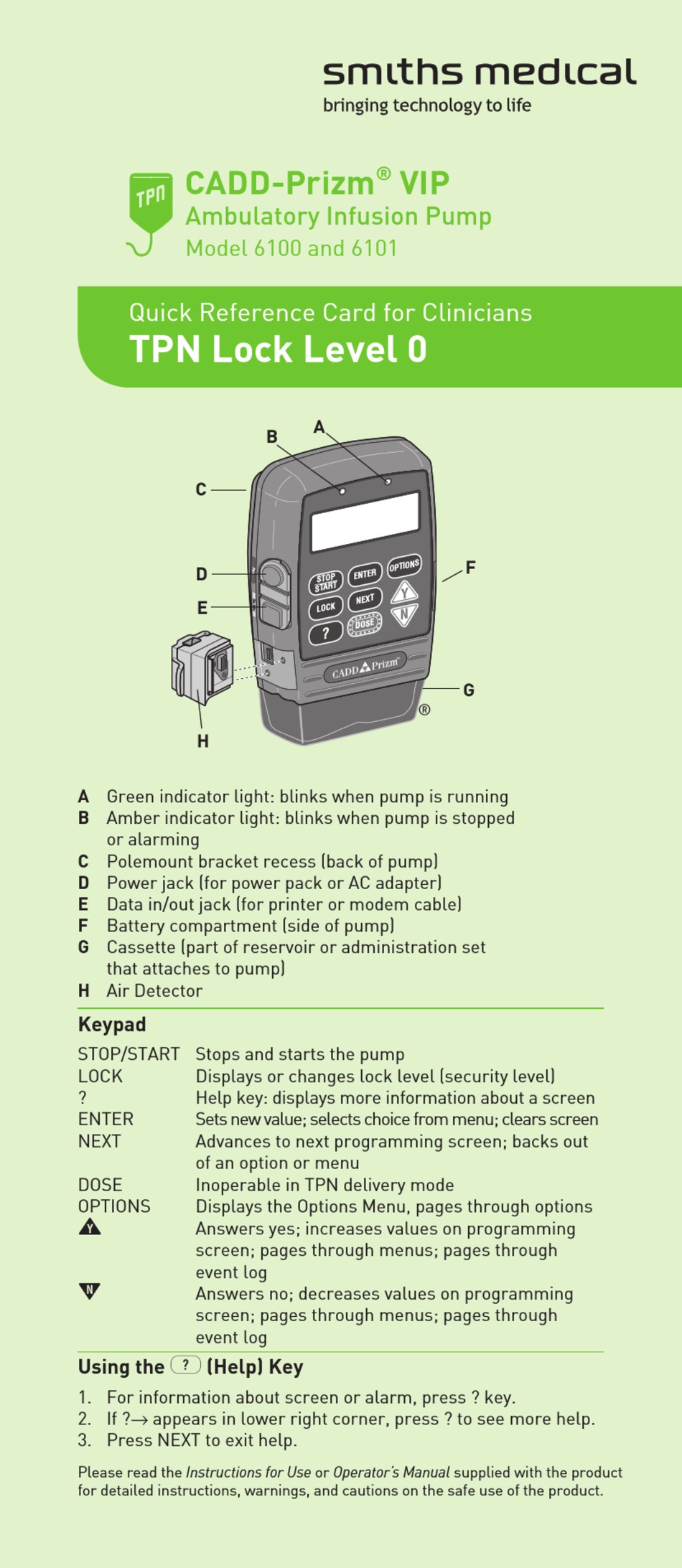

Smiths Medical CADD-Prizm VIP 6100 Quick Reference Card

CADD-Prizm
Ambulatory Infusion Pump
Model 6100 and 6101
Quick Reference Card for Clinicians
TPN Lock Level 0
C
D
E
H
A Green indicator light: blinks when pump is running
B Amber indicator light: blinks when pump is stopped
or alarming
C Polemount bracket recess (back of pump)
D Power jack (for power pack or AC adapter)
E Data in/out jack (for printer or modem cable)
F Battery compartment (side of pump)
G Cassette (part of reservoir or administration set
that attaches to pump)
H Air Detector

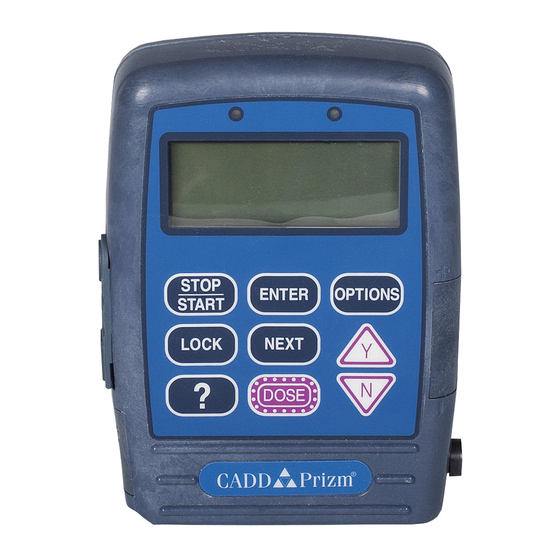

Keypad
STOP/START Stops and starts the pump
LOCK Displays or changes lock level (security level)
? Help key: displays more information about a screen
ENTER Sets new value; selects choice from menu; clears screen
NEXT Advances to next programming screen; backs out
of an option or menu
DOSE Inoperable in TPN delivery mode
OPTIONS Displays the Options Menu, pages through options
´
Answers yes; increases values on programming
screen; pages through menus; pages through
event log
Î
Answers no; decreases values on programming
screen; pages through menus; pages through
event log
Using the Å (Help) Key
1. For information about screen or alarm, press ? key.
2. If ?→ appears in lower right corner, press ? to see more help.
3. Press NEXT to exit help.
Please read the Instructions for Use or Operator's Manual supplied with the product
for detailed instructions, warnings, and cautions on the safe use of the product.
®
A
B
O P T I O
E N T E R
S T O P
S T A R T
N E X T
L O C K
D O S E
?
VIP
F
N S
Y
N
G
®
