Smiths Medical CADD-Prizm ViP Quick Start Manual

rECorDKEEPinG FUnCTions
The pump may be running or stopped to view functions or to print.
To View 1. Press OPTIONS.
´ Î
Event log 2. Press or until Event Log option
appears.
3. Press ENTER to display Event Log.
Î
4. Press to page back through Event Log
´
entries or to page forward.
5. When finished, press NEXT.
To Clear
1. Stop the pump.
milliliters Given
2. Press NEXT repeatedly until Milliliters
Given screen appears.
3. Press ENTER to clear and update date
and time.
To Print reports 1. Turn printer on.
2. Connect printer cable to data in/out jack
• Rx Setting
and to back of printer.
• Event Log
3. If necessary, press
Printing
appears.
4. Press ENTER.
´ Î
5. Press or to select desired report.
6. Press ENTER.
7. When report is finished, detach printer
cable from pump.
AlArms & TroUBlEsHooTinG
The CADD-Prizm pump signals with audible alarms and
messages on the display when a condition requires your
attention. in addition to referring to this table, use the ? key
while the alarm is occurring for information about the alarm and
corrective action.
reservoir
Level of fluid in the reservoir is low. Prepare to
Volume low
install a new reservoir.
reservoir Reservoir Volume is 0.0 ml. Press NEXT to stop
Volume Zero alarm. Install new reservoir if appropriate.
9-volt battery is low but pump is operable.
9-volt
Change battery soon.
Battery low
9-volt Battery
9-volt battery is depleted and cannot operate
Depleted
pump; install fresh battery immediately.
High Pressure
Possible blockage downstream (between pump
and patient), clamp, or kink in fluid path. Find
cause and remove blockage to continue. Or,
press STOP/START to stop pump and silence
alarm; remove blockage and restart pump.
Upstream
Fluid is not flowing from the reservoir to the
occlusion
pump. Check for a kink, a closed clamp or an
(model 6101
air bubble in tubing between reservoir and
only)
pump. Press STOP/START to silence alarm for
two minutes; remove obstruction and restart
pump.
Error Detected
Pump fault occurred. Close tubing clamp,
remove pump from service.
AlArms & TroUBlEsHooTinG
Air in line
Detected
3 Beeps Every
5 minutes;
stopped
on main
screen
Dose
scheduled
to start in —
minutes / start
the Pump
Dose
´
until
scheduled to
start is now
overdue/start
the Pump
WArninG: This Quick reference Card should be used by
clinicians only. Do not permit patients to have access to this card,
as the information would allow access to all programming and
operating functions.
smiths medical AsD, inc.
St. Paul, MN 55112, USA
Phone: 1-214-618-0218
Toll-Free USA: 1-800-258-5361
smiths medical Canada ltd.
Markham, Ontario, Canada, L3R 4Y8
Phone: 905-477-2000
Toll-Free: 1-800-387-4346
www.smiths-medical.com
smiths medical is part of the global technology business smiths Group plc.
Product(s) described may not be licensed or available for sale in Canada or other
countries outside of the United States.
CADD, CADD-Prizm, Medication Cassette Reservoir Design and the Smiths Medical
and CADD design marks are trademarks of Smiths Medical. The symbol ® indicates
the trademark is registered in the U.S. Patent and Trademark Office and certain other
countries. ©2010 Smiths Medical. All rights reserved.
Continued
Air in fluid path. Press NEXT to silence alarm.
Make sure tubing is threaded in Air Detector
properly. If fluid path contains air, close
clamps, disconnect from patient, and prime
fluid path.
Pump is stopped. Start pump if appropriate.
Pump is stopped, but a dose is scheduled to be
delivered in the number of minutes indicated.
In order for the dose to be delivered, you must
start the pump.
Pump is stopped, but a dose is overdue for its
scheduled delivery. In order for the dose to be
delivered, you must start the pump.
EC Authorized representative
Smiths Medical international Ltd.
WD24 4LG, UK
Phone: +44 (0) 1923 246434
9/10 IN19812

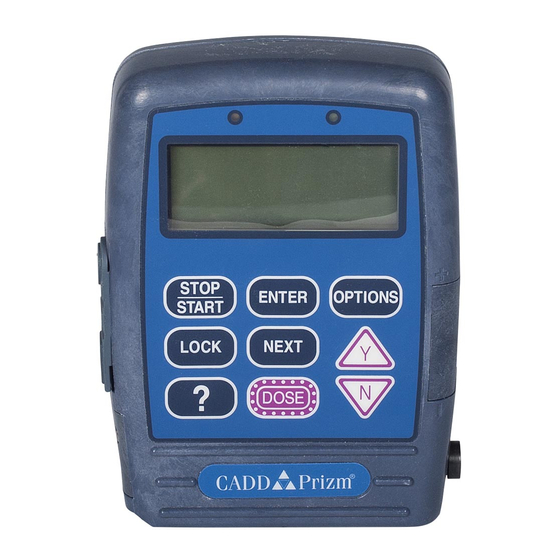

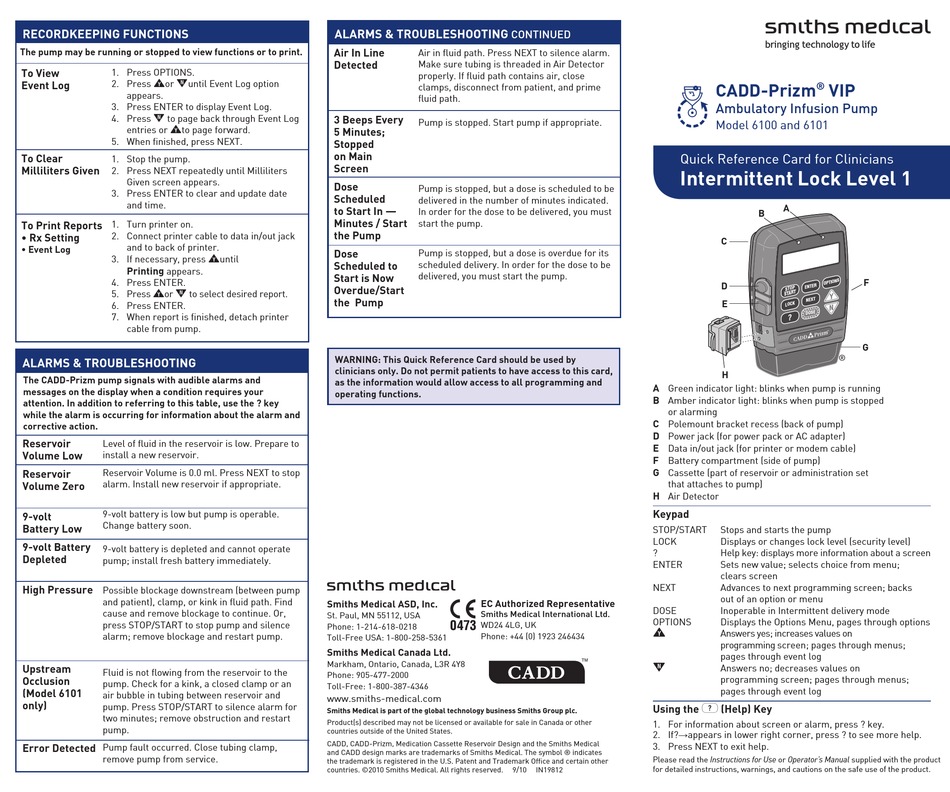

CADD-Prizm ® ViP
Ambulatory infusion Pump
Model 6100 and 6101
Quick Reference Card for Clinicians
intermittent lock level 1
A
B
C
D O P TI O
EN TE R
S TO P
S TA R T
Y
N EX T
E
LO C K
N
D O S E
?
H
A
Green indicator light: blinks when pump is running
B
Amber indicator light: blinks when pump is stopped
or alarming
C
Polemount bracket recess (back of pump)
D
Power jack (for power pack or AC adapter)
E
Data in/out jack (for printer or modem cable)
F
Battery compartment (side of pump)
G
Cassette (part of reservoir or administration set
that attaches to pump)
H
Air Detector
Keypad
STOP/START Stops and starts the pump
LOCK Displays or changes lock level (security level)
? Help key: displays more information about a screen
ENTER Sets new value; selects choice from menu;
clears screen
NEXT Advances to next programming screen; backs
out of an option or menu
DOSE Inoperable in Intermittent delivery mode
OPTIONS Displays the Options Menu, pages through options
´
Answers yes; increases values on
programming screen; pages through menus;
pages through event log
Î
Answers no; decreases values on
programming screen; pages through menus;
pages through event log
Using the Å (Help) Key
1. For information about screen or alarm, press ? key.
2. If?→appears in lower right corner, press ? to see more help.
3. Press NEXT to exit help.
Please read the Instructions for Use or Operator's Manual supplied with the product
for detailed instructions, warnings, and cautions on the safe use of the product.
