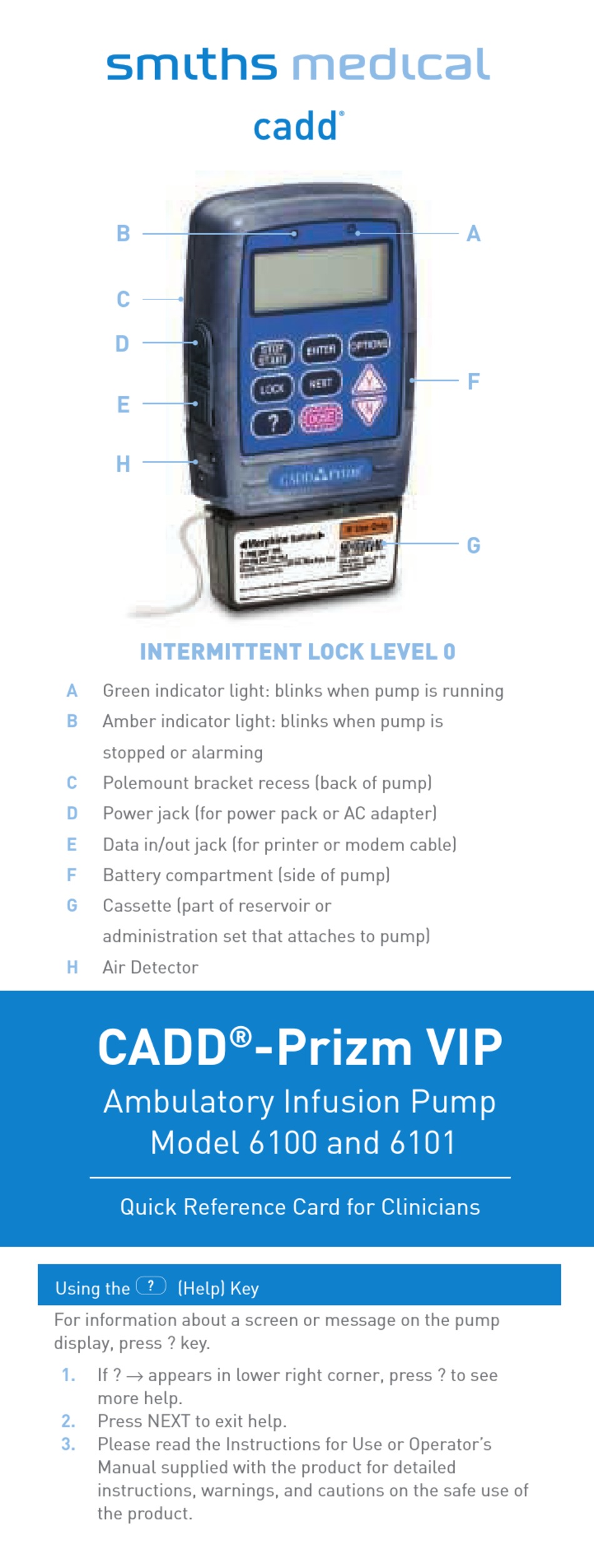

INTERMITTENT LOCK LEVEL 0
A
Green indicator light: blinks when pump is running
B
Amber indicator light: blinks when pump is
stopped or alarming
C
Polemount bracket recess (back of pump)
D
Power jack (for power pack or AC adapter)
E
Data in/out jack (for printer or modem cable)
F
Battery compartment (side of pump)
G
Cassette (part of reservoir or
administration set that attaches to pump)
H
Air Detector

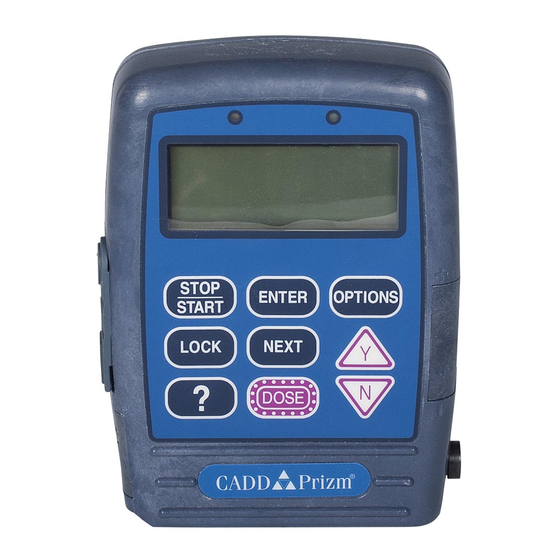

CADD
Ambulatory Infusion Pump
Model 6100 and 6101
Quick Reference Card for Clinicians
Using the
Å
For information about a screen or message on the pump
display, press ? key.
1.
If ? → appears in lower right corner, press ? to see
more help.
2.
Press NEXT to exit help.
3.
Please read the Instructions for Use or Operator's
Manual supplied with the product for detailed
instructions, warnings, and cautions on the safe use of
the product.
-Prizm VIP
®
(Help) Key
A
F
G
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Smiths Medical CADD Prizm VIP
Summary of Contents for Smiths Medical CADD Prizm VIP
- Page 1 INTERMITTENT LOCK LEVEL 0 Green indicator light: blinks when pump is running Amber indicator light: blinks when pump is stopped or alarming Polemount bracket recess (back of pump) Power jack (for power pack or AC adapter) Data in/out jack (for printer or modem cable) Battery compartment (side of pump) Cassette (part of reservoir or administration set that attaches to pump)
- Page 2 WARNING: This Quick Reference Card should be used by clinicians only. Do not permit patients to have access to this card, as the information would allow access to all programming and operating functions. Keypad STOP/START Stops and starts the pump LOCK Displays or changes lock level (security level)
- Page 3 PROGRAMMING / Setup Sequence (Continued) Enter Next Press ´ or Î to select desired dose Dose Start start time and date, or “immediate” if Time appropriate. Press ENTER. Verify the start time and press ´ if correct. To re-enter the start time, press Î.
- Page 4 Pump Operations (Continued) To View Time Time remaining is the amount of time Remaining remaining to deliver the current dose and dose cycle. Press OPTIONS. Press ´ or Î until Immediate Taper-Down appears. Press ENTER. NOTE: if dashes appear in place of times, the dose has been delayed by the Next Dose start Time.
- Page 5 Changing the Cassette To Remove Stop the pump. Used Close all tubing clamps. Cassette If necessary, use key to unlock used cassette. Use side of key or coin to unlatch used cassette. Disconnect tubing from patient. Remove and discard used cassette. To Attach Close tubing clamp.
-
Page 6: Alarms And Troubleshooting
Priming the Fluid Path Using the Prime Option The priming feature is available either: when you attach a cassette (above), or in the Options Menu. To access the Prime option in the Options menu: Pump must be in LL0 or LL1. Stop the pump. - Page 7 Alarms & Troubleshooting (Continued) 9-volt 9-volt battery is low but Battery Low pump is operable. Change battery soon. 9-volt Battery 9-volt battery is depleted and Depleted cannot operate pump; install fresh battery immediately. High Pressure Possible blockage downstream (between pump and patient), clamp or kink in fluid path.
- Page 8 Find your local contact information at www.smiths-medical.com/customer-support Smiths Medical is part of the global technology business smiths group plc. CADD, CADD-Prizm, Medication Cassette Reservoir Design and the Smiths Medical design mark are trademarks of Smiths Medical. The symbol ® indicates the trademark is registered in the U.S.
