Page 1

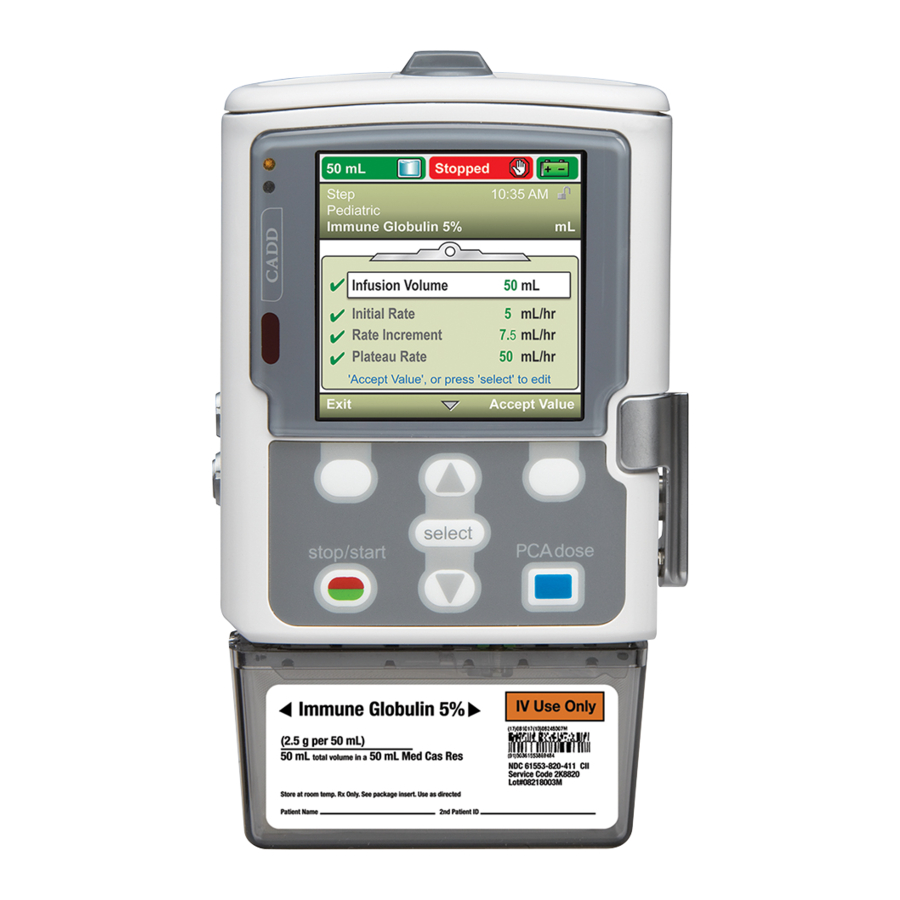

CADD -Solis VIP ® Ambulatory Infusion Pump Quick Reference Card for Clinicians Battery Compartment Remote Dose Cord Jack Display Keypad Indicator Lights Cassette Latch USB Port J Cassette/Keypad Lock Blue AC Power Light K Power Switch AC Power Jack...
Screensaver The screensaver allows the pump to conserve battery power when not in an edit mode or if no keypad buttons have been pressed for 30 seconds. The pump displays a blank screen. Press any button on the keypad to turn on the display, except the PCA dose key when in PCA mode.
Page 3
Setting up the Pump for a New Patient Insert a fresh set of four AA batteries or a rechargeable battery pack Press and hold the power switch to turn the pump on Pump displays the home screen Select Tasks, then View Advanced Tasks, then Start New Patient The next screen informs you that completing this task will overwrite all delivery settings...
Page 4
Editing Individual Delivery Settings The delivery settings are patient-specifi c parameters of a therapy that are directly related to the drug being infused and can be edited within limits established in the protocol. To view and edit delivery settings: Stop the pump if it is running In the Tasks menu, press ...
Removing a Cassette Make sure the pump is stopped and clamp the tubing If the cassette is locked, insert the pump key and the turn the lock counterclockwise into the unlocked position Push down on the cassette latch until the cassette detaches Resetting the Reservoir Volume After attaching a new cassette...
Page 6
Reports Reports can be viewed at any time, with the pump running or stopped. In the Tasks menu, press 100 mL Stopped or to highlight View Continuous 10:28 AM 8 Hour-Hydration Reports and press Select D5-0.45% NaCI 1000mL Tasks Press ...
Page 7
Alarms System Fault Alarm An unrecoverable error may have occurred, such as a hardware or software fault. The amber indicator light is on along with a two-tone alarm and a red screen. To clear the alarm, remove power from the pump. High Priority Alarm The pump pauses or stops if it is running.
Troubleshooting Screen is blank and alarm is sounding Alarm Priority High. The pump was delivering and the batteries were removed or the battery door was opened. The pump has lost power and is no longer delivering. Clear the alarm by turning the pump back on, or the alarm will stop after the power has been off for a minimum of two minutes.
Page 9
Troubleshooting continued Reservoir volume is zero. Pump stopped. Alarm Priority High. The reservoir volume has reached 0.0 mL. The pump will stop and not run. Select Acknowledge to clear the alarm. Attach a new reservoir and reset or edit the value of the reservoir volume, if appropriate.
Page 10
Smiths Medical is part of the global technology business Smiths Group plc. Product(s) described may not be licensed or available for sale in all countries. CADD and the Smiths Medical design mark are trademarks of Smiths Medical. The symbol ® indicates the trademark is registered in the U.S. Patent and Trademark Office and certain other countries.
