www.ti.com
3.2 ADCx120EVM GUI Installation
3.2.1 Software Setup
Open the PPC3 application in the directory chosen for the GUI installation in
resulting app center window. Click on the TLV320ADCx120 app tile.
The TLV320ADCx120 GUI is designed to work with up to four devices at any time. As shown in
choose the 1 device radial button and click New.
SBAU359A – MAY 2019 – REVISED JUNE 2021
Submit Document Feedback

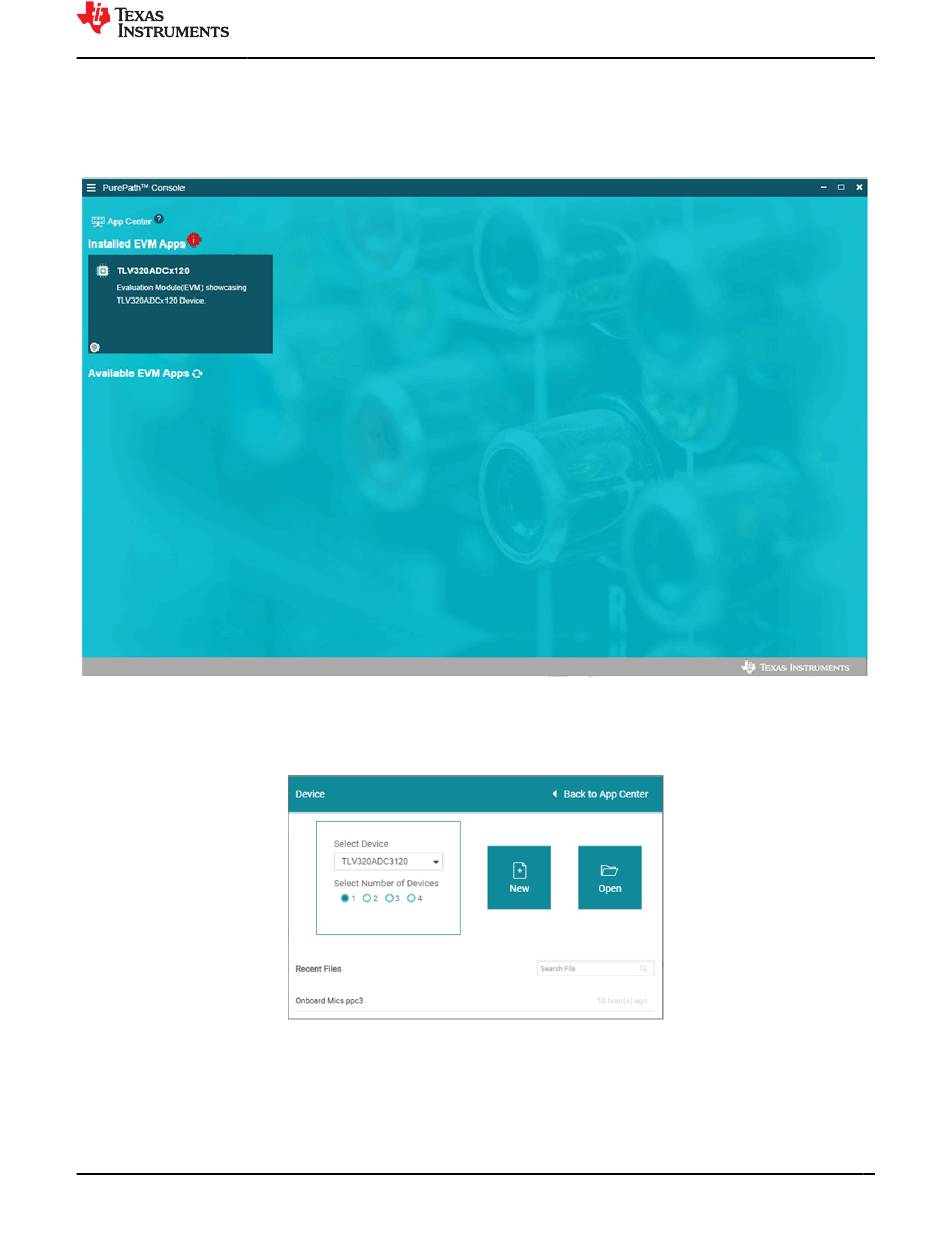

Figure 3-2. PurePath Console 3 App Center
Figure 3-3. Initial GUI Configuration
Copyright © 2021 Texas Instruments Incorporated
Section
3.1.
Figure 3-2
ADCx120EVM-PDK, PCMD3140EVM-PDK Evaluation Module
Software Overview
shows the
Figure
3-3,
13
