4 GPIO1 Settings
The GPIO1 pin can be configured for a variety of different functions.
By default, the EVM is configured with GPIO1 connected to an interrupt LED to match the default GPIO1
configuration of the TLV320ADCx120 device. This setting causes the INTERRUPT LED on the board to light
whenever an IRQ occurs, such as when the VAD is configured to generate an interrupt on voice detection. If
GPIO1 is to be used a function other than interrupt, modifications may be required to the 0-Ω resistors installed.
Figure 4-2
shows a schematic for the GPIO1 pin layout.
SBAU359A – MAY 2019 – REVISED JUNE 2021
Submit Document Feedback

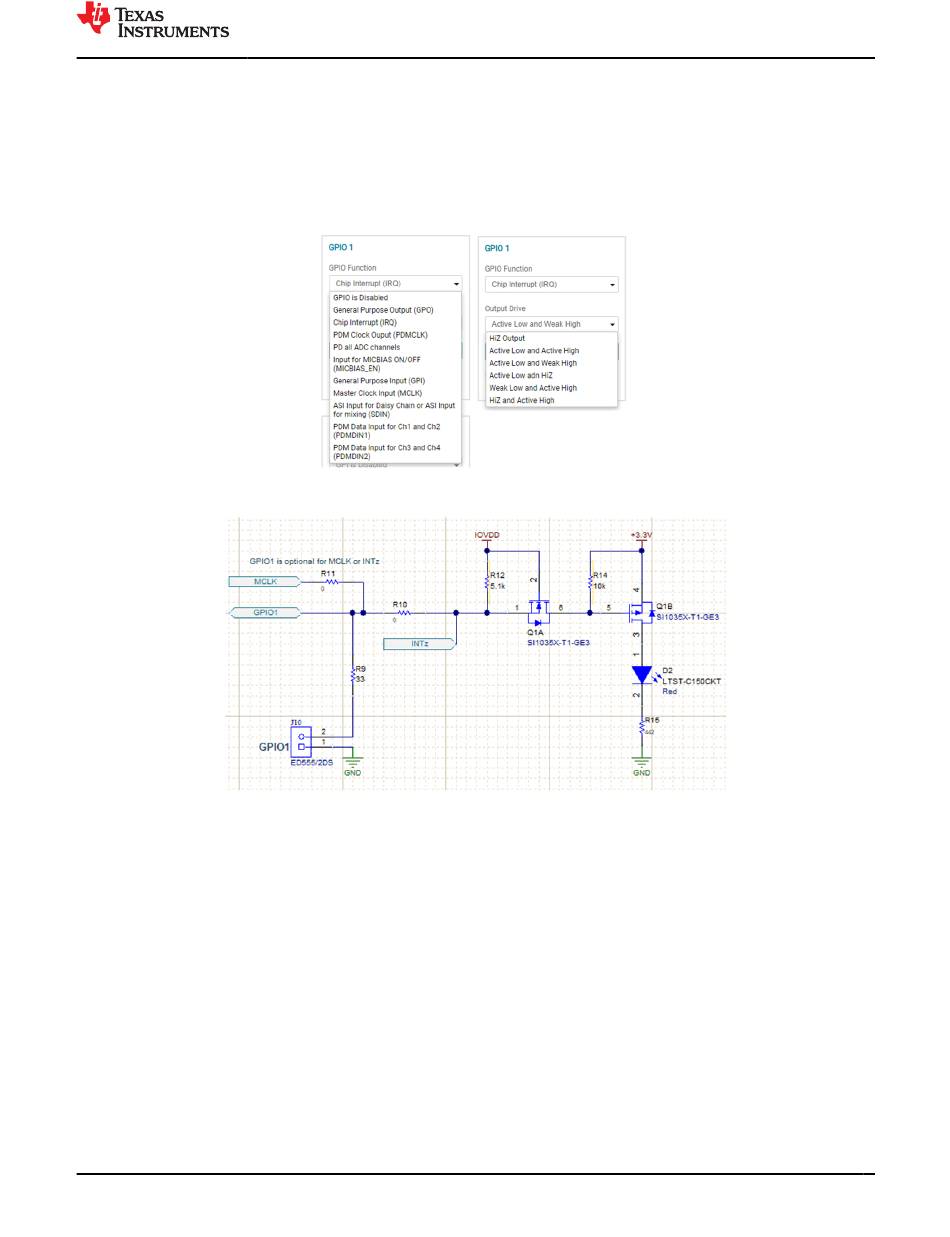

Figure 4-1. GPIO1 Function and Output Drive Settings
Figure 4-2. GPIO1 Schematic
Copyright © 2021 Texas Instruments Incorporated
Figure 4-1
shows the possible settings.
ADCx120EVM-PDK, PCMD3140EVM-PDK Evaluation Module
GPIO1 Settings
15
