www.ti.com
3.2 ADCx120EVM GUI Installation
3.2.1 Software Setup
Open the PPC3 application in the directory chosen for the GUI installation in
resulting app center window. Click on the TLV320ADCx120 app tile.
The TLV320ADCx120 GUI is designed to work with up to four devices at any time. As shown in
choose the 1 device radial button and click New.
SBAU359 – DECEMBER 2020
Submit Document Feedback
TI Information - Selective Disclosure

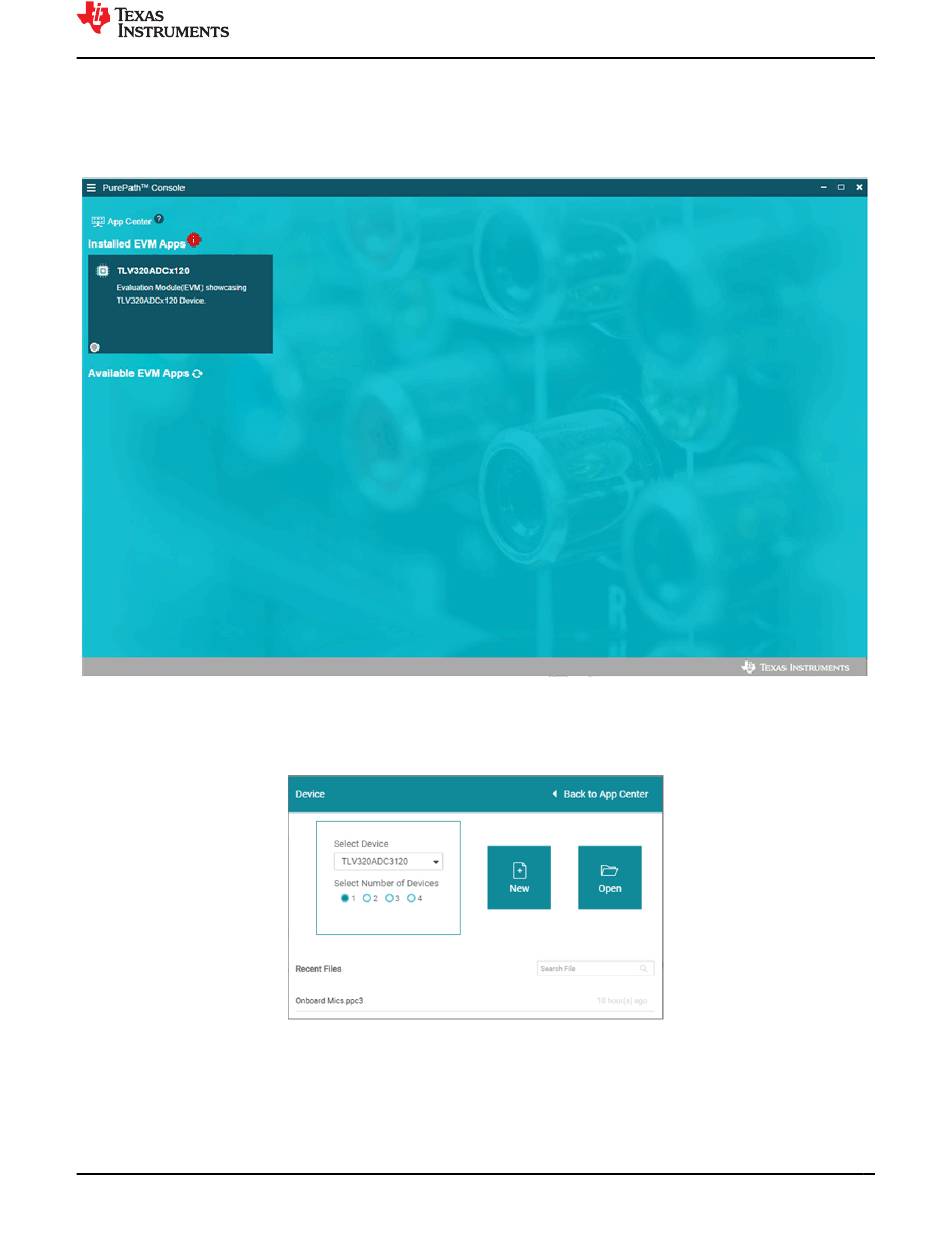

Figure 3-2. PurePath Console 3 App Center
Figure 3-3. Initial GUI Configuration
Copyright © 2021 Texas Instruments Incorporated
Software Overview
Section
3.1.
Figure 3-2
shows the
Figure
ADCx120EVM-PDK
3-3,
13
