The default slot assignment for channel 1 is left slot 0 and the default slot assignment for channel 2 is left slot
1. As shown in
Figure
6-9, change the channel 2 slot assignment to right slot 0. The diagram at the top of the
window updates to display the data format and slots selected.
The AC-MB USB audio currently supports only two channels per data line when in I
FSYNC ratio is fixed at 64. The EVM is now ready for use with the audio recording program of your choice.

6.2 Saving a Configuration

To save a configuration, as shown in
Save. The configuration is saved as a .ppc3 file. To load a saved configuration, click the upper left corner of the
PPC3 window and select Open. Navigate to the location of the saved .ppc3 file, and click Open.
SBAU359A – MAY 2019 – REVISED JUNE 2021
Submit Document Feedback

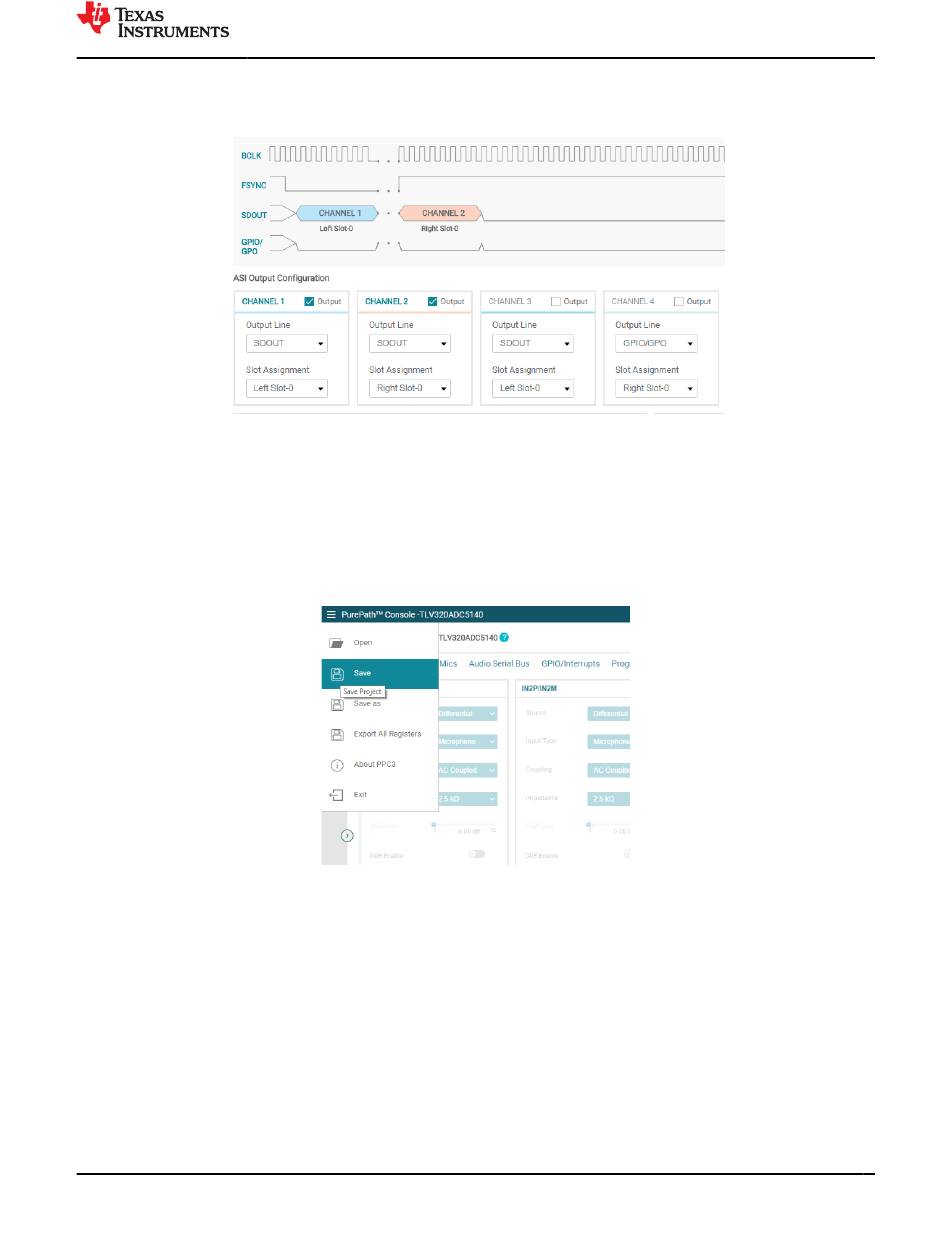

Figure 6-9. Channel Output Configuration and Diagram

Figure
6-10, click the upper left corner of the PPC3 window and select

Figure 6-10. Saving a Configuration in PPC3

Copyright © 2021 Texas Instruments Incorporated
2
S mode and the BCLK and
ADCx120EVM-PDK, PCMD3140EVM-PDK Evaluation Module
