www.ti.com
2.2.1 Line Inputs
For the line input configuration (shown in
through terminals J2 (IN1) and J3 (IN2). The input accepted in this mode is a differential, 2-VRMS, full-scale
audio signal. If a single-ended source is used, then 1-VRMS signal is supported.

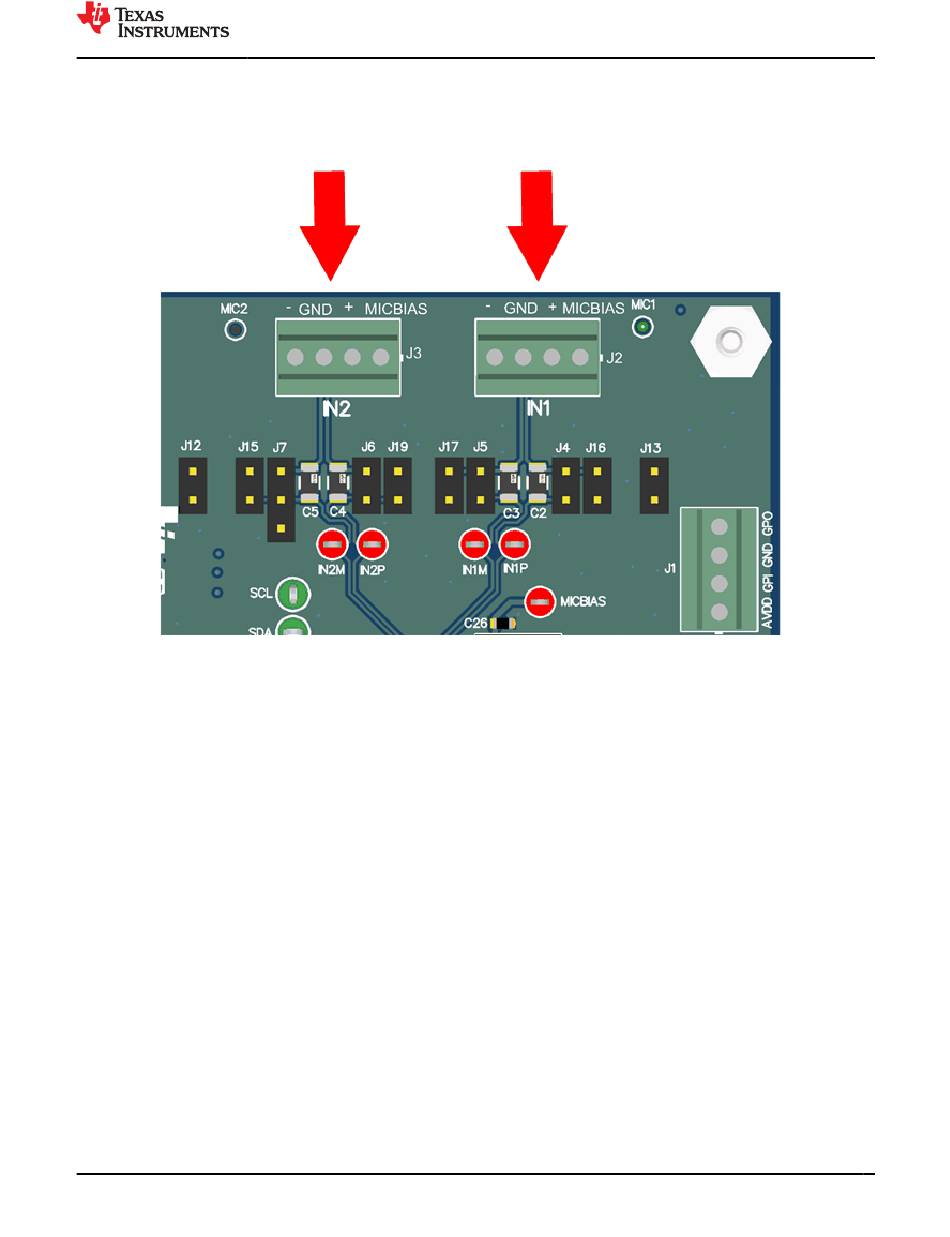

Figure 2-8. TLV320ADCx120EVB Connection for Line Input Application
SBAU359A – MAY 2019 – REVISED JUNE 2021
Submit Document Feedback
Figure
2-8), the TLV320ADCx120 captures the audio signal provided
ADCx120EVM-PDK, PCMD3140EVM-PDK Evaluation Module
Copyright © 2021 Texas Instruments Incorporated
Hardware Overview
7
