Chapter 3 Basic Installation

3.1 Installing the Frame

1) Remove all packaging.
2) Install the frame in the location in which it is to be used.
3) Adjust the feet until the castors are clear of the ground (if fitted) and the frame is level – see Fig. 3.1. Use a suitable
levelling device.

3.2 Fitting the Casters

Referring to Fig. 3.2
1) Push down the lever on each caster to lock the rotation of the wheels on the shaft.
2) Adjust the feet to raise the frame sufficiently to allow the casters to be fitted in the lower support rails.
3) Insert the threaded shaft into the locating hole, and turn the complete caster assembly to screw the shaft into the frame
4) Repeat item (3) for the remaining 3 casters.
5) Retract the feet until the casters are in contact with the ground.
6) Position the ScienceDesk as required.
7) Adjust the feet to level the frame - see Section 3.1.

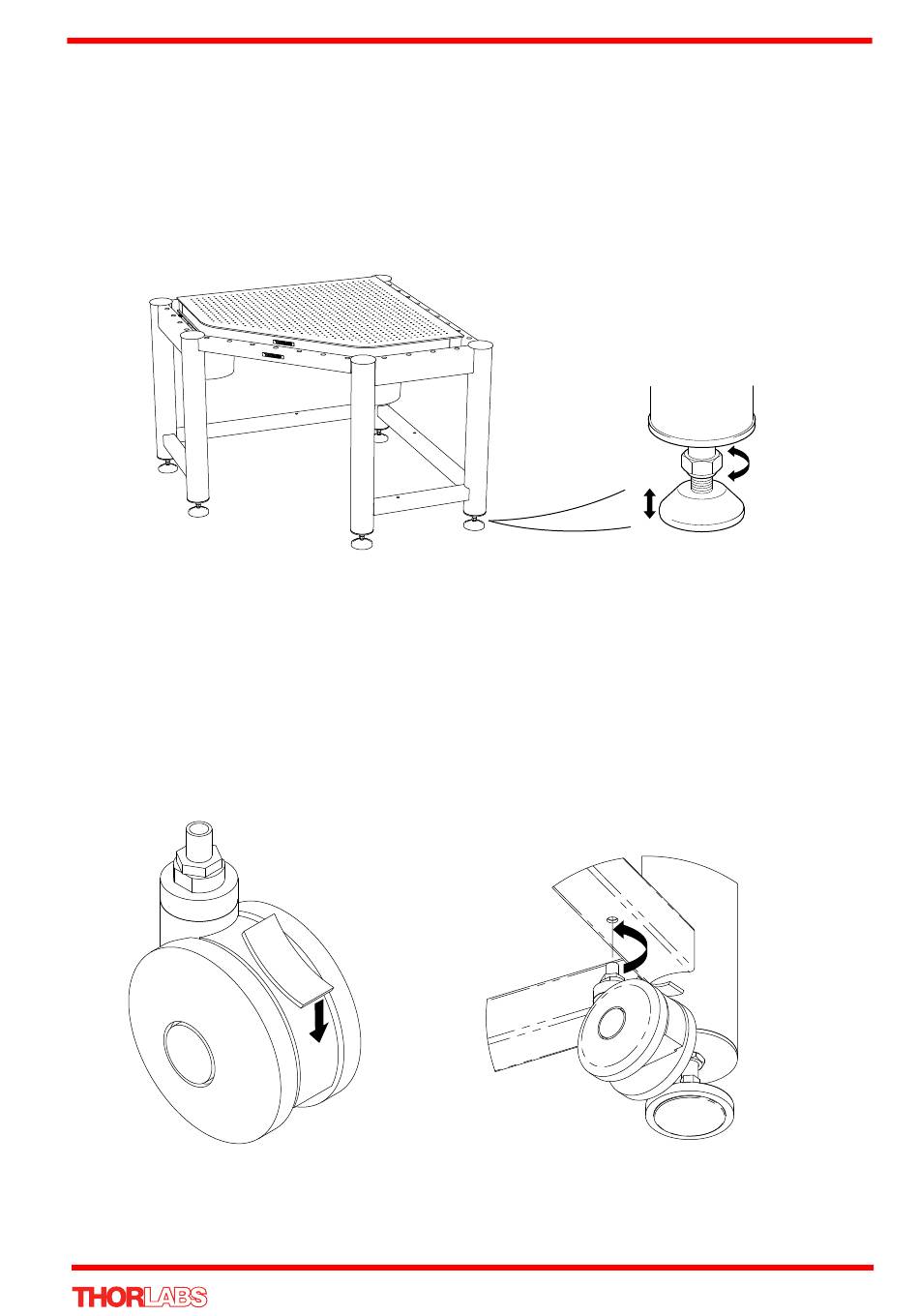

Fig. 3.1 Levelling the frame
Fig. 3.2 Fitting Casters
