3.3 Installing the Breadboard
3.3.1 Rigid Mounts
The breadboard rests on rubber pads, three in each corner of the frame. Levelling of the work surface is acheived by adjusting
the feet.
A Installation
1) Ensure the frame is correctly sited and level – see Section 3.1.
The desk is normally supplied with the anti-vibration mounts and breadboard already fitted. Item (2) is applicable
Breadboards should be manipulated using the lifting handles supplied. If these are not available, use appropriate
Breadboards must be lifted by two people and standard lifting safety precautions must be observed.
2) Fit the lifting handles supplied to the breadboard as shown.
3) Observing the warnings listed above, lift the breadboard into position.
4) Use a suitable levelling device to check the breadboard is level. Repeat Section 3.1. as necessary.
5) Tighten the locknuts on the feet.
During item (6), the total load including the breadboard must not exceed 525 kg (1160 lb).
6) Populate the breadboard.
B Removal
Breadboards should be manipulated using the lifting handles supplied. If these are not available, use appropriate
Breadboards must be lifted by two people and standard lifting safety precautions must be observed.
To remove the breadboard, reverse the installation procedure.
6
only if the unit has been shipped or air-freighted to its destination
lifting equipment.
Breadboards should be lifted only in an unpopulated condition.

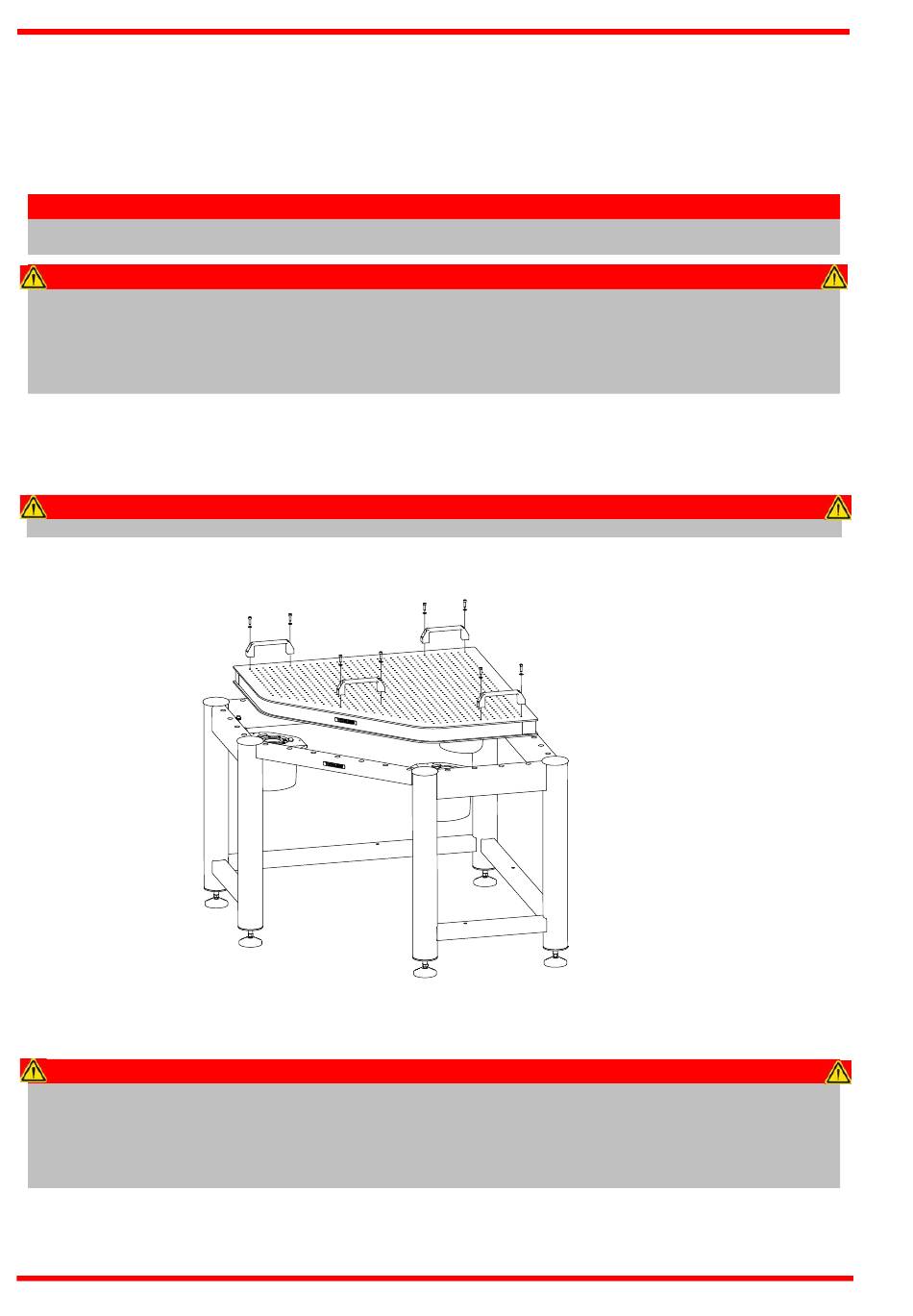

Fig. 3.3 Fitting the breadboard
lifting equipment.
Breadboards should be lifted only in an unpopulated condition.
Note
Warning
During item (2):
Caution
Warning
During item (2):
HA0284T Rev C Dec 2015
