Chapter 3
5) Connect the foot pump to the mount in the back corner and inflate to about 40 p.s.i. – see Fig. 3.5.
6) Inflate the front legs to about 40 p.s.i.
During item (8), the total load including the breadboard must not exceed 525kg (1160 lb)
7) Populate the breadboard.
It may be necessary to inflate each mount to a different pressure due to the loading of the breadboard
8) Further inflate or deflate the mounts until the breadboard is level and a gap of 12mm between the underside of the
breadboard and the top of the mount is obtained – see Fig. 3.6.
9) Fit the dust caps.
8
Caution
Caution
During item 9):
Do not exceed 72 p.s.i.

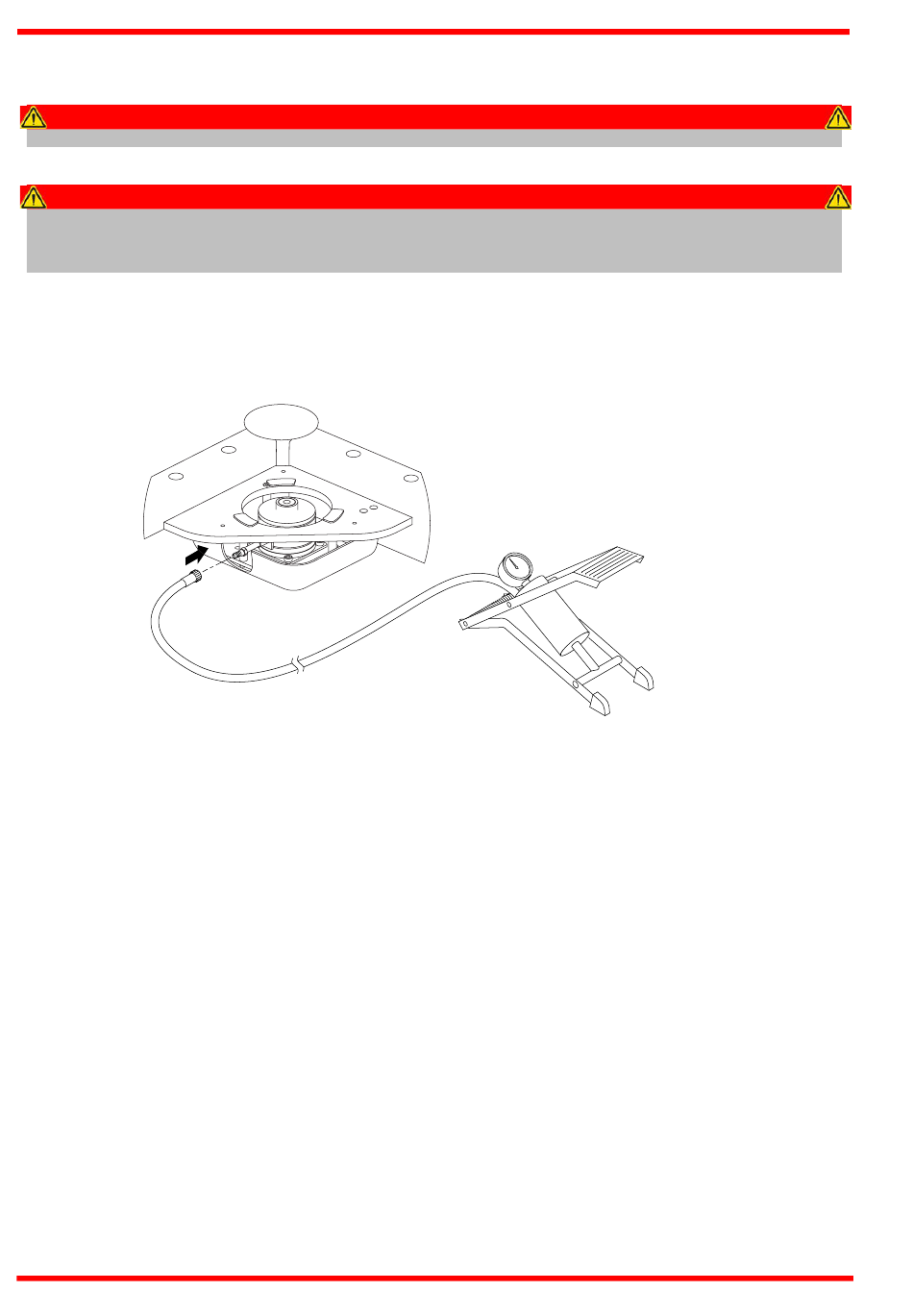

Fig. 3.5 Inflating passive anti-vibration mounts
HA0284T Rev C Dec 2015
