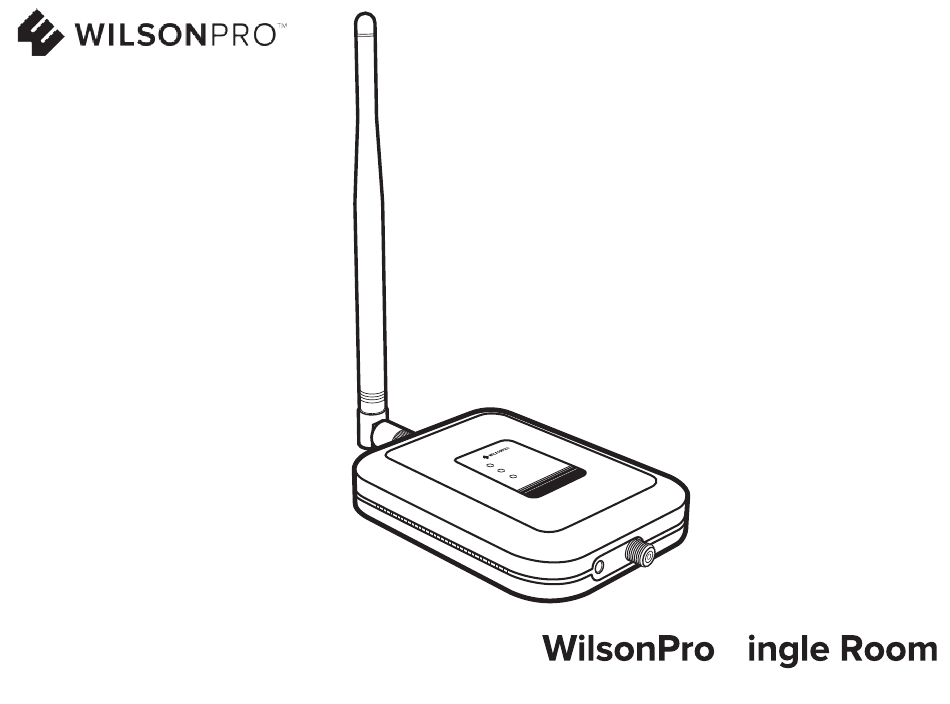

- Page 1 Installation Guide A WILSON ELECTRONICS BRAND Cell Signal Booster...
-
Page 2: Table Of Contents
Index Package Contents ............1 STEP 1 Attach Booster Antenna to Booster &... -
Page 3: Package Contents
Package Contents Outside Antenna & Power L-Bracket Antenna Supply able Mount... -
Page 4: Step 1 Attach Booster Antenna To Booster & Place In Desired Location
STEP 1 Attach Booster Antenna to Booster & Place In Booster Desired Location Antenna Attach the Booster Antenna to the Single Room Single Room Booster and Booster place in room where stronger cell signal is needed. STEP 2 Mount & Point Outside Antenna attach L-Bracket Outside Antenna Toward... - Page 5 (STEP 2 cont.) Point the Outside Antenna toward the nearest cell phone tower. To find the nearest tower, use an app such as ‘Open Signal’. This is the most critical step of the installation process because it will determine the overall performance of the Booster System.
-
Page 6: Step 3 Route & Connect Outside Antenna To Booster
STEP 3 Route & Connect Outside Antenna To Booster Connect the Cable to Outside Antenna and route and connect cable to Booster. All connections should be finger tightened only. STEP 4 Power Up The Booster Status Lights will & Optimize The System appear at the top Plug the Power Supply into wall outlet then connect into end of Booster. - Page 7 (STEP 4 cont.) After powering up your system, check to see how your talk, text, and data rates have improved. If more is desired, you can optimize your system. After each rotation, observe Rotate the Outside Antenna in 1/8 turn signal level on your cell phone increments, after each turn, unplug and from the Inside Antenna’s...
-
Page 8: Status Light Patterns
Status Light Patterns Single Room Booster Lights GREEN This indicates that your Single Room Booster is functioning properly and there are no issues with installation. SOLID RED . This is due to a feedback loop condition called oscillation. This is a built in safety feature that causes a band to shut nearby cell tower. - Page 9 (Status Light Patterns cont.) already experiencing the desired signal boost, then no further adjustments are necessary. If you are not experiencing the desired boost in coverage then refer to the Troubleshooting section. BLINKING GREEN, YELLOW This indicates Band has reduced gain. This indicates that one or more of the Booster bands has reduced power due to overload from nearby cell tower.
-
Page 10: Troubleshooting
Troubleshooting FIXING RED LIGHT ISSUES This involves Solid Red & Blinking Green/Red lights. ■ Tighten all cable connections (be sure to handtighten only, do NOT use tools). You may want to undo and redo the connection completely. Unplug and replug in Power Supply. -
Page 11: Safety Guidelines
Safety Guidelines Verify that both the Outside Antenna and the adapter extension cable are connected to the Signal Amplifier before powering up the Signal Amplifier. Use only the Power Supply provided in this package. Use of an incorrect Power Supply may damage your equipment. - Page 12 Antenna Info The following accessories are certified by the to be used with the Cell Signal Boosters. INSIDE ANTENNA INFO Antenna Type BT50206 Omni OUTSIDE ANTENNA INFO Antenna Type BT974884 Directional BT974877 Omni...
-
Page 13: Specifications
Specifications Single Room Cell Signal Booster Model ICASA Connectors Antenna Impedence 50 Ohms Frequency 880-915 / 925-960 1710-1785 / 1805-1880 1920-1980 / 2110-2170 Power output for single cell phone (Uplink) dBm Power output for single cell phone (Downlink) dBm Power Requirements 5 V / 3 A ICASA Each Signal Booster is individually tested and factory set to ensu... - Page 14 Notes 011 749 3085 www.boltontechnical.co.za sales@boltontechnical.co.za...
- Page 15 Notes 011 749 3085 www.boltontechnical.co.za sales@boltontechnical.co.za...
- Page 16 Notes 011 749 3085 www.boltontechnical.co.za sales@boltontechnical.co.za...
-
Page 17: Warranty
1 YEAR WARRANTY WilsonPro Signal Boosters are warranted for one year against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by WilsonPro shall, at its option, either repair or replace the product. - Page 18 A WILSON ELECTRONICS BRAND JT Business Park, 5 Rydal Ln, Longlake, Johannesburg, 1609 011 749 3085 www.boltontechnical.co.za sales@boltontechnical.co.za Copyright © 2020 WilsonPro. All rights reserved.WilsonPro products covered by U.S. patent(s) and pending application(s) GDE000364_001_11.30.20 NOT AFFILIATED WITH WILSON ANTENNA...
