______ Step 1: Select Mounting Location Select mounting location on vehicle. The antenna can be mounted in any CB mount or antenna mounting point on the vehicle. For best performance mount the antenna above the metal cab (it does not need to be above cab wind deflector). Depending on the type of truck, there may be built-in antenna mounting points.
______ Step 2: Assemble The Antenna Once you have determined the best location for the antenna cable from antenna and have determined if Mast Extensions are needed, insert cable through mast. Mast Extension NOTE: Mast Extensions may not be needed depending on your mounting point.
Page 6
______ (STEP 2 cont.) NOTE: The included spring should only be used on shorter masts variations. Antenna 17” run cable through Mast Extension 32” Mast 45” Extension Antenna Spring (can be used optionally) run cable through Mast Extension Antenna Spring Mast Extension (can be used...
______ Step 3: Mount Outside Antenna These are some typical antenna mounting points. If the vehicle does not have built-in mounting points, a three-way mount is included that will work on vehicles with mirror rails. Upper Side Top of mirror Mirror Arm 3-Way Mount on bird perch...
Page 8
______ (STEP 3 cont.) If installing with the Spring, disassemble and reassemble the 3-Way Mount as shown below. Disassemble Remove nut & Resassemble shakeproof washer Side Exit Adapter Side Exit Adapter must be used with Spring Remove bolt & plastic washer Spring Mount disc washer with lip in the DOWN position...
______ Step 4: Mount Inside Antenna Identify a place to mount the In-Vehicle Antenna, either on the side of the seat or on the dash and mount. The location should be at least 18 inches but no more than 36 inches from where the cellular device will be used.
Page 10
______ Step 5: Wiring The Power Supply To Vehicle Battery Use steps below as a draft/template of the general install of the power supply. Before connecting the power supply, disconnect the vehicle battery leads to avoid any electrical shocks during installation. Locate a place where cables are already running through the firewall (rear wall of engine bay) to the inside of the cabin.
Page 11
______ Step 6: Connect Coax Cables To Booster Connect the cable from the Outside Antenna to the port labeled “Outside Antenna” on the Drive X booster. NOTE: Bracket can be used to fasten booster in a specific location if desired. from Outside Antenna Connect the cable from the In-Vehicle Antenna to the port labeled “Inside Antenna”...
Page 12
______ Step 7: Connect Power Supply To Booster Connect the power supply cord to the end of the Drive X labeled “Power.” NOTE: Do NOT connect the power to the Signal Booster until you have connected both cables from the Inside and Outside Antennas. Power Supply CELL SIGNAL BOOSTER DRIVE X OTR FLEET...
______ Light Patterns Solid Green This indicates that your booster is functioning properly and there are no issues with installation. Blinking Red, Then Solid Green This indicates that one or more of the booster bands has reduced power due to a feedback loop condition called oscillation. This is a built in safety feature to prevent harmful interference with a nearby cell tower.
______ Troubleshooting FIXING BLINKING OR SOLID RED ISSUES This section is only applicable if the booster is red or blinking red and you are not experiencing the desired signal boost. Unplug the Booster’s power supply. Relocate the inside and outside antenna further from each other. The objective is to increase the separation distance between them, so that they will not create this feedback condition discussed before.
______ Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. All inside panel and dome antennas must have at least 6’ of separation distance from all active users, and low profile antennas must have at least 1.5’ separation distance from all active users. Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell phone.

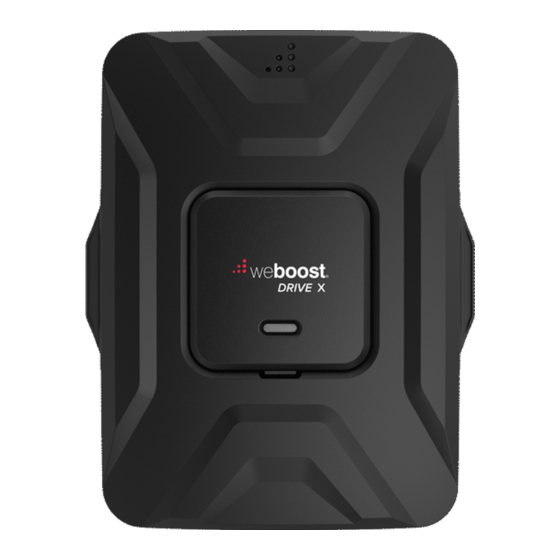

______ Specifications Drive X Product Number U471010 Model Number 460021 FCC ID: PWO460021 Connectors SMA-Female Antenna Impedance 50 Ohms Frequency 699-716 MHz, 729-756 MHz, 777-786 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755 MHz/2110-2155 MHz Maximum Power 700 MHz 700 MHz 800 MHz 1700 MHz 1900 MHz Power output for single cell...
2 YEAR WARRANTY weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase. Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by weBoost.
